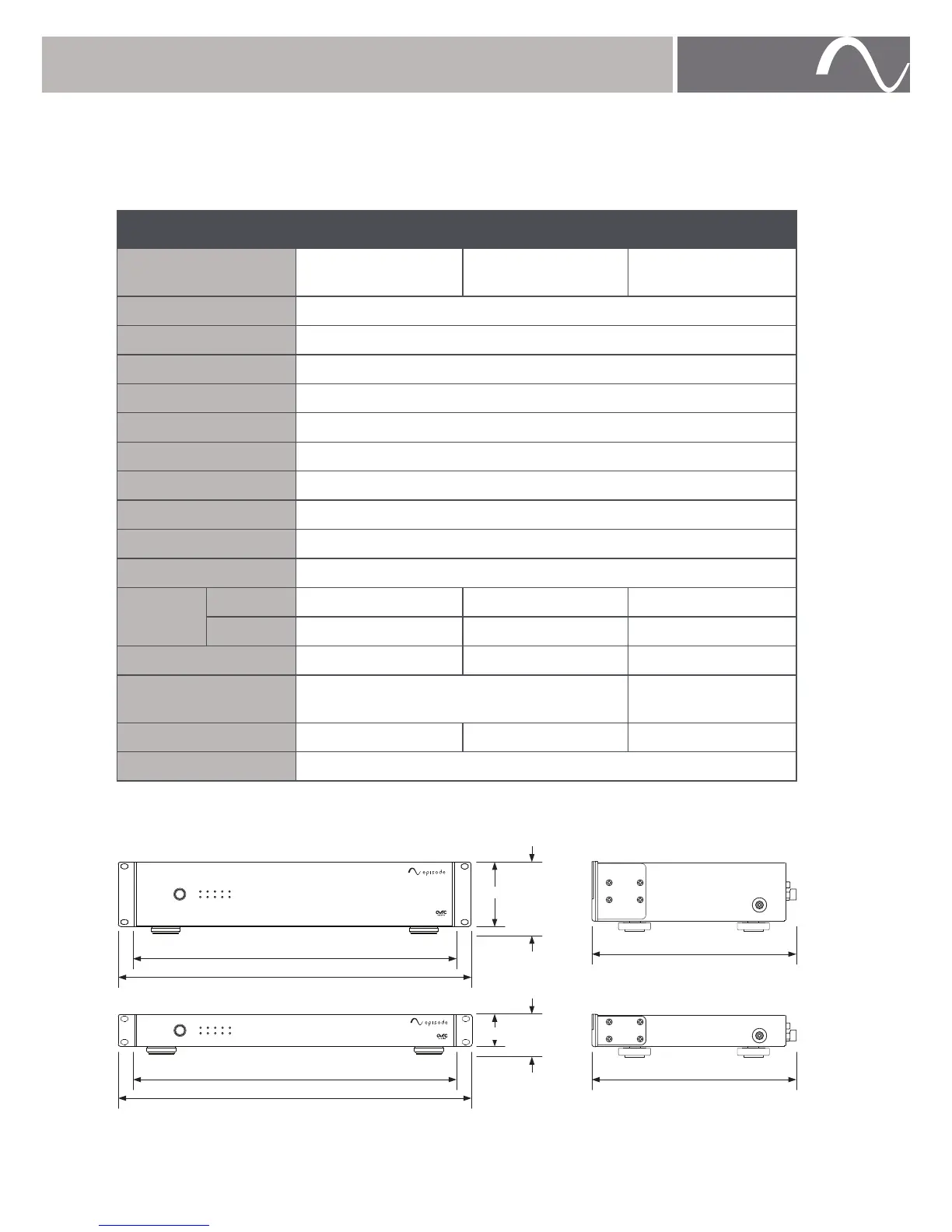

SPECIFICATIONS
ESA-70V2CH-150W ESA-70V2CH-300W ESA-70V2CH-500W
Continuous Power
Output (All Channels)
150w per channel
@ 70V
300w per channel
@ 70V
500w per channel
@ 70V
Inputs per Channel 1 unbalanced (RCA) and 1 balanced (set-screw)
Input Sensitivity 775mV
Input Impedance 10KΩ (unbalanced); 20KΩ ( balanced)
AUTO ON Sensitivity 2.5mV
12 Volt Trigger Input 4.5-12V DC; 10K Ω
12 Volt Trigger Output 12V DC; 10mA
S/N ratio 95db A-weighted
Frequency Response 50 Hz to 20KHz
Distortion 0.1% THD 20 Hz-20 kHz
Input Voltage 115V AC/230V AC
Fuse 115V AC T3.15AL 250V T6.3AL 250V T10AL 250V
230V AC T1.6AL 250V T3.15AL 250V T5AL 250V
Power Consumption 400 watts 800 watts 1200 watts
Dimensions (Inches) 17"W x 1.73"H x 14"D 17"W x 3.49"H x
15”D
Weight 7.8 lbs 13.56 lbs 18.00 lbs
Certification Meets FCC Part 15, UL EN60065
DIMENSIONS
19.00in.
17.00in.
1.73in.
2.10in.
19.00in.
17.00in.
3.49in
3.86in
14.00in.
15.00in.
PROT -30 -20 -10 CLIP
1
2
ECA-70IPAMP-2D-150
PROT -30 -20 -10 CLIP
1
2
ESA-70V2CH-500W

Episode ESA-70V2CH-150W Specifications

General

Power Output	150W
Channels	2
Impedance	4-8 Ohms
Frequency Response	20Hz - 20kHz
Total Harmonic Distortion (THD)	<0.1%
Signal-to-Noise Ratio	>90dB
Input Impedance	10k Ohms
Cooling	Convection
Input Sensitivity	0.775V (0dBu)
