Episode ESA-70V2CH-150W User Manual

page | 9
© 2016 Episode®
Rack Mounting
• Rack mount ears may be removed if not needed.
• Bottom feet on the amplifier chassis may be removed if necessary.
NOTE: Do not place the screws back into the chassis. Without the feet, the length of the
screw may touch internal components and affect the performance of the amplifier.
• Attach the included rack-mount ears to the front sides of the amplifier chassis.
• Securely mount the amplifier into an equipment rack. The amplifier will occupy 1U of
rack space.
• Ensure that the unit is in a well-ventilated area that provides adequate cooling.
• Free air space is required above the amplifier and below the amplifier. The
recommended distance is 1U to 2U, 1.75" to 3.5" being sure to avoid blocking any vents
on the unit’s chassis
POWER 2
1
PROT -20 -10 CLIP-30
ECA-70AMP-2D-300A

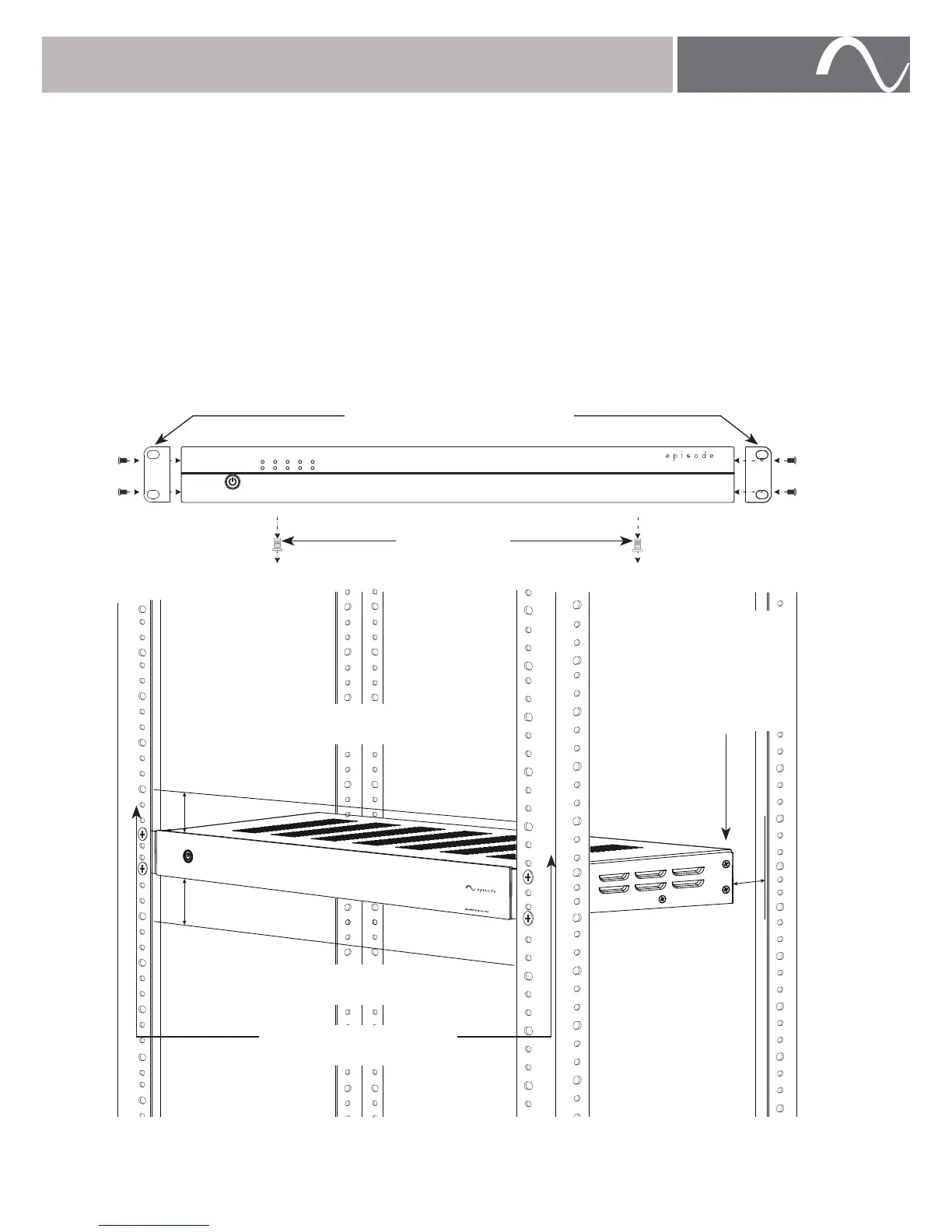

Attach ears using supplied
screws (4 on each side)
Remove Feet
Minimum of 1.75" of free air
space above and below
Minimum of 1.75" of free air
space above and below
Minimum of
2" of depth
behind unit to
accommodate
cables and
connectors
Minimum of 3" free air
space on each side

Episode ESA-70V2CH-150W Specifications

General

Power Output	150W
Channels	2
Impedance	4-8 Ohms
Frequency Response	20Hz - 20kHz
Total Harmonic Distortion (THD)	<0.1%
Signal-to-Noise Ratio	>90dB
Input Impedance	10k Ohms
Cooling	Convection
Input Sensitivity	0.775V (0dBu)
