Assembling the Printer
Installing the ribbon cartridge
Before installing the ribbon cartridge, make sure that the printer is
not plugged into an electrical outlet.
1.

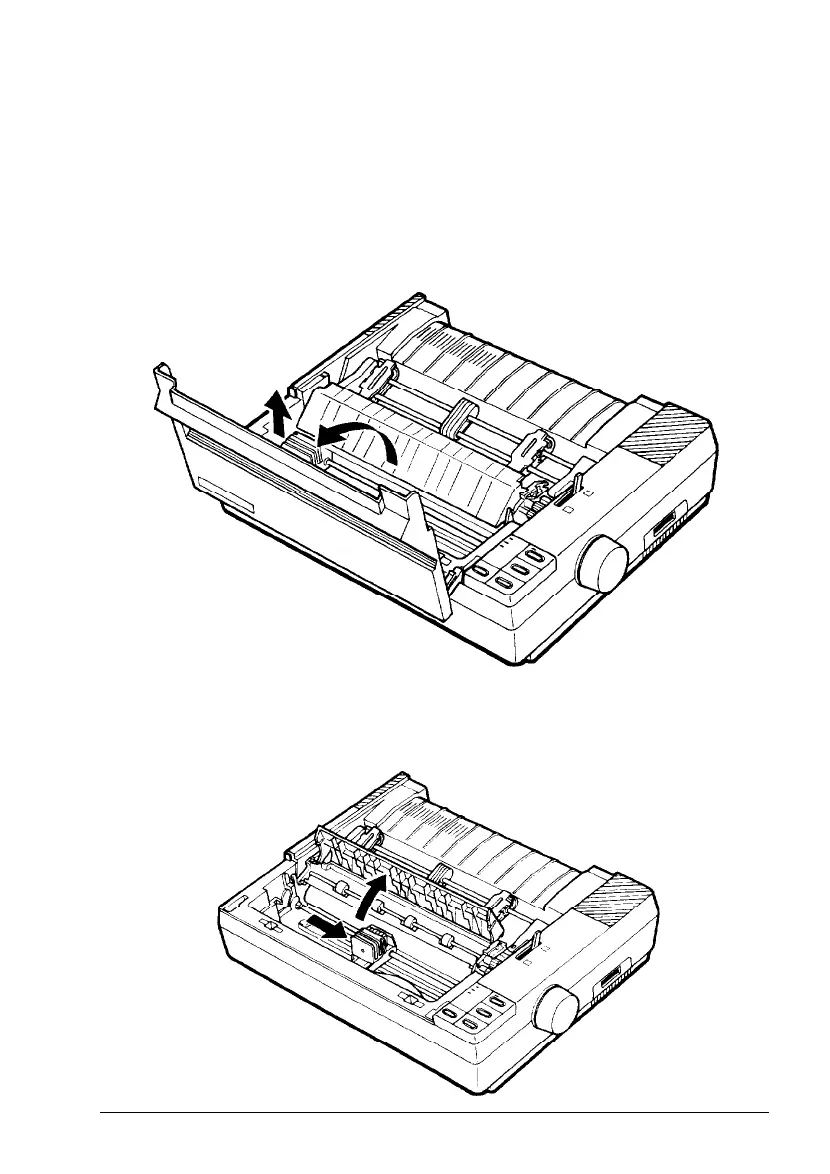

Raise the printer cover to the upright position. Then lift the
cover up and off.
2.
Slide the print head to the middle of the printer. Then open
the paper tension unit cover.
1-6 Setting Up the Printer
