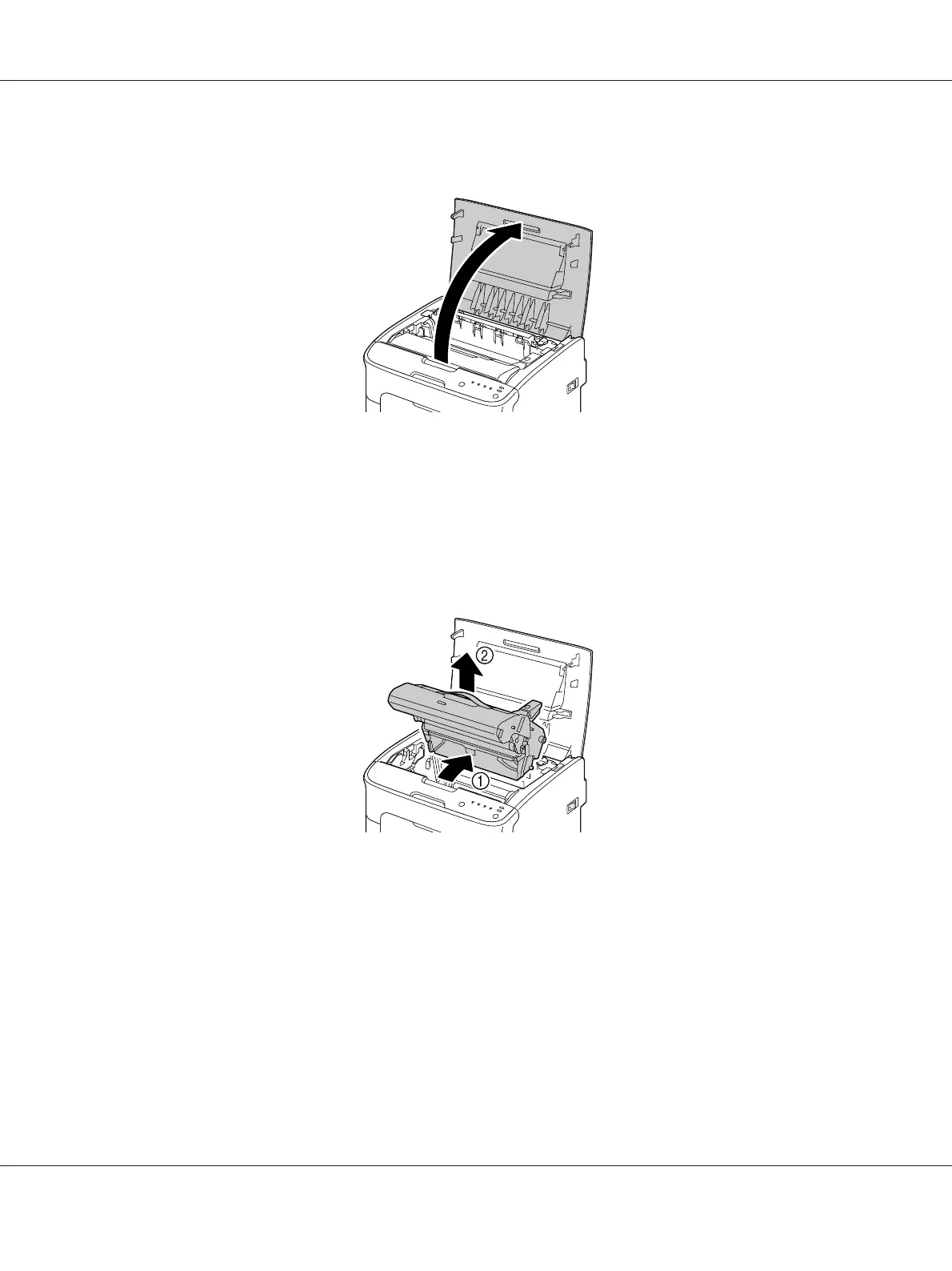

1. Open the top cover.
Note:
If there is paper in the output tray, remove it, and then fold up the output tray before opening the top
cover.
2. Grab the handle and lift it up slightly to the back, and then slowly pull the photoconductor unit out
vertically.
Note:
Dispose of the used photoconductor unit according to your local regulations. Do not burn the
photoconductor unit.
3. Prepare the new photoconductor unit.
AcuLaser C1600 User’s Guide
Replacing Consumables 48
