DISASSEMBLY/ASSEMBLY Disassembly Procedures 169
Confidential

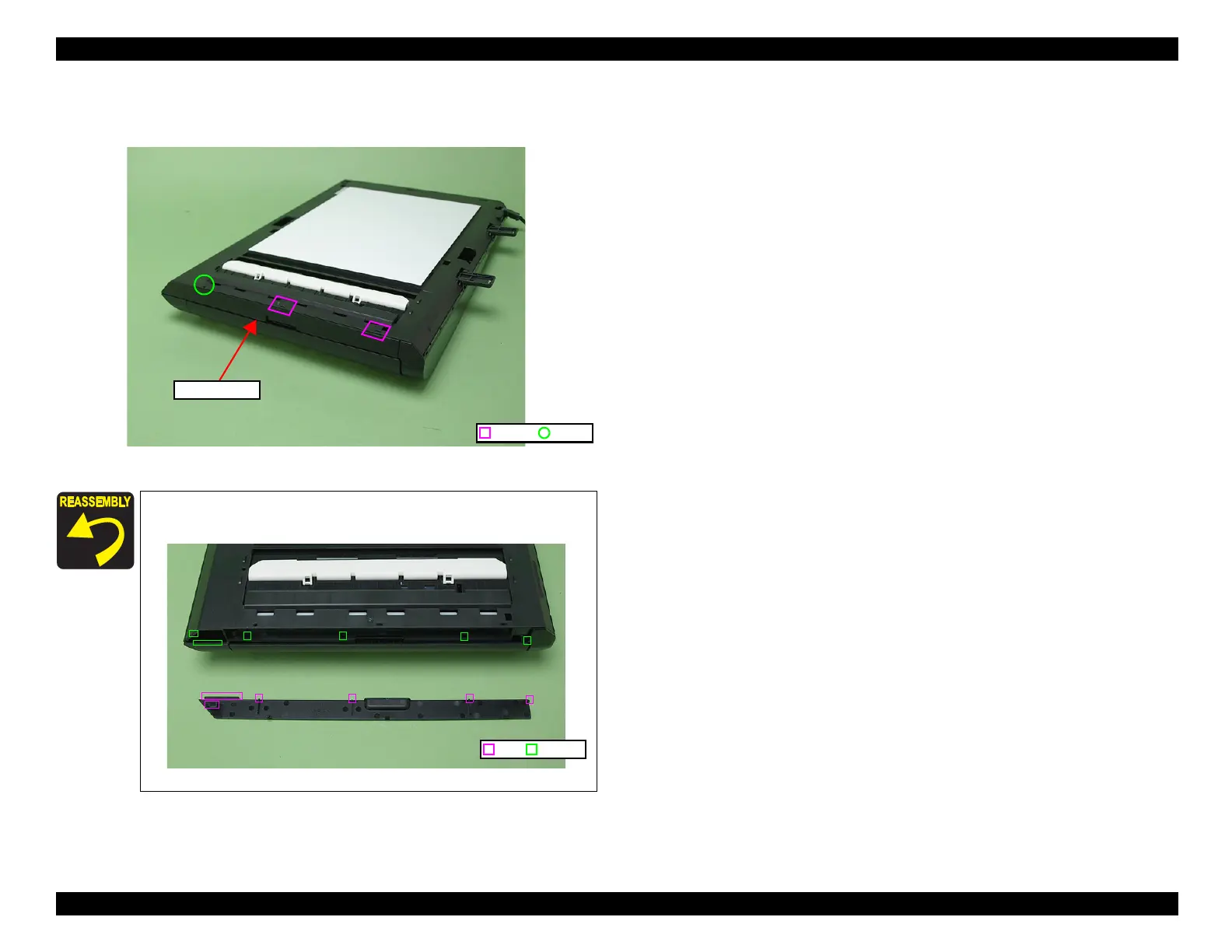

3. Release the hooks (x2) and the dowel (x1) that secure the ADF Cover L, and
remove the ADF Cover L.
Figure 4-131. Removing the ADF Cover L
When installing the ADF Cover L, align the ribs (x5) of the ADF
Cover L with the grooves (x5) of the ADF Base Assy.
Figure 4-132. Installing the ADF Cover L
ADF Cover L
Hook
Dowel
Rib
Groove
