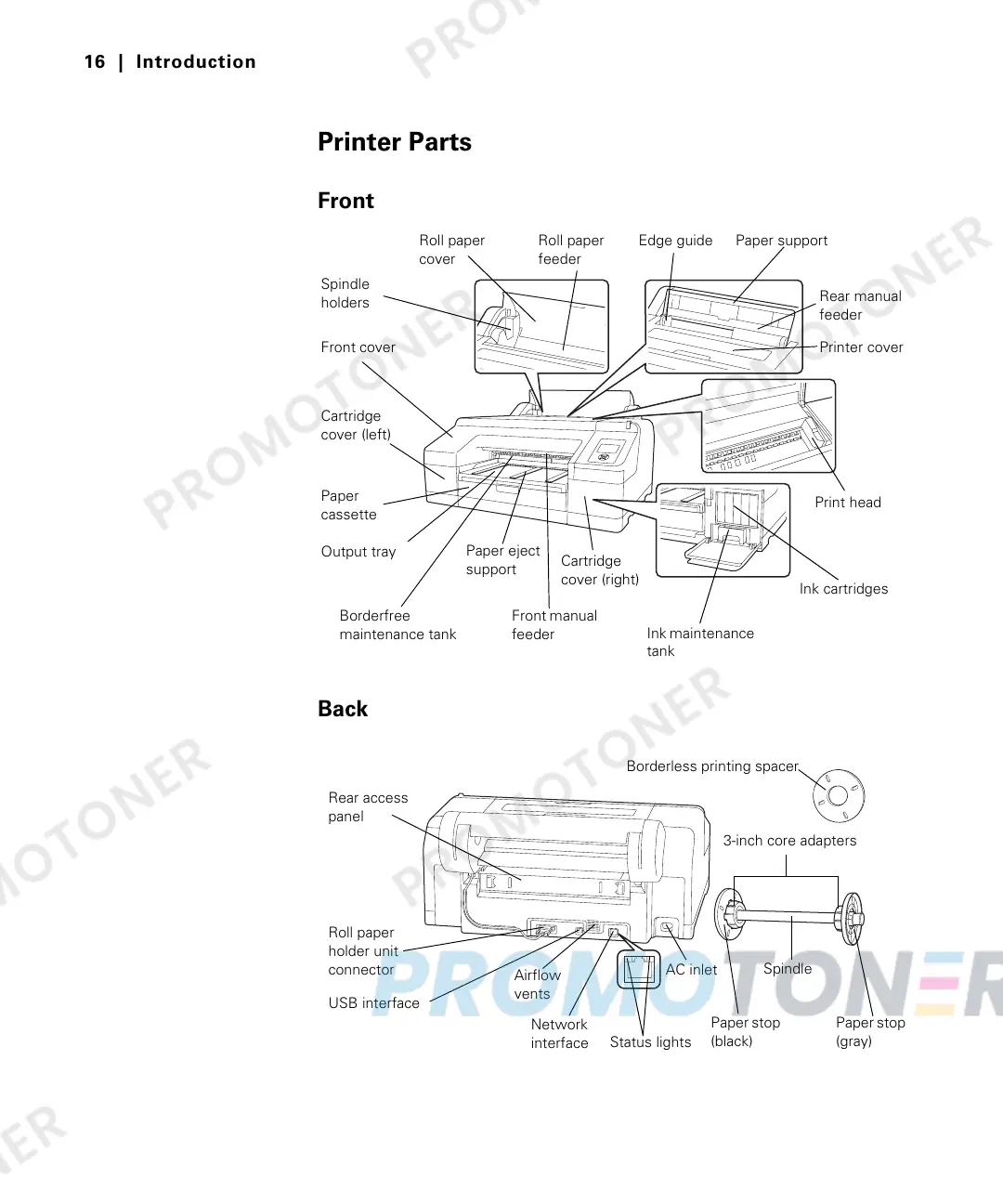

Printer Parts

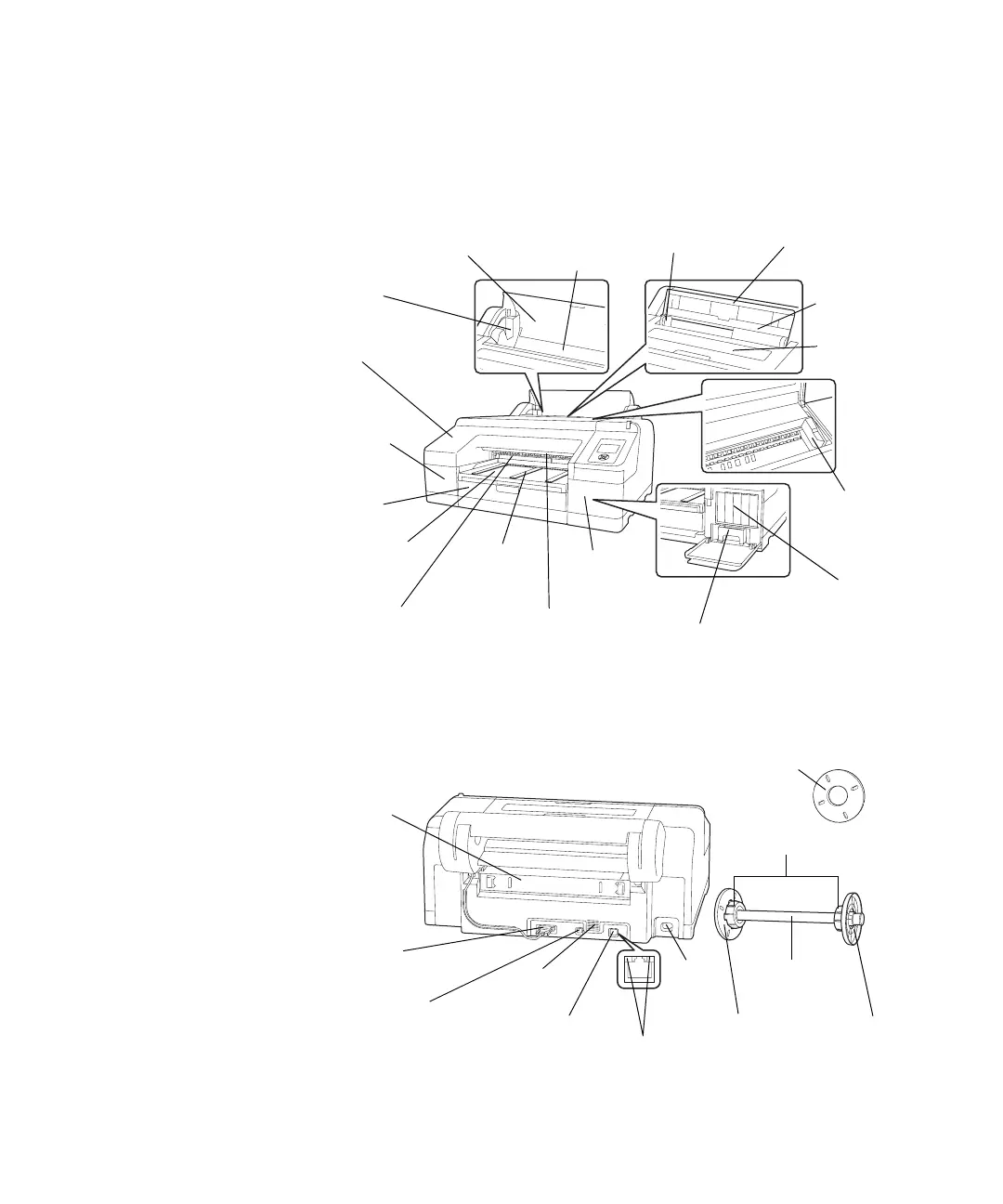

Front
Back
Front cover
Paper
cassette
Roll paper
cover
Cartridge
cover (left)
Output tray
Borderfree
maintenance tank
Paper eject
support
Front manual
feeder
Ink maintenance
tank
Cartridge
cover (right)
Ink cartridges
Print head
Printer cover
Rear manual
feeder
Paper support
Spindle
holders
Edge guideRoll paper
feeder
Rear access
panel
Status lights
Roll paper
holder unit
connector
USB interface
Airflow
vents
Network
interface
AC inlet
Paper stop
(black)
Spindle
3-inch core adapters
Paper stop
(gray)
Borderless printing spacer
