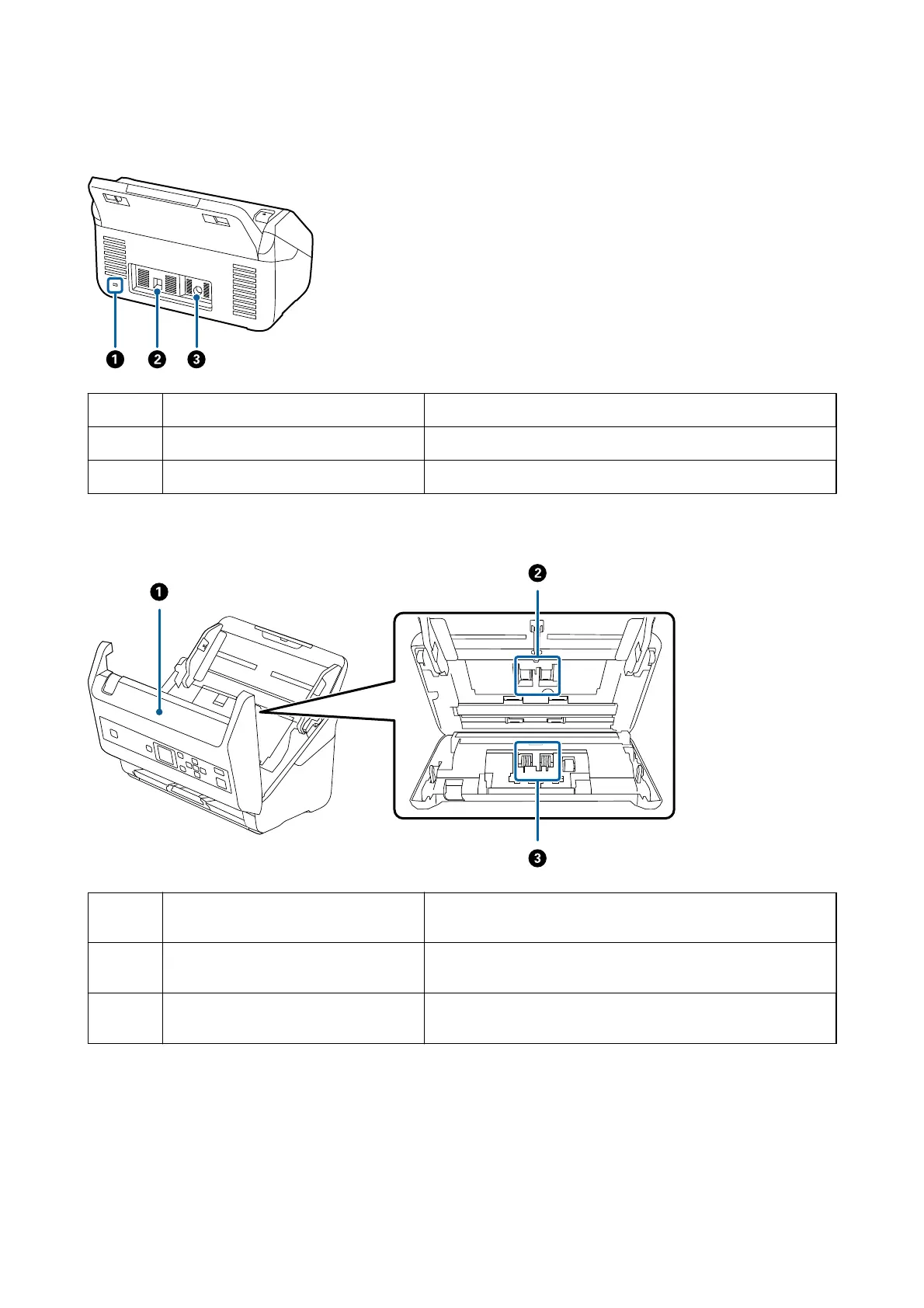

A
Security slot Inserts a security lock for theft prevention.
B
USB port Connects a USB cable.
C
DC inlet Connects the AC adapter.
Inside
A
Scanner cover Pull the lever and open the scanner cover when cleaning inside the
scanner and removing jammed paper.
B
Pickup roller Feeds originals. This needs to be replaced when the number of
scans exceeds the service number of papers.
C
Separation roller Feeds originals separately one by one. This needs to be replaced
when the number of scans exceeds the service number of papers.
Related Information
& “Cleaning Inside the Scanner” on page 102
& “Replacing the Roller Assembly Kit” on page 107
User's Guide
Scanner Basics
