Installation Guide
18

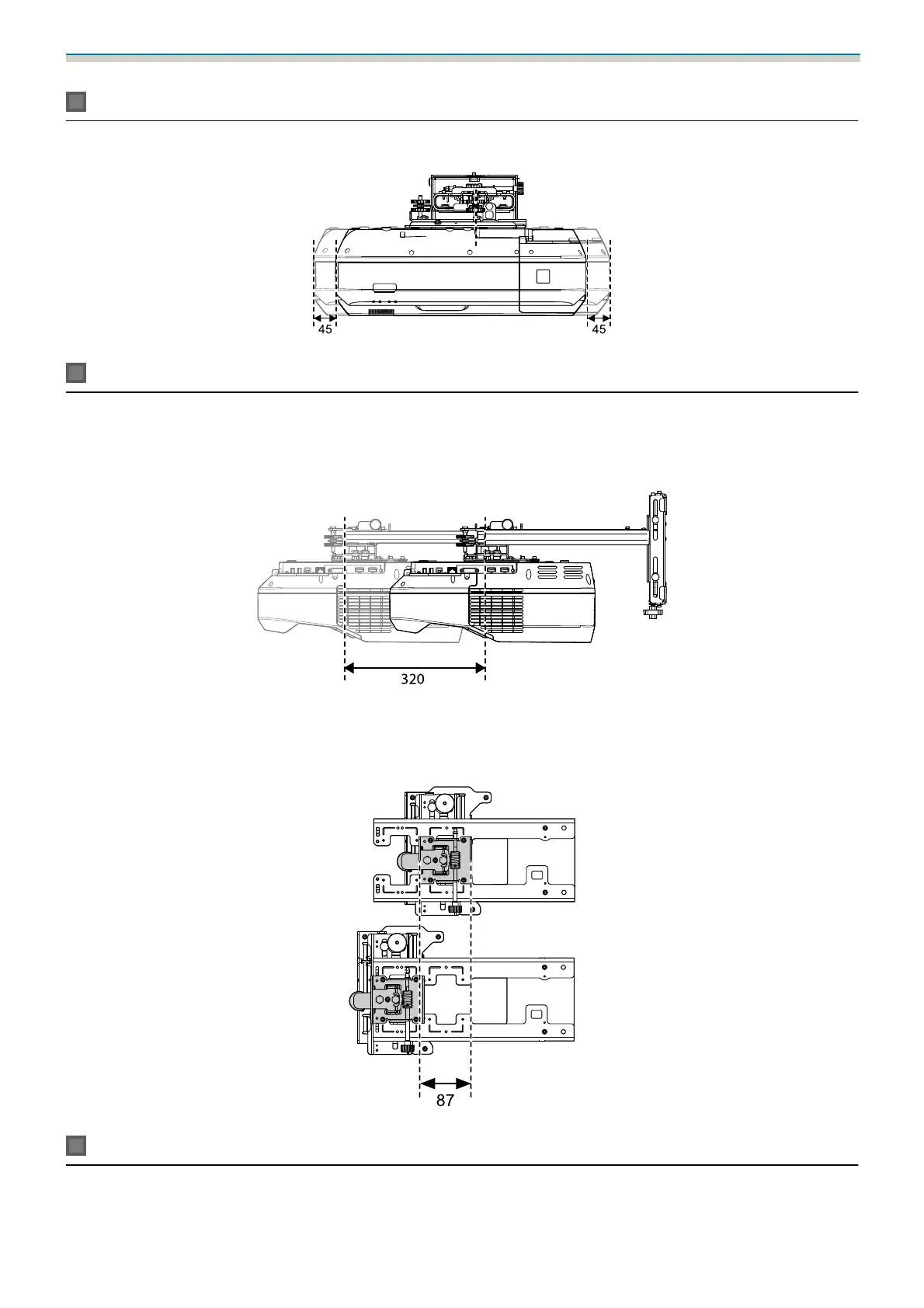

Horizontal slide adjustment range
[Unit: mm]
Forward/backward slide adjustment range
Arm slide adjustment range
[Unit: mm]
Adjustment range for 3-axis adjustment unit installation position
[Unit: mm]
Position for installing accessories
These screw holes allow you to secure peripheral devices and accessories such as external tuners. Use
commercially available M4 screws.
[Unit: mm]
