Installation Guide
22

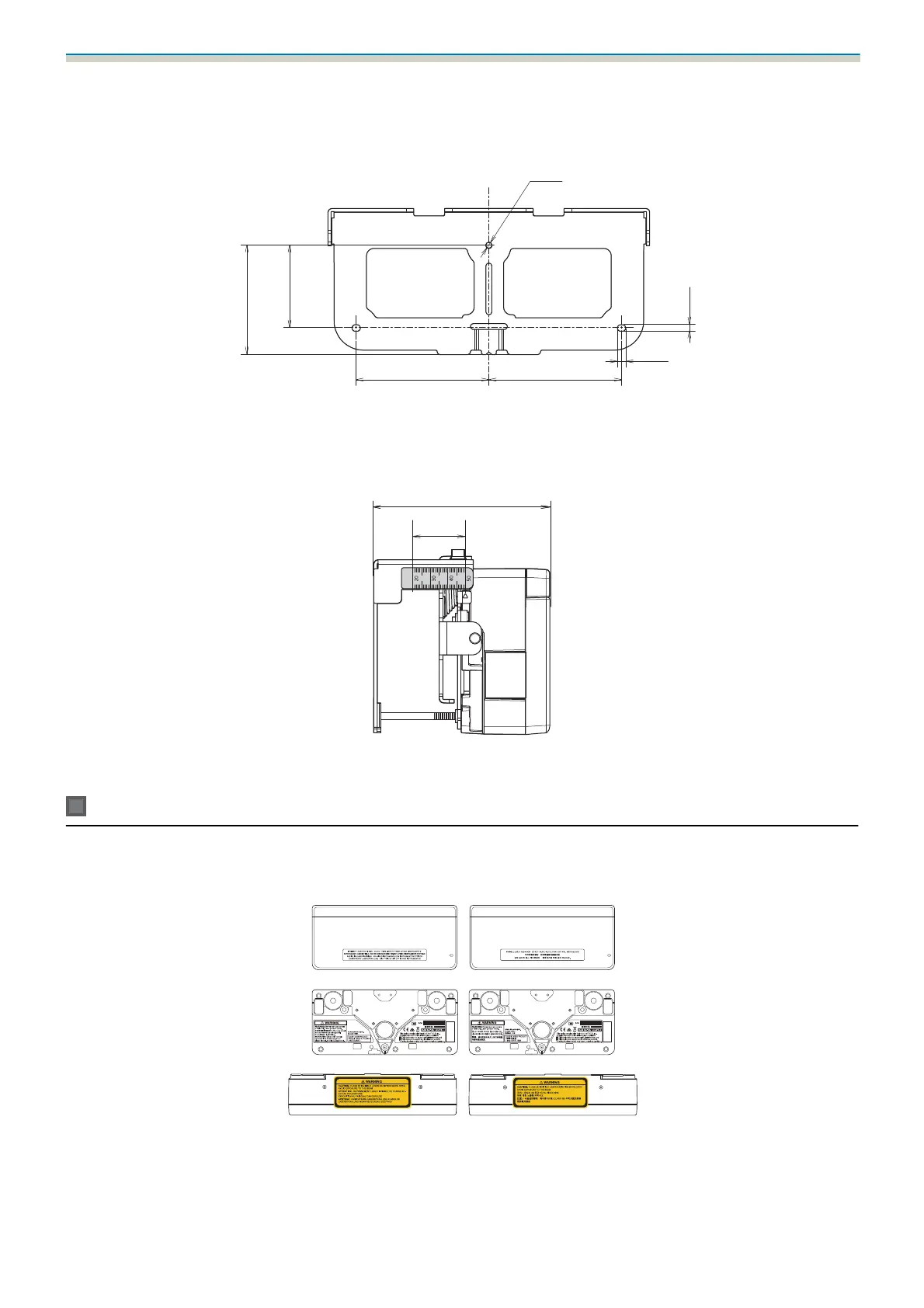

Installation plate (front)
[Unit: mm]
90
Ø4.2
2-5.7
2-4.5
90
56
74
When the Touch Unit is installed (side)
[Unit: mm]
100.8
30
Touch Unit Bracket weights approximately 750 g.
Attached labels
The Touch Unit is a Class 1 laser product that conforms to the IEC/EN60825-1:2014 standard.
There are warning labels affixed to the Touch Unit to indicate that it is a Class 1 laser product.
The labels contain the following information.
•
Class 1 laser product
•
Warning: Do not open the case. The device contains a high power laser product.
•
Warning:
