When Projected Image is Smaller than 85 Inches

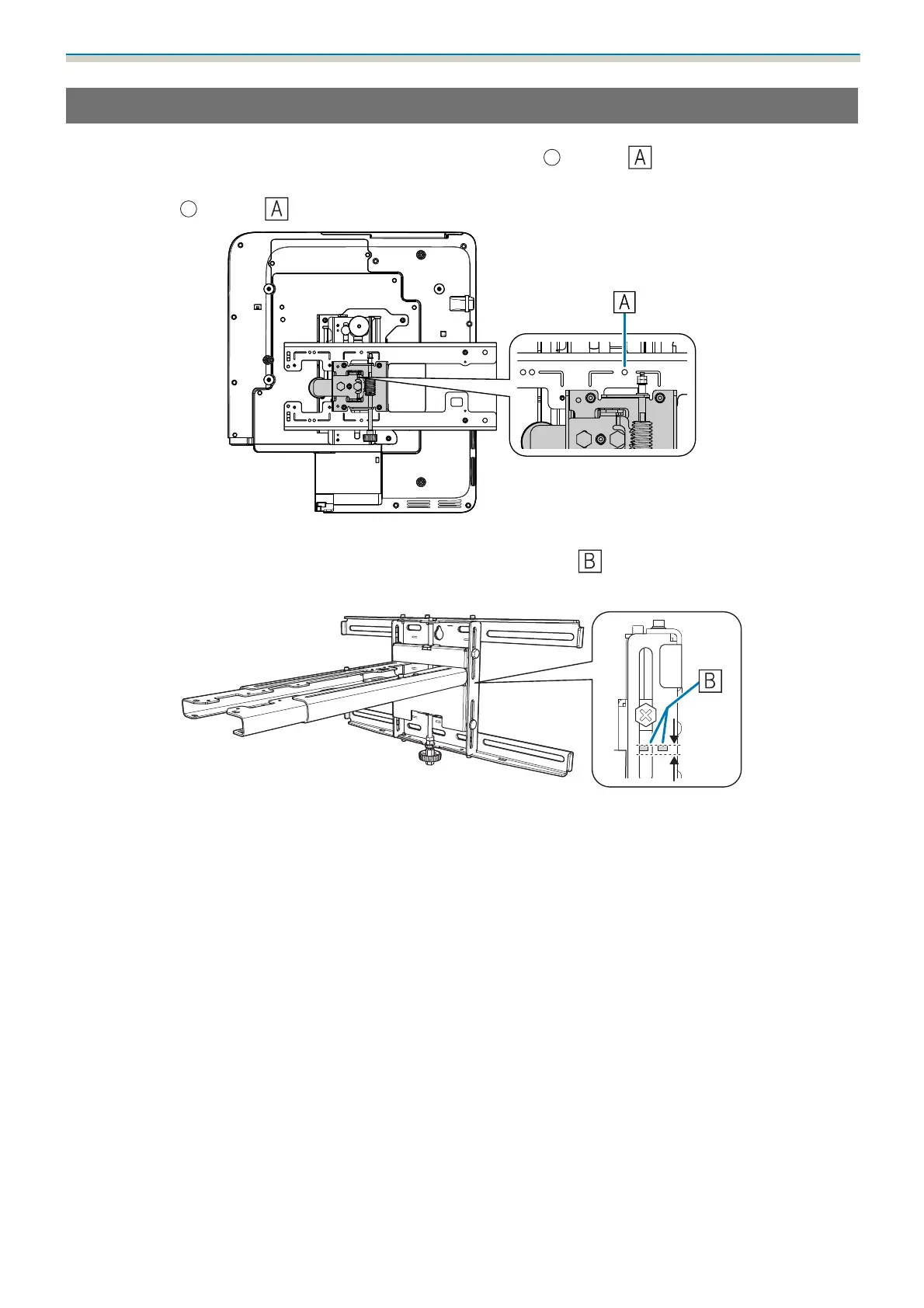

Mount the 3-axis adjustment unit at the position marked with a stamp ( ).
The projection distance table provides the figures when mounting the 3-axis adjustment unit at the position
marked with a
stamp ( ).
The distance from the top of the projected image to the bottom wall plate installation screw hole (c) is the
number given when the vertical slide is set to the standard position (
).
Match the notch on the setting plate to the position of the stamp on the wall plate.
