Installation Guide
43
c

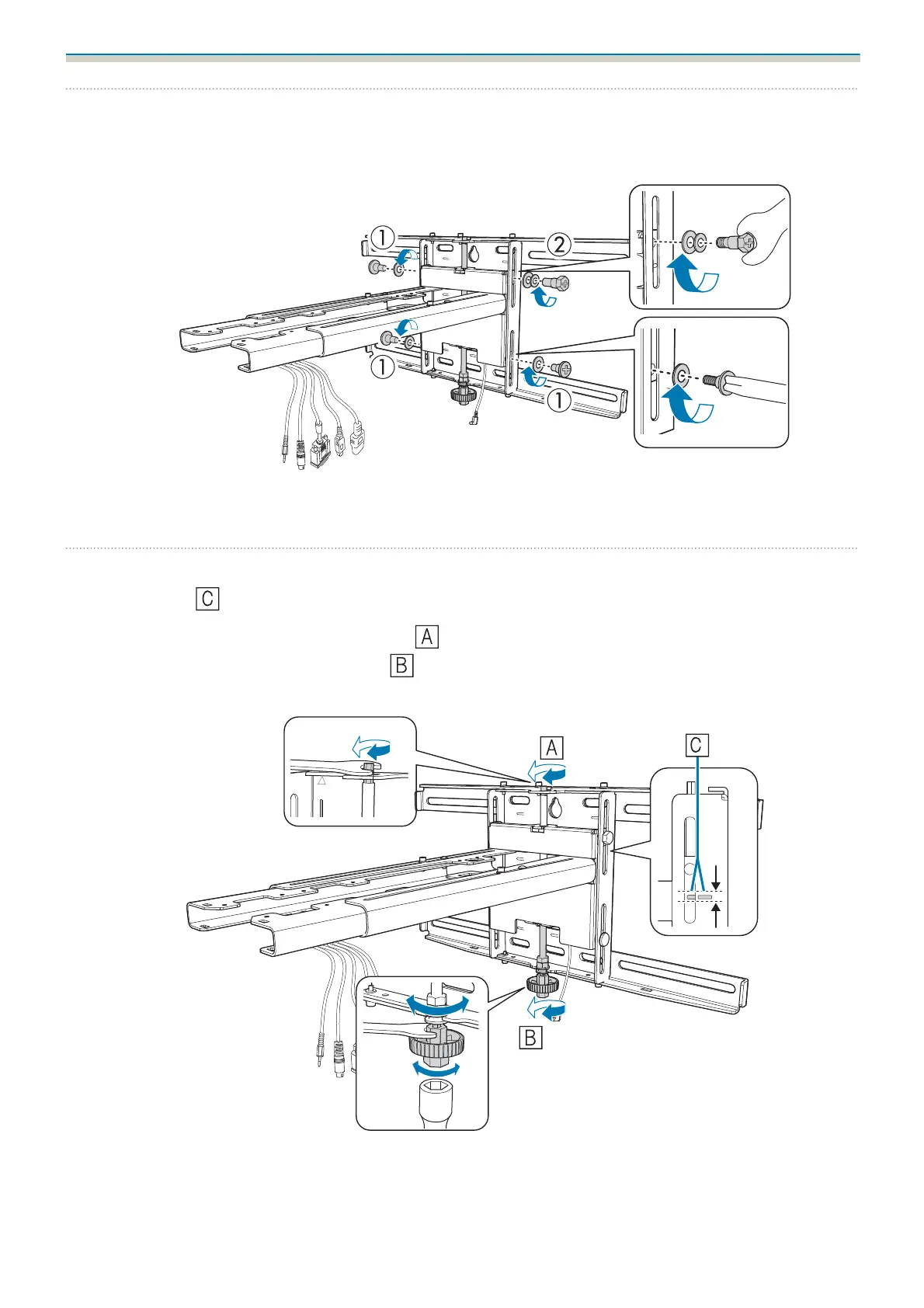

Secure the setting plate and the wall plate
Secure the supplied M6 screws (x3) with a commercially available No.3 cross-head screwdriver, and
then lightly tighten the supplied M6 bolt (x1) with the spanner.
d
Adjust the vertical slide with the open-ended spanner, and align it with the standard
position (
)
•
Tightening the hexagonal axis at the top ( ) raises the setting plate, and loosening the axis lowers it.
•
Tightening the M8 bolt at the bottom ( ) lowers the setting plate, and loosening the bolt raises it. (You can
also use a 17 mm socket wrench.)
