Installation Guide

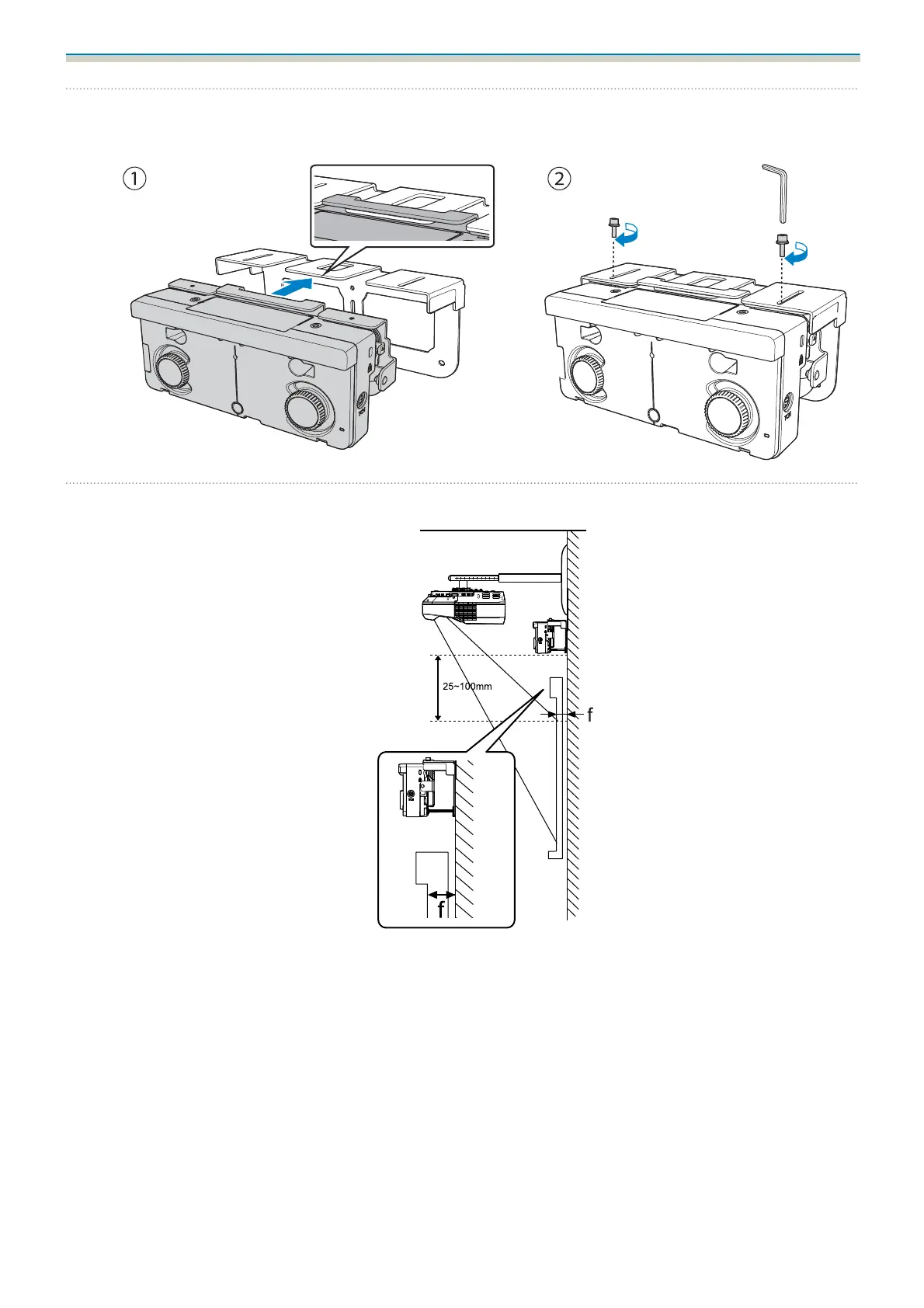

Use the supplied M4 x 10 mm bolts (x2) to install the securing plate on the installation plate

Tighten the bolts to the securing plate using the supplied hexagon wrench.

Measure the distance from the wall to the surface of the screen (f)
