Epson EB-475W Installation Guide

11
English
When the screen size is less than 70 inches

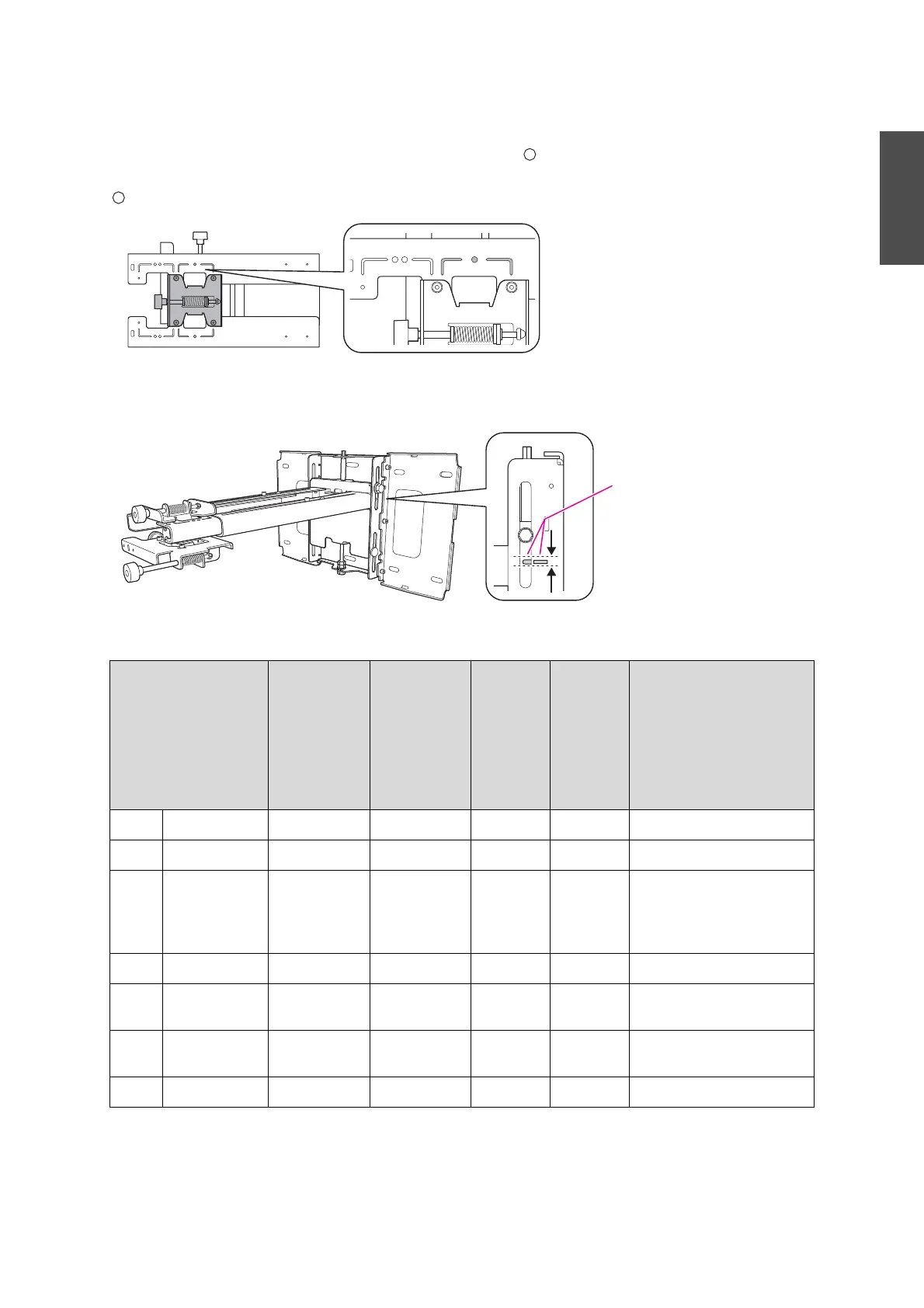

Mount the 3-axis adjustment unit at the position marked with a stamp.
The table below provides the figures when mounting the 3-axis adjustment unit at the position marked with a
stamp. The numbers on the slider measure (b) differ from the projection distance (a).
The distance (c) from the projection screen to the wall plate is the number given when the vertical slide is set
to the standard position.
Match the notch on the setting plate to the position of the stamp on the wall plate.
The smallest screen size is 53".
EB-485Wi/485W/475Wi/475W (4:3 aspect ratio)
[Unit: cm]
S a b c h
Interactive Whiteboard
Screen Size Projection
Distance
Minimum
(Wide) to
Maximum
(Tele)
Numbers on
the slider
measure
Distance
Between
Projection
Surface
and Wall
Plate
Height of
Projection
Surface
53" 107.7 x 80.8 6.2 - 19.3 12.4 - 25.5 17.4 80.8
57" 115.8 x 86.9 9.1 - 23.1 15.3 - 29.3 18.6 86.9 PolyVision TS410
60" 122.0 x 91.4 11.2 - 25.9 17.4 - 32.1 19.5 91.4 HitachiCambridge board60
RM Classboard 60
INTERWRITE
®
BOARD 1060
INTERWRITE Dual board 1260
63" 128.0 x 96.0 13.3 - 28.8 19.5 - 35.0 20.4 96.0 Hitachi Starboard FX DUO 63
64" 130.0 x 97.5 14.0 - 29.7 20.2 - 35.9 20.7 97.5 SmartBoard660
ActivBoard 164
66" 134.2 x 100.6 15.4 - 30.7 21.6 - 36.9 21.3 100.6 TeamBoard RT TMWM5422CL/
EM
69" 140.3 x 105.2 17.5 - 30.7 23.7 - 36.9 22.2 105.2
Standard position
