22

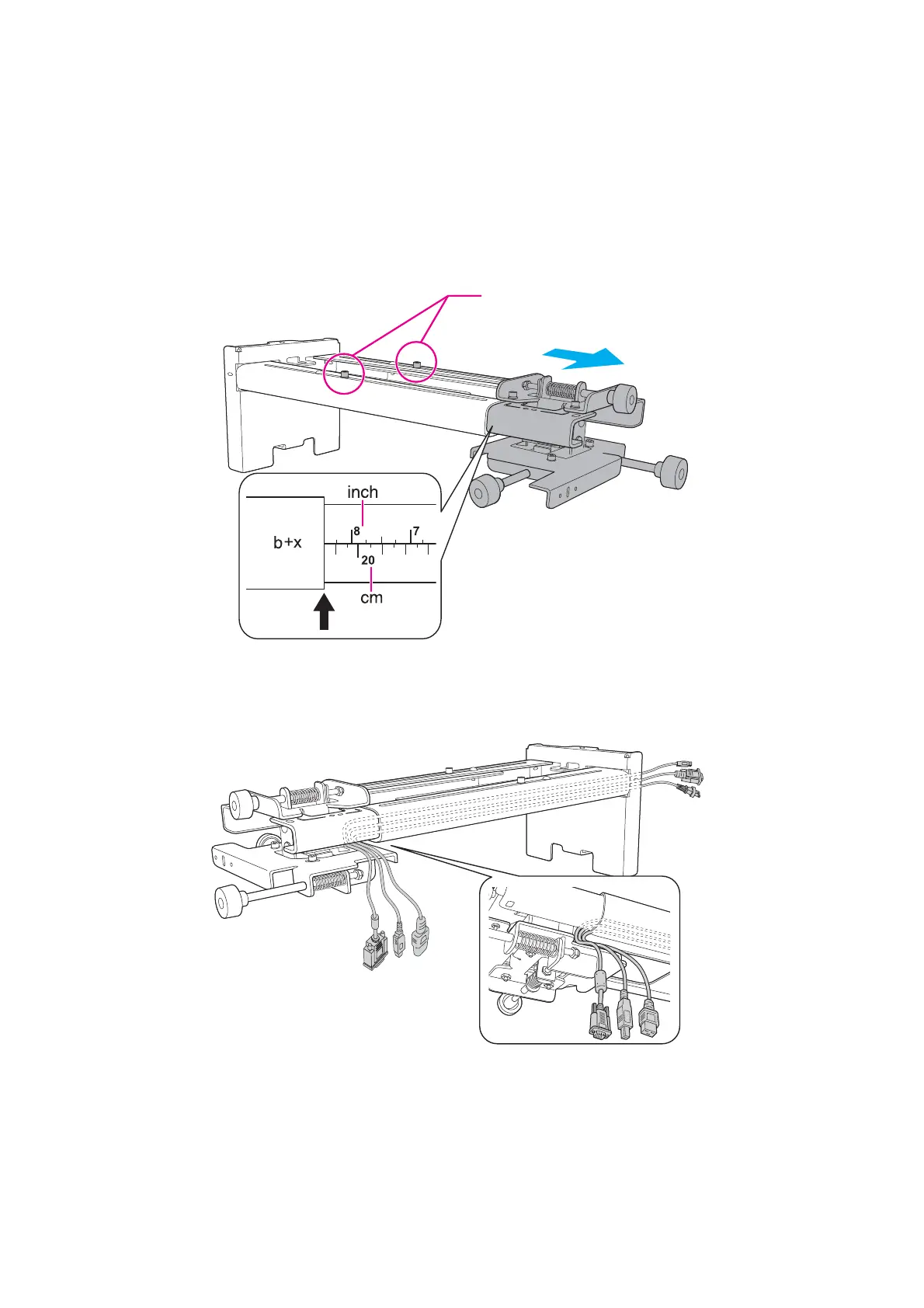

d Determine the projection distance and pull out the slider
(1) In the projection distance table, check the number for the slider measure (b).
(2) Loosen the M4 x 12 mm hexagon socket head cap bolts (x2), and then pull out the slider on
the setting plate.
Align the slider with the measure (b+x) that is equal to the slider measure (b) plus the thickness of the
projection screen (x).
e Route the cables through the setting plate
Route the necessary cables through the setting plate.
M4 x 12 mm hexagon socket head cap bolts (x2)
Slider measure
