7. Attaching the Covers

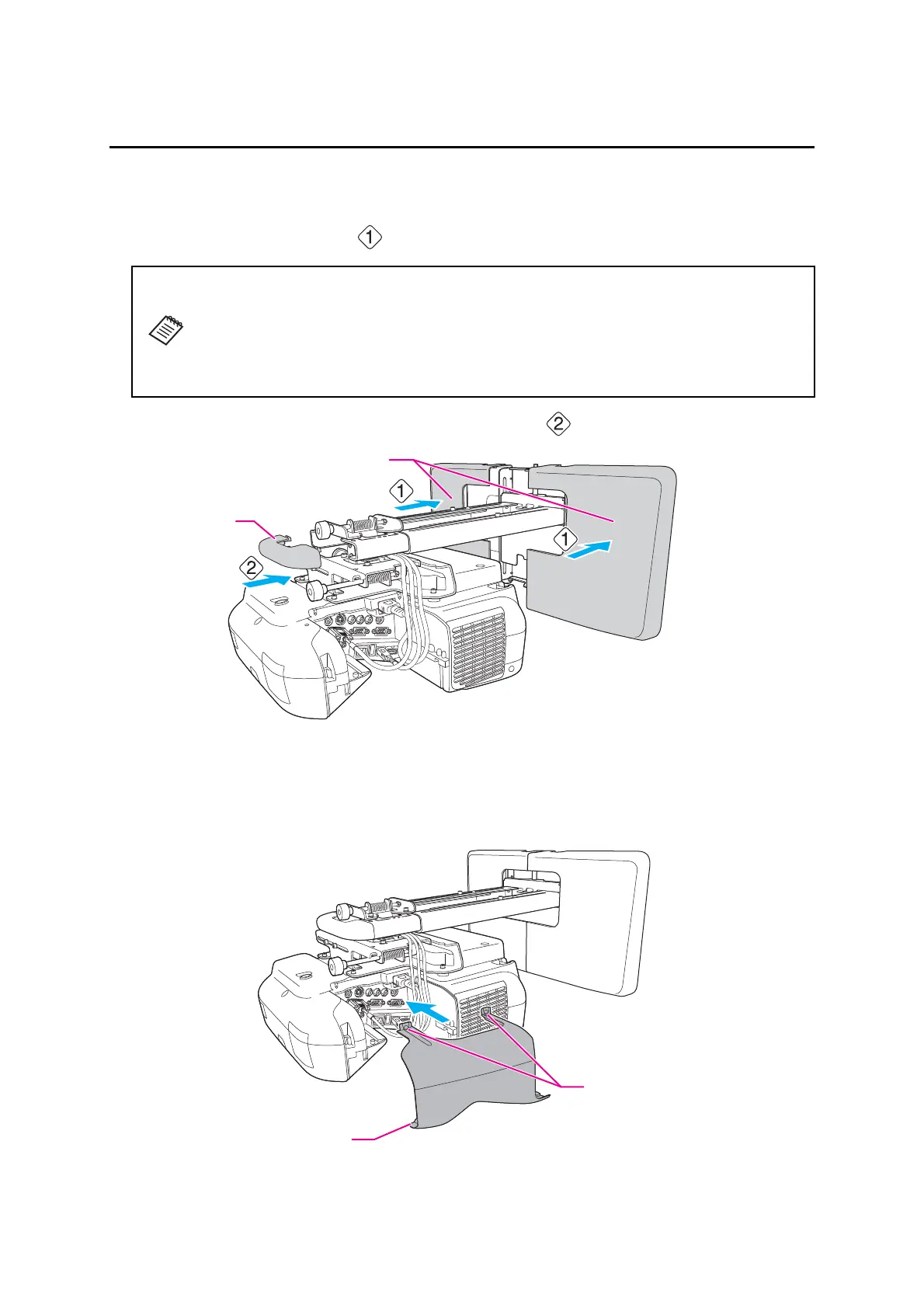

a Attach the wall plate cover and end cap
(1) Attach the wall plate cover ( ).
(2) Place the end cap with the concave portion facing up ( ).
b Attach the cable cover to the projector
Attach the cable cover and tighten the screws (x2) to secure the cable cover.
Depending on how the cables are wired, you may need to cut out parts of the wall
plate cover to allow the cables to be passed through it.
When cutting the thin section of the wall plate cover and passing the cables through,
make sure you perform deburring to smooth off any sharp edges to prevent damaging
the cables.
Also, make sure you operate the cutter safely.
