h Adjust the horizontal slide

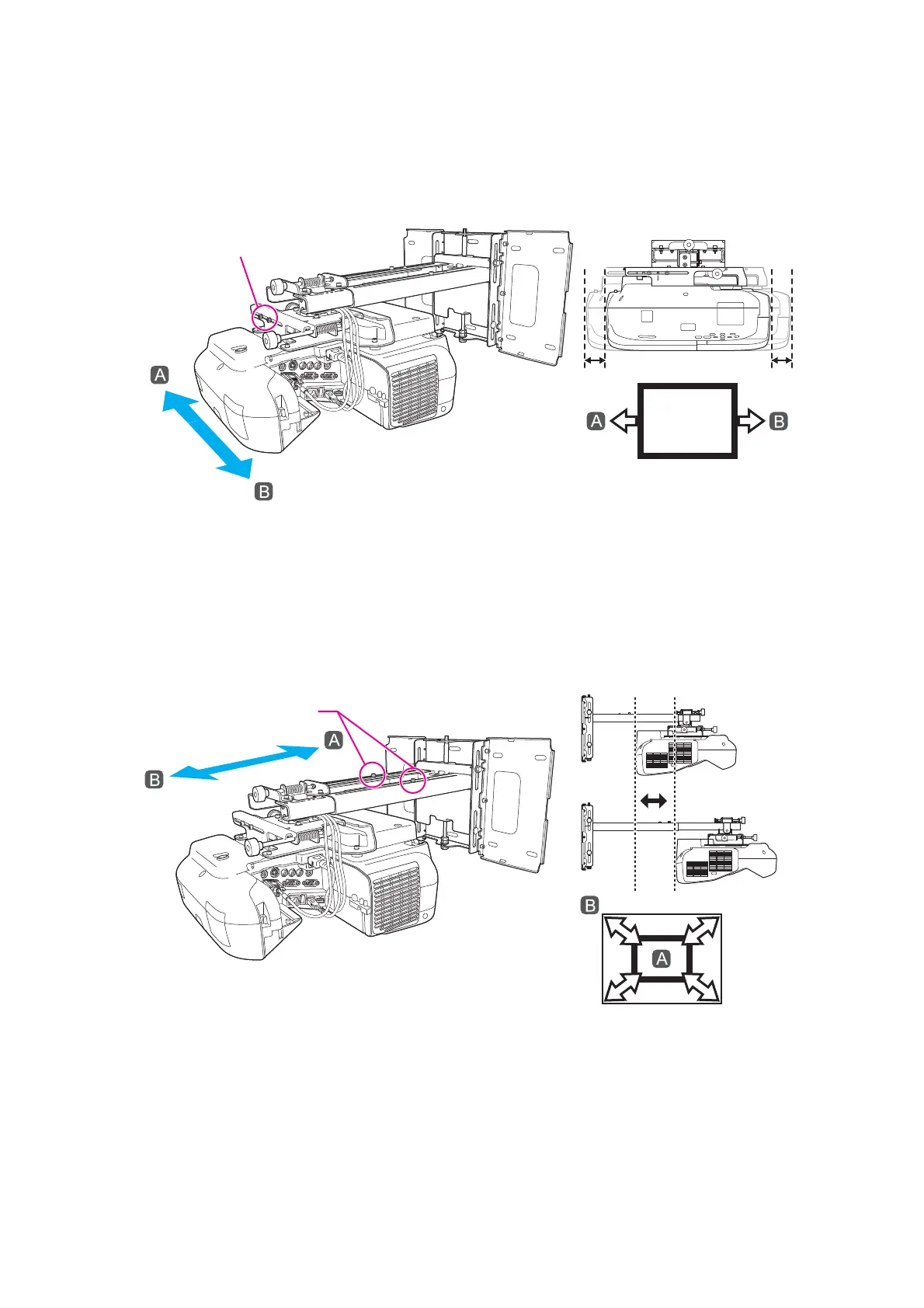

(1) Loosen the M4 x 12 mm hexagon socket head cap bolts (x2), and then adjust the slider for the
slide plate.
(2) After you finish making all of the adjustments in steps
e to j, tighten the M4 x 12 mm
hexagon socket head cap bolts (x2).
i Adjust the forward/backward slide
(1) Loosen the M4 x 12 mm hexagon socket head cap bolts (x2), and then adjust the slider for the
setting plate.
(2) After you finish making all of the adjustments in steps
e to j, tighten the M4 x 12 mm
hexagon socket head cap bolts (x2).
M4 x 12 mm hexagon socket
head cap bolts (x2)
M4 x 12 mm hexagon socket
head cap bolts (x2)
