20
c Install the wall plate on the wall

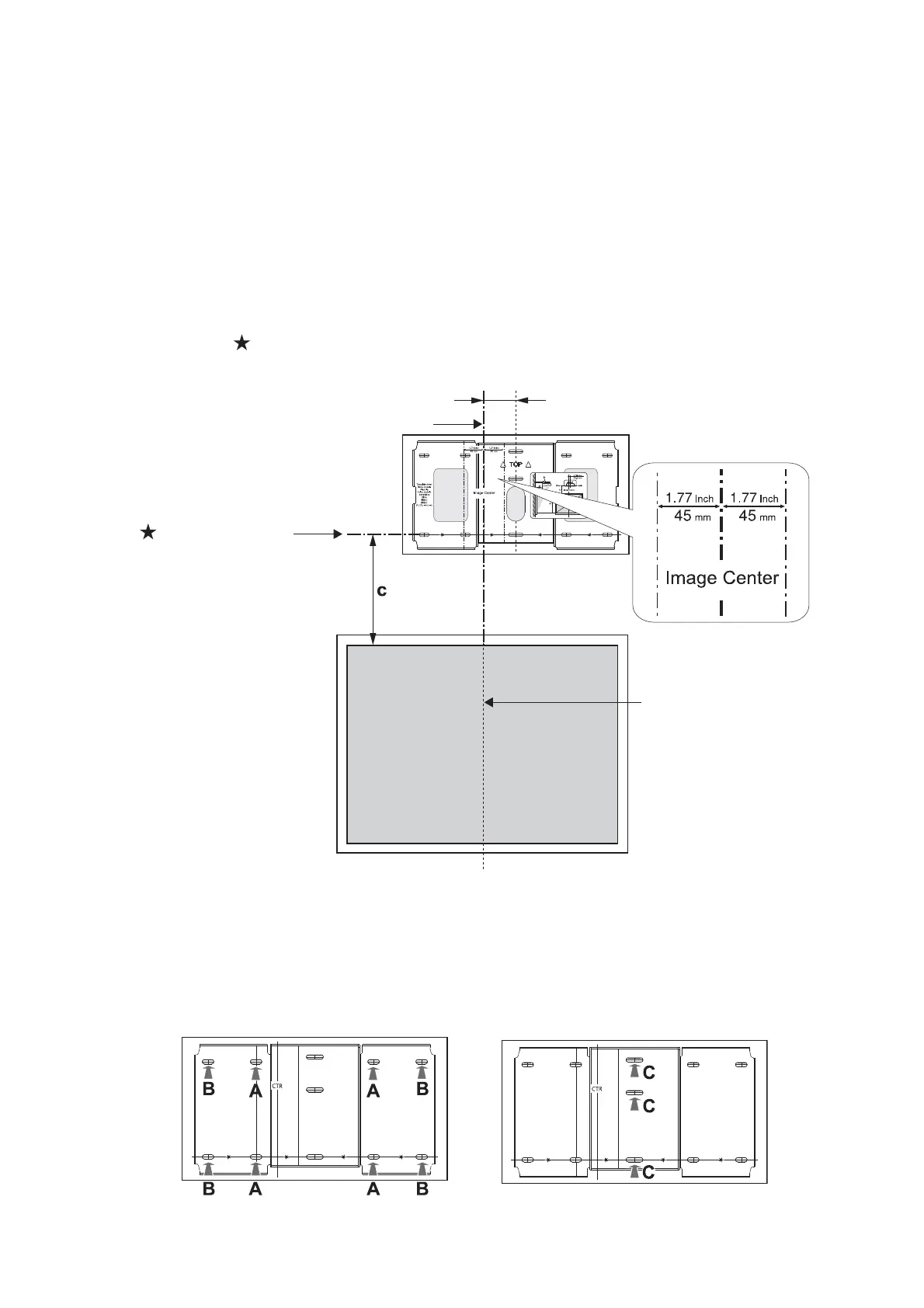

(1) Determine the template sheet position.
• From the projection distance table, confirm the screen size (S) and the distance between the
projection surface and wall plate (c).
• Align the Image Center line (vertical) of the template sheet with the center line (vertical) of the
projection surface.
Confirm where the beams are within the wall, and shift the position left or right as necessary.
(The position can be shifted horizontally left or right from the center line of the projection surface up
to a maximum of 45 mm.)
• Align the line (horizontal) of the template with the height of (c).
(2) Attach the template sheet to the wall.
(3) Determine the position of the wall plate's mounting holes.
Use at least three mounting holes.
• If securing the wall plate in four places, make the holes indicated by A or B in the figure.
• If securing the wall plate in three places, make the holes indicated by C in the figure.
Center line of projection
surface
Image Center line of template sheet
line of template sheet
70.5 mm
Four mounting holes
Three mounting holes
To Next Page
