English

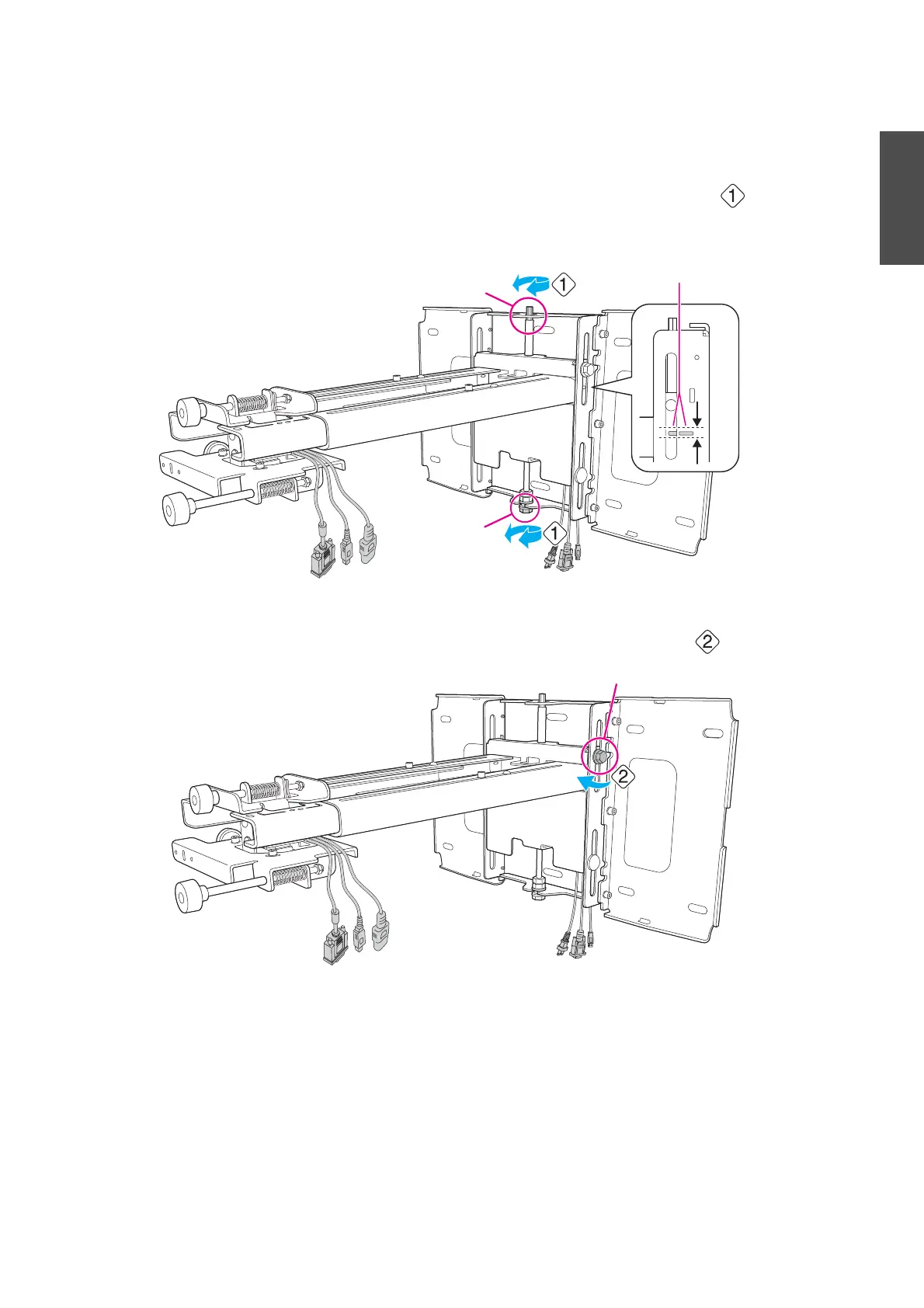

g Adjust the vertical slide to align it with the standard position
(1) Adjust the vertical slide with the M8 hexagon bolt at the bottom of the setting plate, or the
hexagonal axis at the top of the setting plate. Align with the standard position ( ).
Tightening the M8 hexagon bolt lowers the setting plate, and loosening the bolt raises it.
Tightening the hexagonal axis raises the setting plate, and loosening the axis lowers it.
(2) Tighten the M6 x 20 mm hexagon shoulder bolt to secure the setting plate ( ).
Standard position
Hexagonal axis
M8 hexagon
bolt
M6 x 20 mm hexagon shoulder bolt
