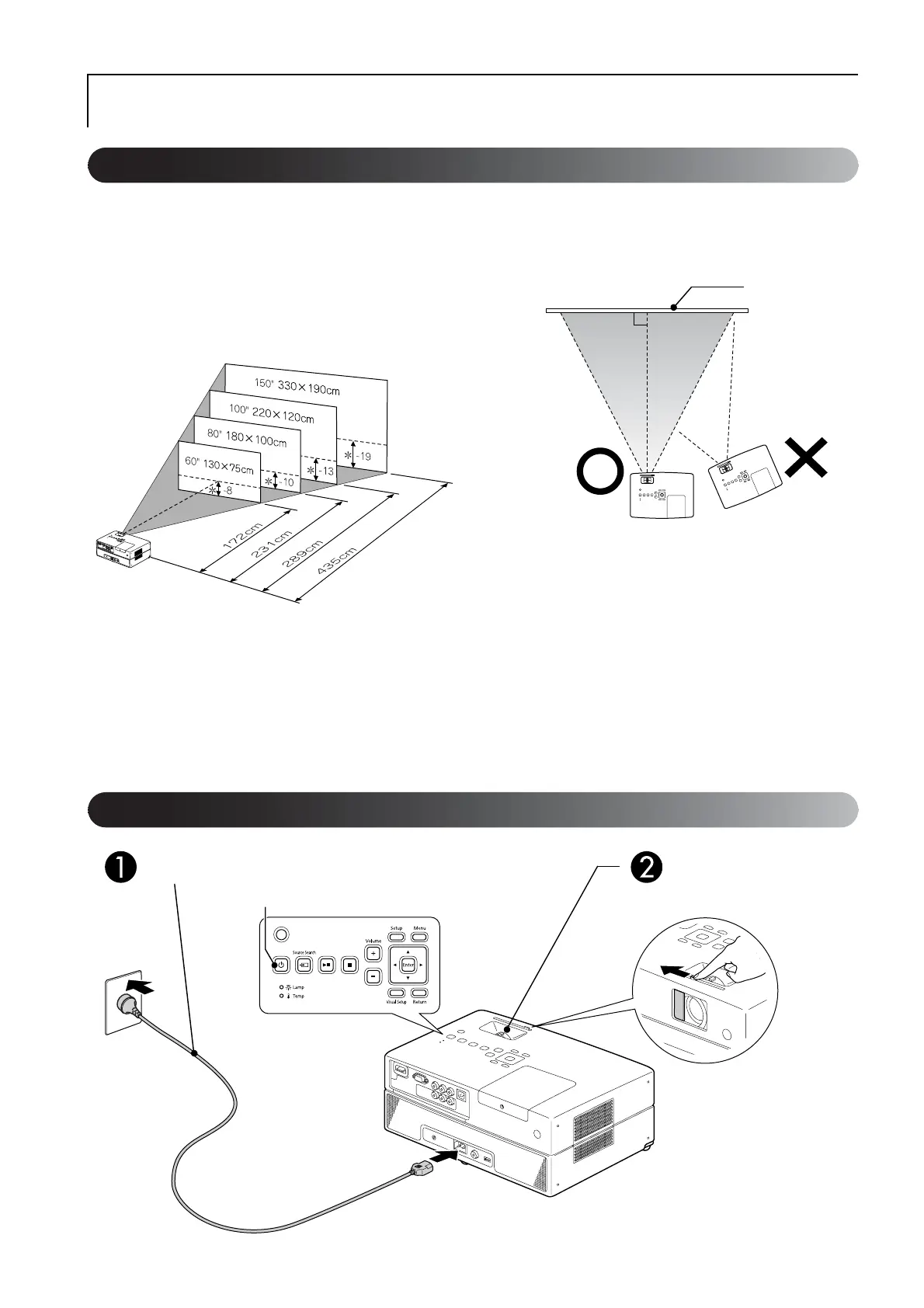

Place the unit in a position that will
enable the optimum size image to be
projected on the screen.
When you use a 16:9 ratio, 80” type widescreen,
for example, place the unit approximately 231 cm
away from the screen.
* The distance from the center of the lens to the base of the
screen.
The further this unit is moved away from the
screen, the larger the projected image becomes.
Values are just reference.
For detailed projection distance values sp. 78
B
Position this unit so that it is parallel to
the screen.
If this unit is not placed parallel to the screen, the
projected image is distorted in the shape of a
keystone.
Installation
Projection distance and screen size
Screen
Connecting the power cable
Lit orange
Connect the power cable. Open the lens cover.
