49
Advanced Operations

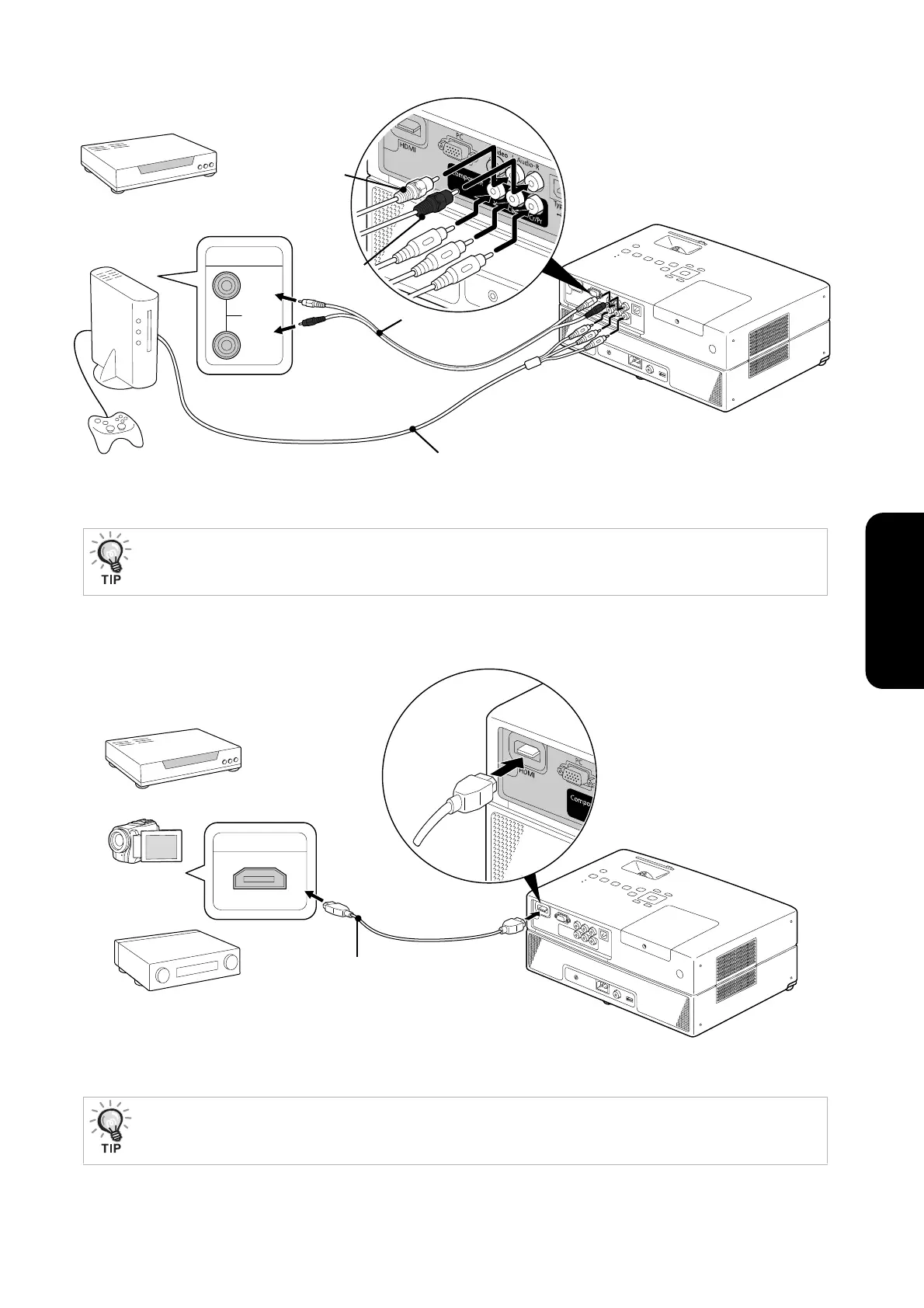

Connecting with a component video cable
Connecting with an HDMI cable
Use a HDMI cable that meets the HDMI standard. Otherwise, the image may not be displayed clearly or lost.
For a D port output device, use a commercially available D port - component conversion cable.
PCM Audio is supported. If no audio is output, set the destination device to the PCM out mode.
RCA audio cable
(commercially available)
To Audio input
port
White
Output
Audio
L
R
Red
Component video cable
(commercially available)
To Audio out port
Output
HDMI cable
(commercially available)
To HDMI output port
To HDMI input port
HDMI
