Epson EB-X20 User Manual

Warning
• When replacing the lamp because it has stopped illuminating, there is a
possibility that the lamp may be broken. If replacing the lamp of a projector
which has been installed on the ceiling, you should always assume that the
lamp is cracked, and you should stand to the side of the lamp cover, not
underneath it. Remove the lamp cover gently. Be careful when removing the
lamp cover as shards of glass may fall out and could cause an injury. If any
shards of glass get into your eyes or mouth, contact your local physician
immediately.
• Never disassemble or remodel the lamp. If a modified or disassembled lamp
is installed in the projector and used, it could cause a fire, electric shock, or
an accident.
Caution
Wait until the lamp has cooled down sufficiently before removing the lamp
cover. If the lamp is still hot, burns or other injuries may result. It takes about
one hour after the power has been turned off for the lamp to be cool enough.
a
After you turn off the projector's power and the confirmation
buzzer beeps twice, disconnect the power cord.
b
Wait until the lamp has sufficiently cooled down, and then remove
the lamp cover at the top of the projector.

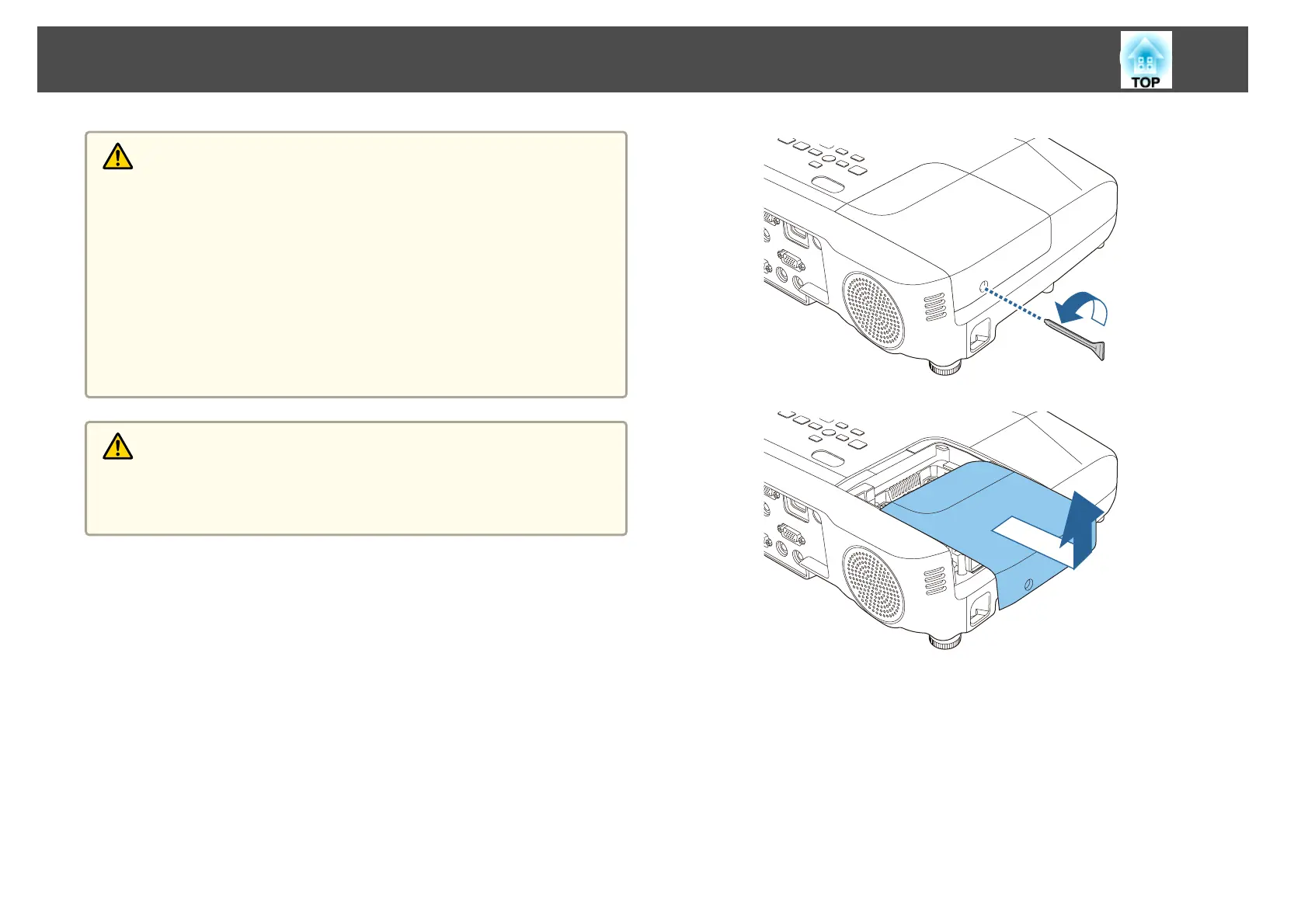

Loosen the Lamp cover fixing screw with the screwdriver supplied
with the new lamp unit or a cross-head screwdriver. Then slide the
lamp cover straight forward and lift it to remove.
c
Loosen the two lamp fixing screws.
Replacing Consumables
122

Epson EB-X20 Specifications

General

Projection System	3LCD Technology
LCD Panel	0.55 inch with MLA (D8)
Color Light Output	2, 700 lumen - 1, 890 lumen (economy)
White Light Output	2, 700 lumen - 1, 890 lumen (economy)
Resolution	XGA, 1024 x 768, 4:3
Contrast Ratio	10, 000:1
Lamp	ETORL, 200 W, 5, 000 h durability, 6, 000 h durability (economy mode)
Keystone Correction	Auto vertical: ± 30°, Manual horizontal ± 30°
Projection Ratio	1.48 - 1.77:1
Zoom	Manual, Factor: 1.2
Projection Size	30 inches - 300 inches
Projection Distance Wide/Tele	1.8 m - 2.17 m (60 inch screen)
Projection Lens F Number	1.58 - 1.72
Focal Distance	16.9 mm - 20.28 mm
Focus	Manual
Offset	8:1
USB Display Function	3 in 1: Image / Mouse / Sound
Interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
Energy Use	270 W, 223 W (economy), 0.47 W (standby)
Dimensions Single Carton	363 x 397 x 160 mm
Carton Weight	4.12 Kg
