Unit: cm
16:10 Screen Size
A
B
Minimum (Wide) to Maximum
(Tele)
33" 71x44 91 - 110 -4
35" 76x47 97 - 117 -4
40" 86x54 111 - 134 -5
50" 110x67 139 - 168 -6
60" 130x81 168 - 202 -7
80" 170x110 225 - 270 -10
100" 220x130 281 - 338 -12
150" 320x200 424 - 509 -18
200" 430x270 566 - 680 -24
320" 690x430 907 - 1089 -39
Projection Distance (For EB-S21/EB-S17)
A
Projection distance
B
Distance from the center of the receiver's lens to the base of the screen
(or to the top of the screen, if suspended from a ceiling)
C
Center of lens
Unit: cm
4:3 Screen Size
AB
Minimum (Wide) to
Maximum (Tele)
Wide
30" 61x46 88 - 119 -5
50" 100x76 147 - 200 -8
60" 120x91 177 - 240 -10

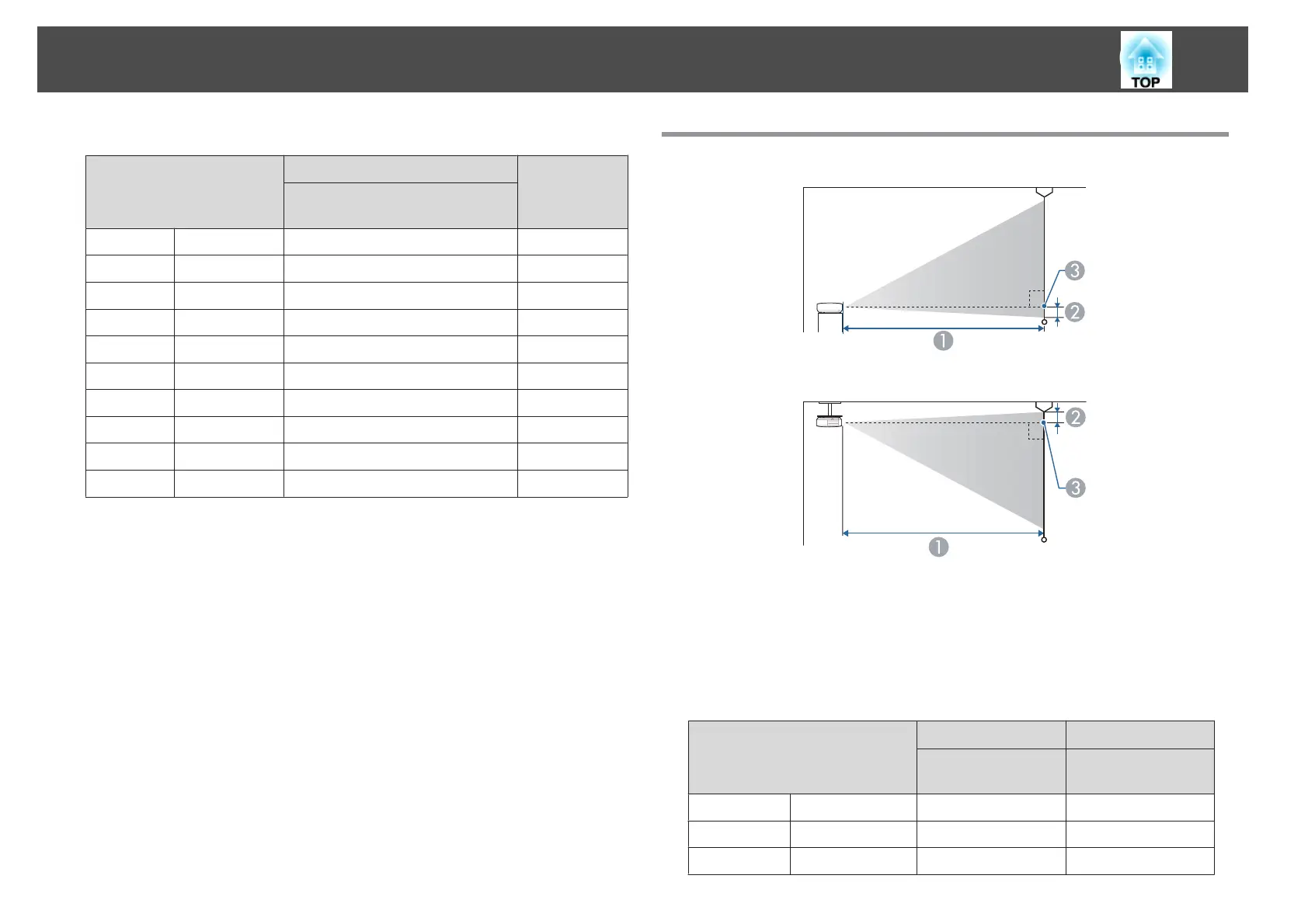

Screen Size and Projection Distance
131
