Epson EB-X20 User Manual

e

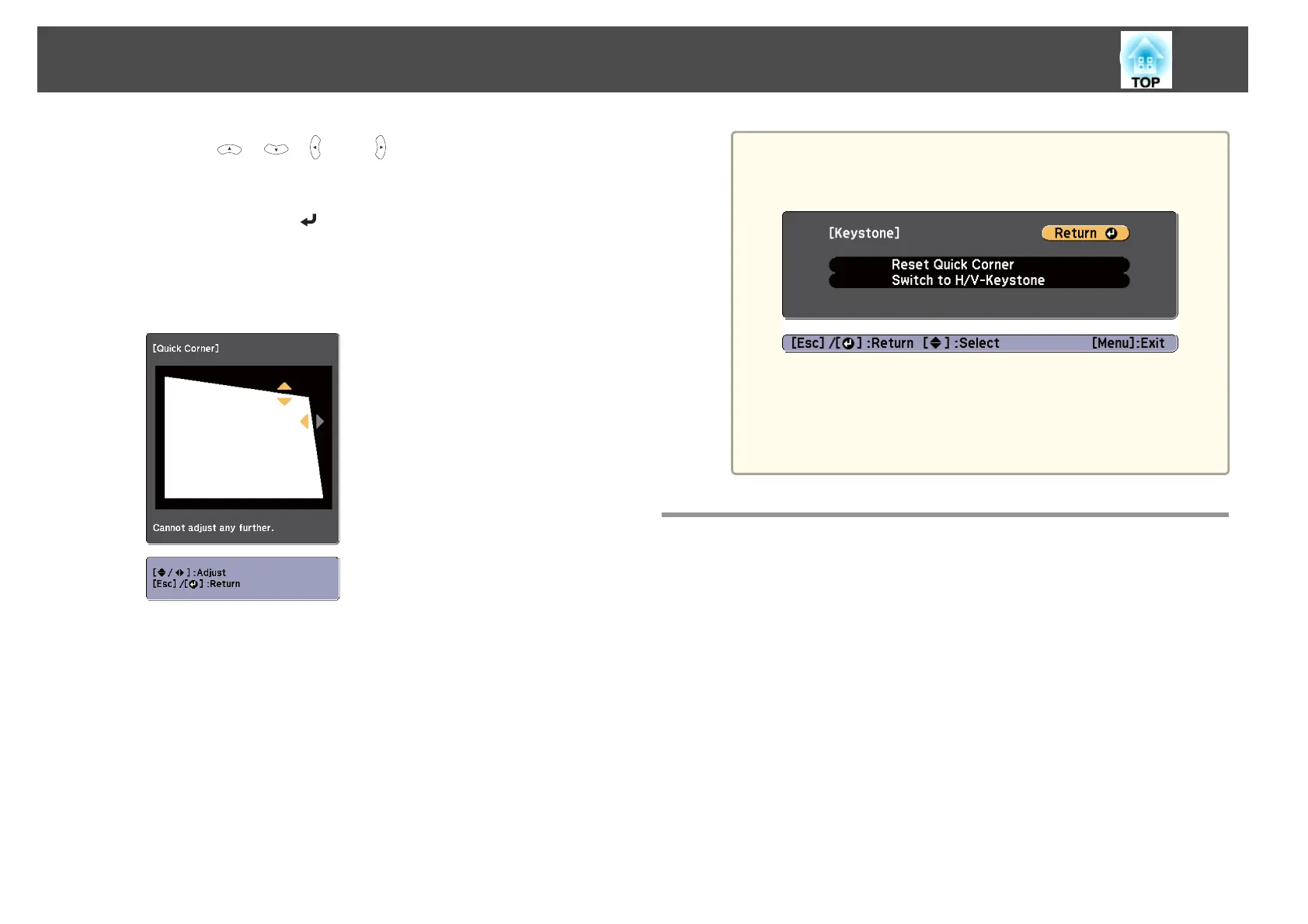

Using the [ ], [ ], [ ], and [ ] buttons on the remote control,
or the [
w], [v], [a], and [b] buttons (or the [Wide]/[Tele] buttons)
on the control panel, correct the position of the corner.
When you press the [
] button, the screen shown in step 4 is
displayed.
If the message "Cannot adjust any further." is displayed while
adjusting, you cannot adjust the shape any further in the direction
indicated by the gray triangle.
f
Repeat procedures 4 and 5 as needed to adjust any remaining
corners.
g
When you are done, press the [Esc] button to exit the correction
menu.
Because Keystone was changed to Quick Corner, the corner
selection screen shown in step 4 is displayed the next time you press
the [
w] or [v] button on the control panel. Change Keystone to
H/V-Keystone if you want to perform horizontal and vertical
correction using the [
w] or [v] button on the control panel.
s Settings - Keystone - H/V-Keystone p.88
a
If the [Esc] button is held down for about two seconds while
the corner selection screen from step 4 is displayed, the
following screen is displayed.
Reset Quick Corner: Resets the result of Quick Corner
corrections.
Switch to H/V-Keystone: Switches the correction method to
H/V-Keystone.
s "Settings Menu" p.88
Adjusting the Image Size
For EB-X25/EB-W22/EB-X22/EB-X21/EB-X20/EB-X17
Turn the zoom ring to adjust the size of the projected image.
For EB-S21/EB-S17
Adjust by using the [Wide]/[Tele] buttons on the control panel.
Wide: Enlarges the size of the projected image.
Tele: Reduces the size of the projected image.
Adjusting Projected Images
44

Epson EB-X20 Specifications

General

Projection System	3LCD Technology
LCD Panel	0.55 inch with MLA (D8)
Color Light Output	2, 700 lumen - 1, 890 lumen (economy)
White Light Output	2, 700 lumen - 1, 890 lumen (economy)
Resolution	XGA, 1024 x 768, 4:3
Contrast Ratio	10, 000:1
Lamp	ETORL, 200 W, 5, 000 h durability, 6, 000 h durability (economy mode)
Keystone Correction	Auto vertical: ± 30°, Manual horizontal ± 30°
Projection Ratio	1.48 - 1.77:1
Zoom	Manual, Factor: 1.2
Projection Size	30 inches - 300 inches
Projection Distance Wide/Tele	1.8 m - 2.17 m (60 inch screen)
Projection Lens F Number	1.58 - 1.72
Focal Distance	16.9 mm - 20.28 mm
Focus	Manual
Offset	8:1
USB Display Function	3 in 1: Image / Mouse / Sound
Interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
Energy Use	270 W, 223 W (economy), 0.47 W (standby)
Dimensions Single Carton	363 x 397 x 160 mm
Carton Weight	4.12 Kg
