Epson EB-X20 User Manual

Name Function
D
[Help] button
Displays and closes the Help screen which shows you how
to deal with problems if they occur.
s "Using the Help" p.103
E
[Esc] button
• Stops the current function.
• If pressed when the Configuration menu is displayed, it
moves to the previous menu level.
s "Using the Configuration Menu" p.82
F
[a][b] buttons
or [Wide][Tele]
buttons
• For EB-X25/EB-W22/EB-X22/EB-X21/EB-X20/EB-
X17
[
a
] Decreases the volume.
[b] Increases the volume.
s "Adjusting the Volume" p.46
• For EB-S21/EB-S17
[Wide]: Enlarges the size of the projected image.
[Tele]: Reduces the size of the projected image.
s "Adjusting the Image Size" p.44
• Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
s "H/V-Keystone" p.42
• If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s
"Using the Configuration Menu" p.82
s "Using the Help" p.103
G
[Menu] button
Displays and closes the Configuration menu.
s "Using the Configuration Menu" p.82
H
Power button
[t]
Turns the projector power on or off.
s "From Installation to Projection" p.34
I
Indicators
Indicates the projector's status.
s "Reading the Indicators" p.104

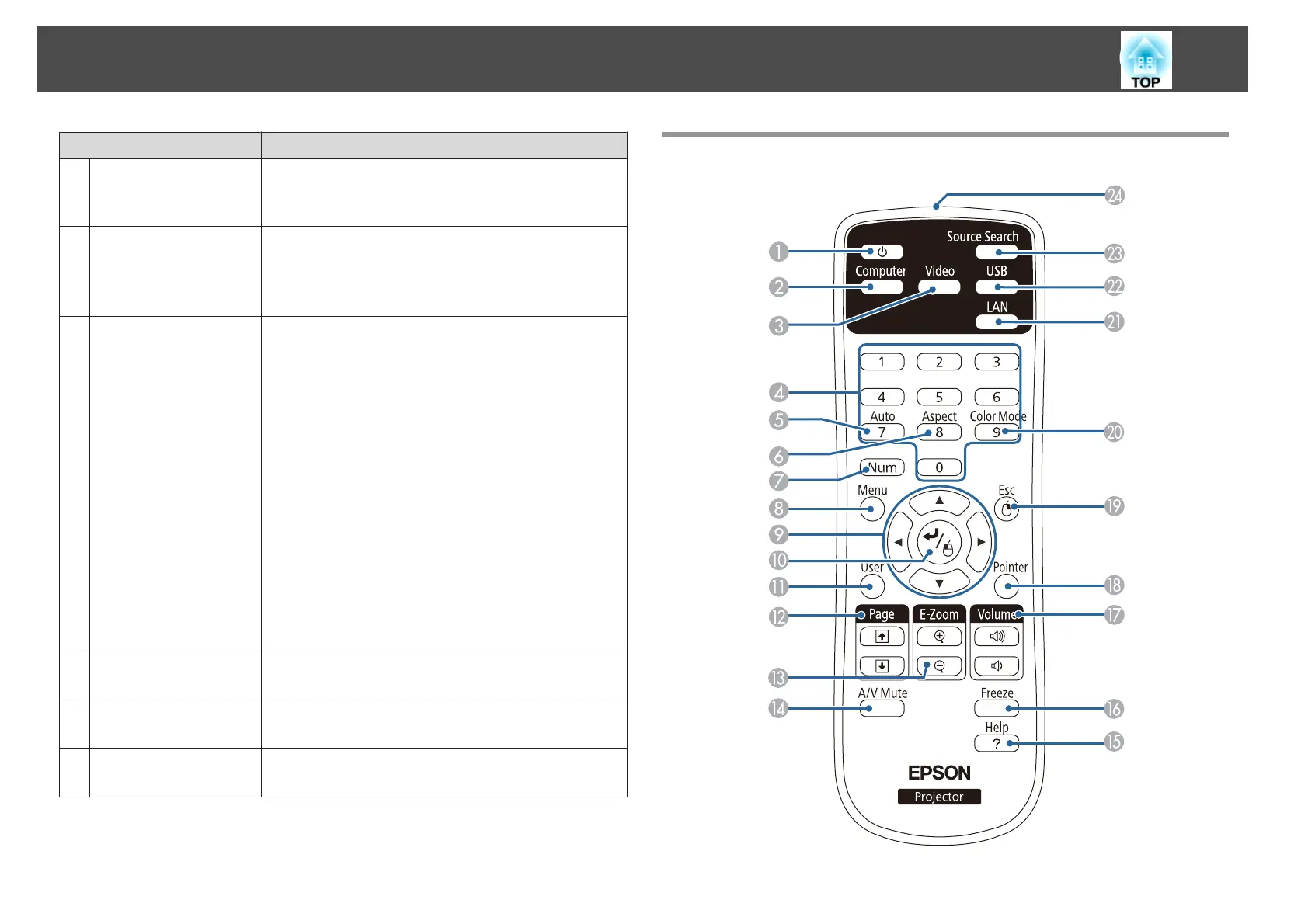

Remote Control
Part Names and Functions
16

Epson EB-X20 Specifications

General

Projection System	3LCD Technology
LCD Panel	0.55 inch with MLA (D8)
Color Light Output	2, 700 lumen - 1, 890 lumen (economy)
White Light Output	2, 700 lumen - 1, 890 lumen (economy)
Resolution	XGA, 1024 x 768, 4:3
Contrast Ratio	10, 000:1
Lamp	ETORL, 200 W, 5, 000 h durability, 6, 000 h durability (economy mode)
Keystone Correction	Auto vertical: ± 30°, Manual horizontal ± 30°
Projection Ratio	1.48 - 1.77:1
Zoom	Manual, Factor: 1.2
Projection Size	30 inches - 300 inches
Projection Distance Wide/Tele	1.8 m - 2.17 m (60 inch screen)
Projection Lens F Number	1.58 - 1.72
Focal Distance	16.9 mm - 20.28 mm
Focus	Manual
Offset	8:1
USB Display Function	3 in 1: Image / Mouse / Sound
Interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
Energy Use	270 W, 223 W (economy), 0.47 W (standby)
Dimensions Single Carton	363 x 397 x 160 mm
Carton Weight	4.12 Kg
