Epson EB-X20 User Manual

Illustrations in this section are of EB-X21.
The port name, number, location, and connector orientation differ depending on the source being connected.

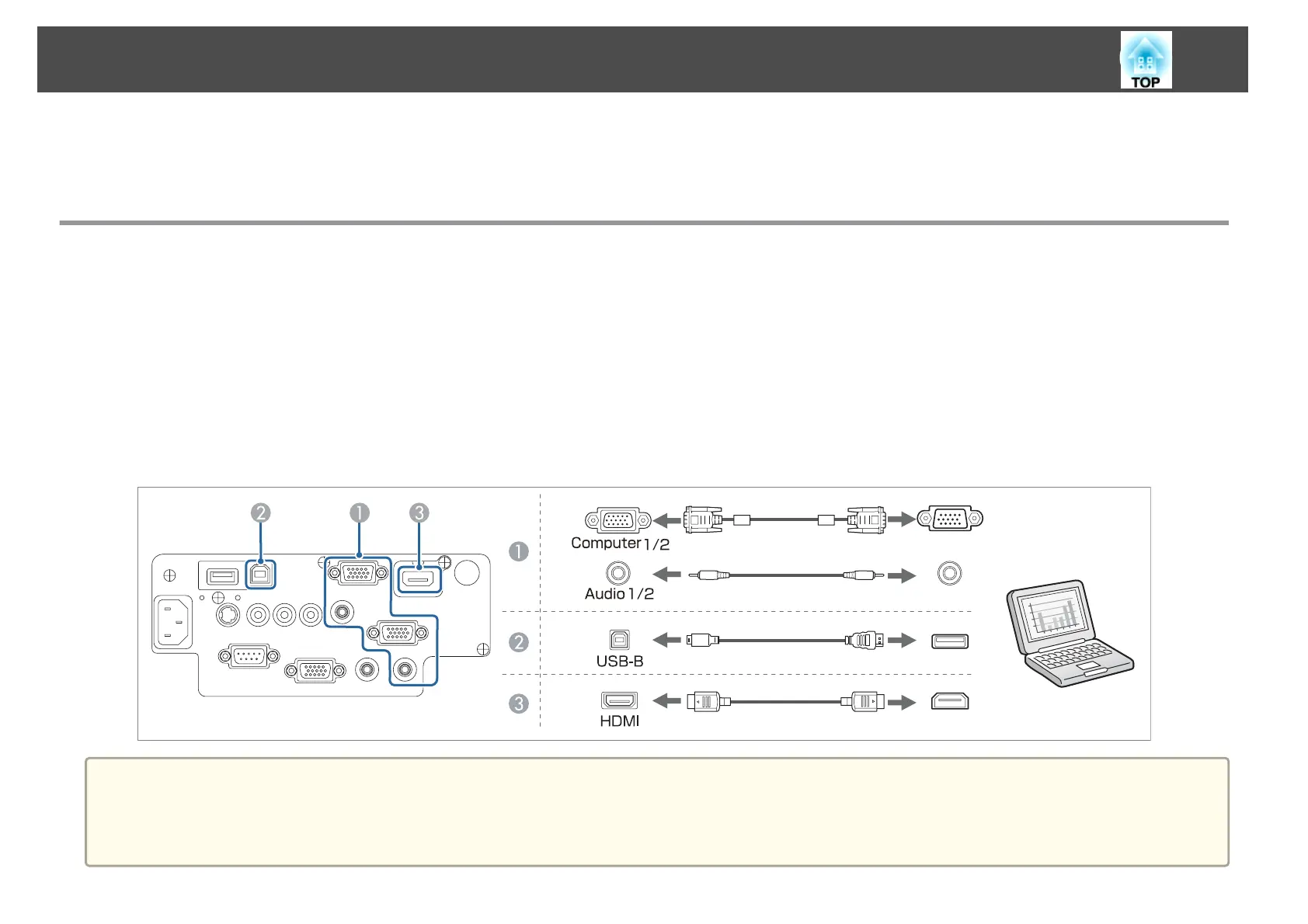

Connecting a Computer
To project images from a computer, connect the computer using one of the following methods.
A
When using the supplied computer cable
Connect the computer's display output port to the projector's Computer port. You can output audio from the projector's speaker by connecting the computer's audio output port to the
projector's Audio1 or Audio2 port using a commercially available audio cable.
B
When using the supplied or commercially available USB cable
Connect the computer's USB port to the projector's USB-B port. You can send the computer's audio with the projected image.
C
When using a commercially available HDMI cable
Connect the computer's HDMI port to the projector's HDMI port. You can send the computer's audio with the projected image.
a
• You can change the audio input source in Audio Output.
s Extended - A/V Settings - Audio Output p.89
• You can use a USB cable to connect the projector to a computer to project images from the computer. This function is called USB Display.
s "Projecting with USB Display" p.36
Connecting Equipment
25

Epson EB-X20 Specifications

General

Projection System	3LCD Technology
LCD Panel	0.55 inch with MLA (D8)
Color Light Output	2, 700 lumen - 1, 890 lumen (economy)
White Light Output	2, 700 lumen - 1, 890 lumen (economy)
Resolution	XGA, 1024 x 768, 4:3
Contrast Ratio	10, 000:1
Lamp	ETORL, 200 W, 5, 000 h durability, 6, 000 h durability (economy mode)
Keystone Correction	Auto vertical: ± 30°, Manual horizontal ± 30°
Projection Ratio	1.48 - 1.77:1
Zoom	Manual, Factor: 1.2
Projection Size	30 inches - 300 inches
Projection Distance Wide/Tele	1.8 m - 2.17 m (60 inch screen)
Projection Lens F Number	1.58 - 1.72
Focal Distance	16.9 mm - 20.28 mm
Focus	Manual
Offset	8:1
USB Display Function	3 in 1: Image / Mouse / Sound
Interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
Energy Use	270 W, 223 W (economy), 0.47 W (standby)
Dimensions Single Carton	363 x 397 x 160 mm
Carton Weight	4.12 Kg
