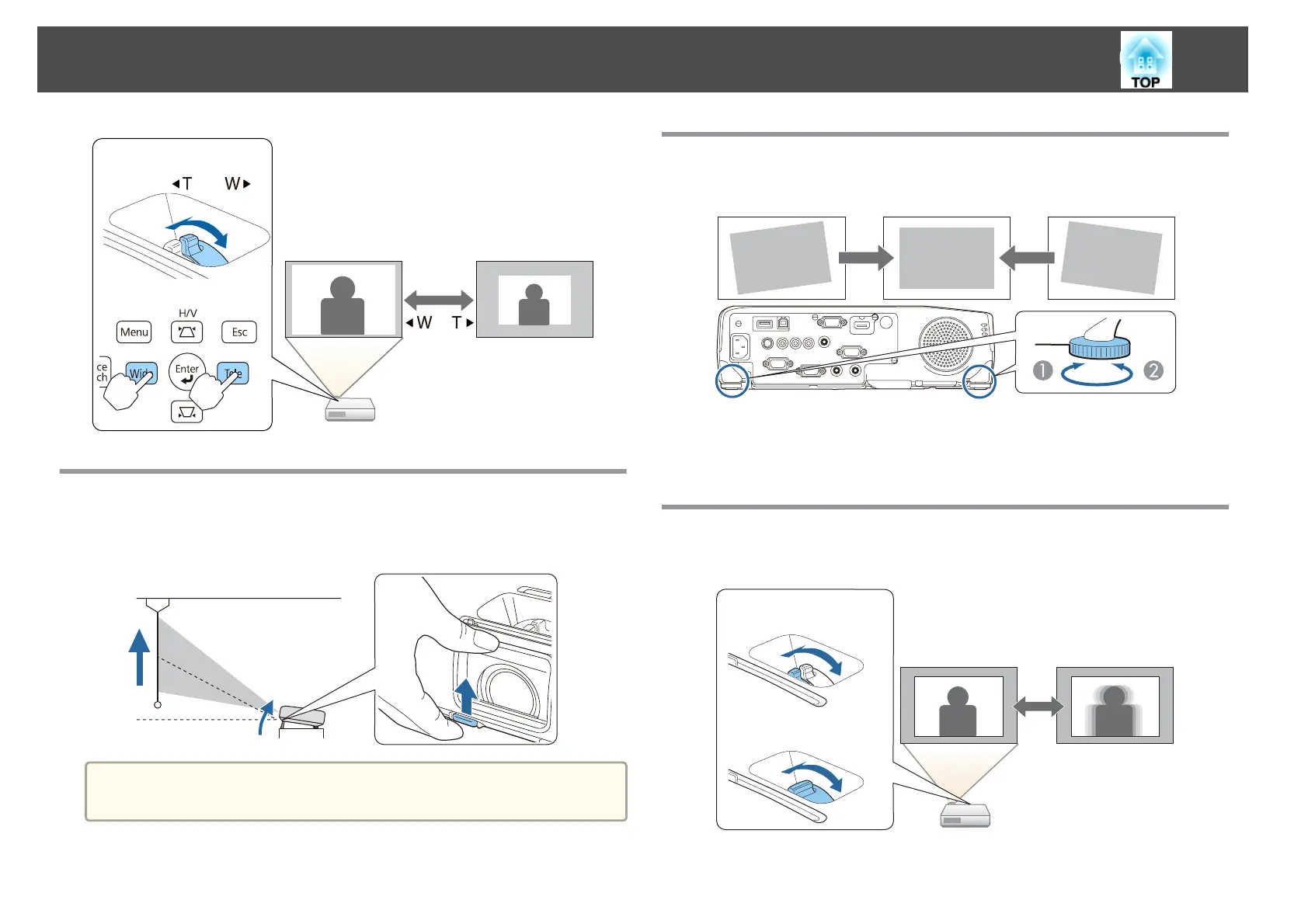

Adjusting the Image Position
Press the foot adjust lever to extend the front adjustable foot. You can
adjust the position of the image by tilting the projector up to 12 degrees.
a
The larger the angle of tilt, the harder it becomes to focus. Install the
projector so that it only needs to be tilted at a small angle.
Adjusting the Horizontal Tilt
Extend and retract the rear feet to adjust the projector's horizontal tilt.
A
Extend the rear foot.
B
Retract the rear foot.
Correcting the Focus
You can correct the focus using the focus ring.
EB-S21/EB-S17
EB-X25/EB-W22/EB-X22
/EB-X21/EB-X20/EB-X17
Adjusting Projected Images
45

Epson EB-X20 Specifications

General

Projection System	3LCD Technology
LCD Panel	0.55 inch with MLA (D8)
Color Light Output	2, 700 lumen - 1, 890 lumen (economy)
White Light Output	2, 700 lumen - 1, 890 lumen (economy)
Resolution	XGA, 1024 x 768, 4:3
Contrast Ratio	10, 000:1
Lamp	ETORL, 200 W, 5, 000 h durability, 6, 000 h durability (economy mode)
Keystone Correction	Auto vertical: ± 30°, Manual horizontal ± 30°
Projection Ratio	1.48 - 1.77:1
Zoom	Manual, Factor: 1.2
Projection Size	30 inches - 300 inches
Projection Distance Wide/Tele	1.8 m - 2.17 m (60 inch screen)
Projection Lens F Number	1.58 - 1.72
Focal Distance	16.9 mm - 20.28 mm
Focus	Manual
Offset	8:1
USB Display Function	3 in 1: Image / Mouse / Sound
Interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
Energy Use	270 W, 223 W (economy), 0.47 W (standby)
Dimensions Single Carton	363 x 397 x 160 mm
Carton Weight	4.12 Kg
