Attention
If the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction.
a
You can change the audio input source in Audio Output.
s Extended - A/V Settings - Audio Output p.89
If the source you want to connect to has an unusually shaped port, use the cable supplied with the device or an optional cable to connect to the projectors.
When using a commercially available 2RCA(L/R)/stereo mini-pin audio cable, make sure it is labeled "No resistance".
Connecting USB Devices
Only EB-X21/EB-S21/EB-X17/EB-S17 are supported.
You can connect devices such as USB memory, the optional Document Camera, and USB compatible hard disks and digital cameras.

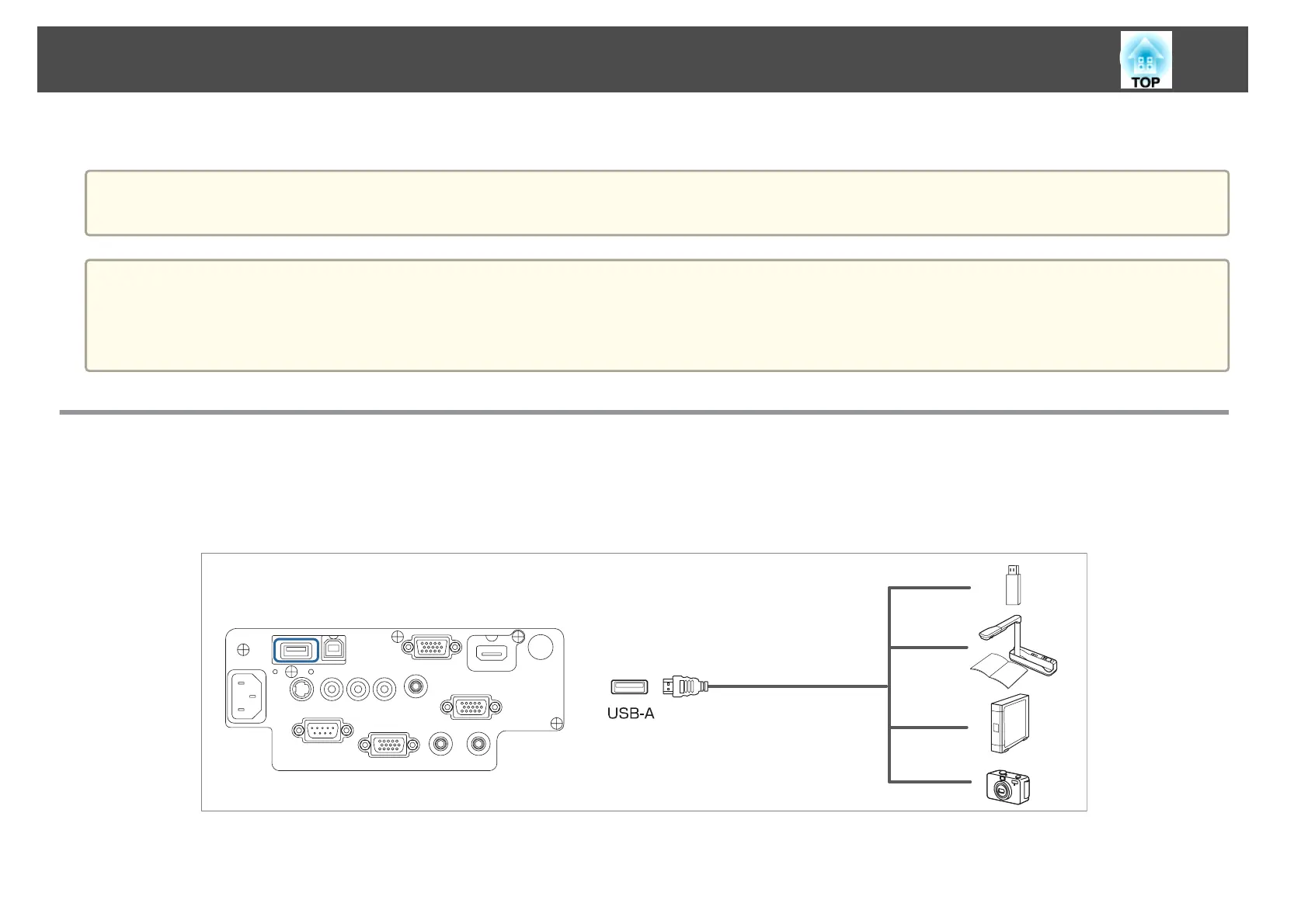

Using the USB cable supplied with the USB device, connect the USB device to the USB-A port on the projector.
When the USB device is connected, you can project image files on the USB memory or digital camera using PC Free.
s "PC Free examples" p.52
Connecting Equipment
27
