g
When the message "Save this image as the User's Logo?" is
displayed, select Yes.
The image is saved. After the image has been saved, the message
"Completed." is displayed.
a
When a User's Logo is saved, the previous User's Logo is
erased.
It takes a while to save. Do not operate the projector or any
connected equipment while it is saving, otherwise
malfunctions may occur.
Saving User Pattern
You can save the image that is currently being projected as a User Pattern.
a
When a User Pattern is saved, the previous User Pattern is erased.
a
Project the image you want to use as the User Pattern, and then
press the [Menu] button.
s
"Using the Configuration Menu" p.82
Using the remote control Using the control panel
b

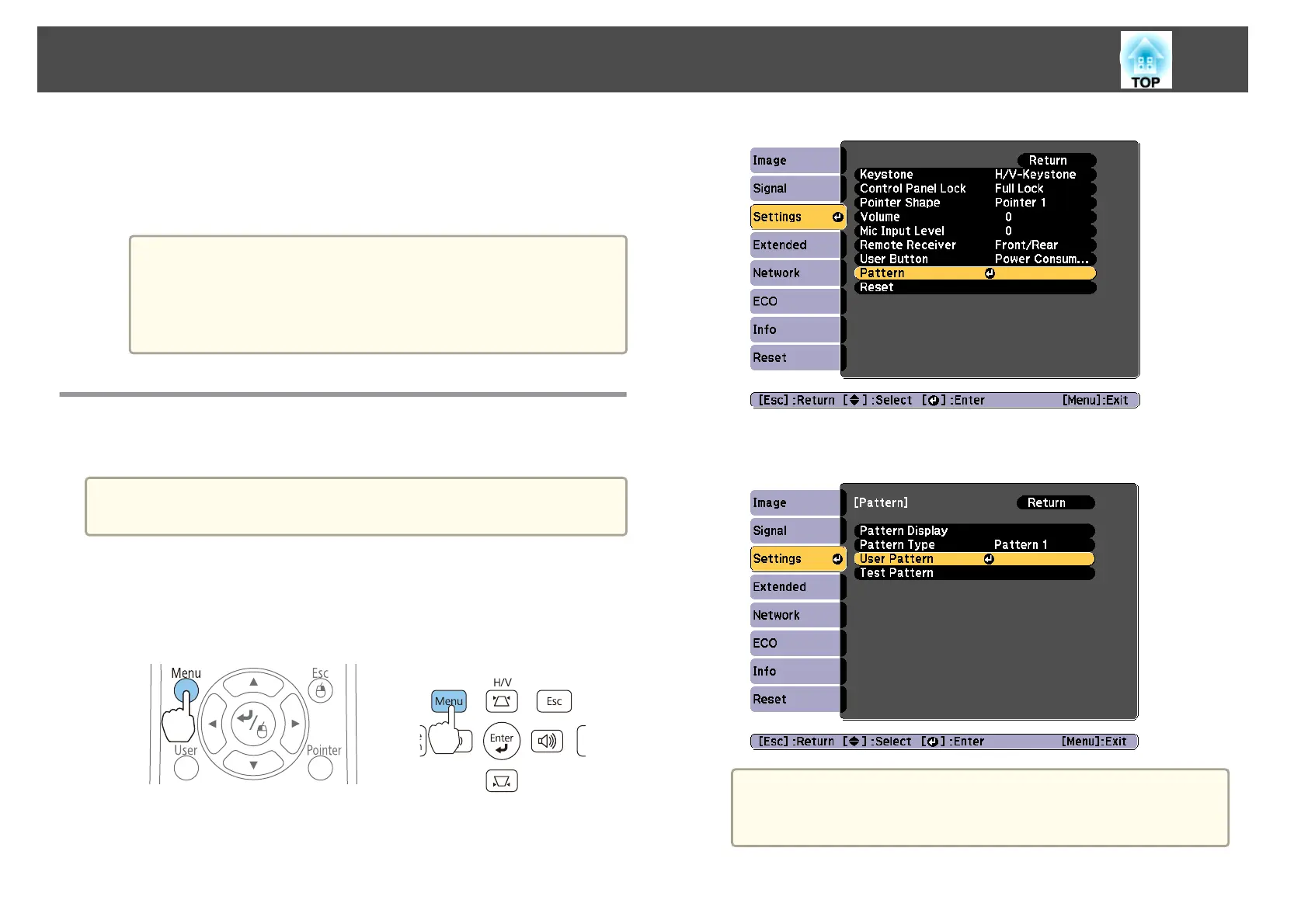

Select Pattern from Settings.
c
Select User Pattern.
a
If User Pattern is selected when one of the Keystone, E-Zoom,
Aspect, Progressive, and Zoom Adjustment functions is being
used, the function currently being used is cancelled temporarily.
Projection Functions
63
