Epson EB-X20 User Manual

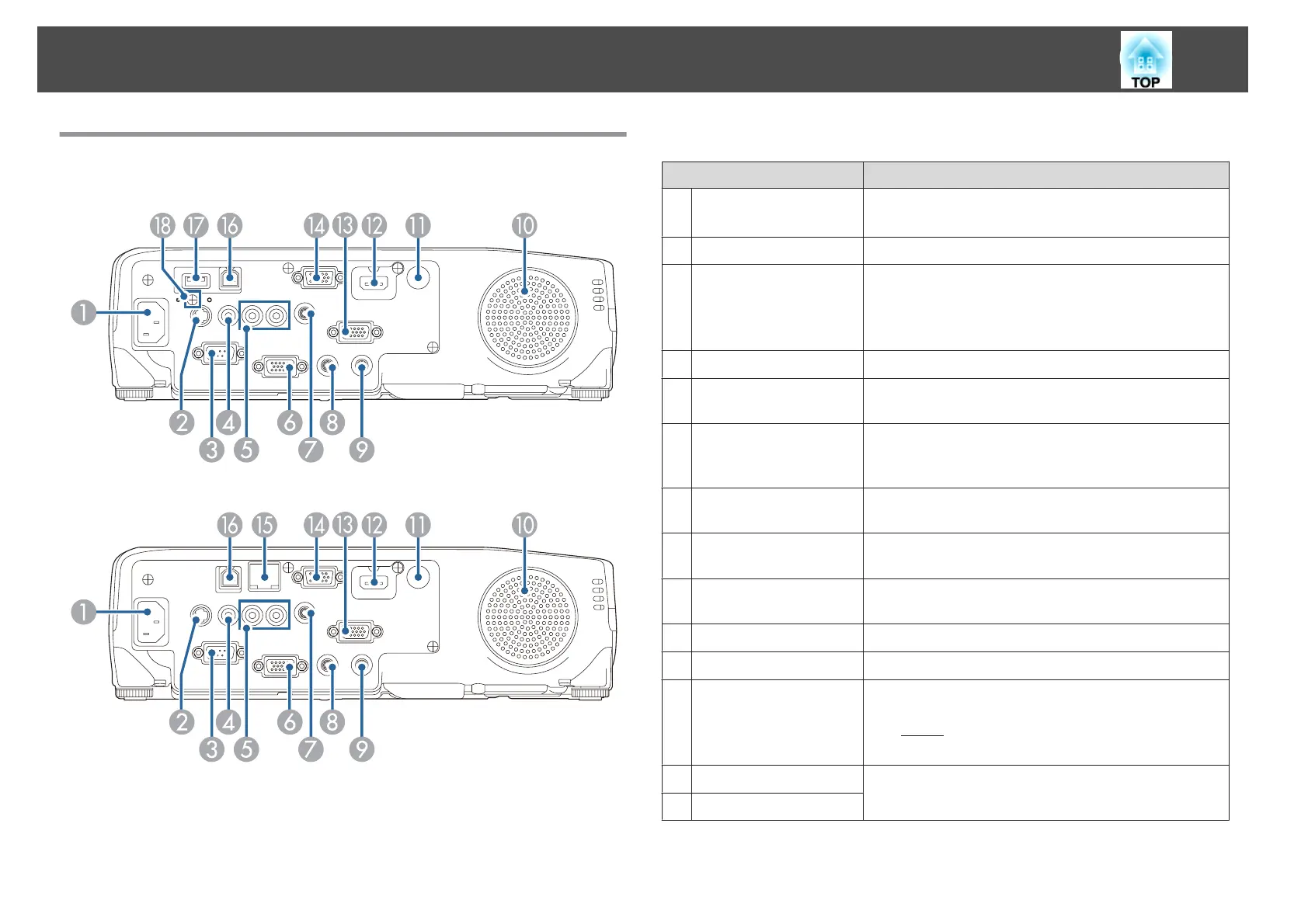

Rear
EB-X21/EB-S21/EB-X17/EB-S17
EB-X25/EB-W22/EB-X22/EB-X20
The ports vary depending on the model being used.
Name Function
A
Power inlet
Connects the power cord to the projector.
s "From Installation to Projection" p.34
B
S-Video port
For S-video signals from video sources.
C
RS-232C port
When controlling the device from a computer, connect it
to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.73
D
Video port
Inputs composite video signals from video sources.
E
Audio-L/R port
Inputs audio from equipment connected to the S-Video
port or the Video port.
F
Monitor Out port
Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
G
Audio1 port
Inputs audio from equipment connected to the
Computer1 port.
H
Audio Output port
Outputs audio from the currently projected image to an
external speaker.
I
Audio2 port
Inputs audio from equipment connected to the
Computer2 port.
J
Speaker
Outputs audio.
K
Remote receiver
Receives signals from the remote control.
L
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Image Sources" p.26
M
Computer2 port
Inputs image signals from a computer and component
video signals from other video sources.
N
Computer1 port
Part Names and Functions
13

Epson EB-X20 Specifications

General

Projection System	3LCD Technology
LCD Panel	0.55 inch with MLA (D8)
Color Light Output	2, 700 lumen - 1, 890 lumen (economy)
White Light Output	2, 700 lumen - 1, 890 lumen (economy)
Resolution	XGA, 1024 x 768, 4:3
Contrast Ratio	10, 000:1
Lamp	ETORL, 200 W, 5, 000 h durability, 6, 000 h durability (economy mode)
Keystone Correction	Auto vertical: ± 30°, Manual horizontal ± 30°
Projection Ratio	1.48 - 1.77:1
Zoom	Manual, Factor: 1.2
Projection Size	30 inches - 300 inches
Projection Distance Wide/Tele	1.8 m - 2.17 m (60 inch screen)
Projection Lens F Number	1.58 - 1.72
Focal Distance	16.9 mm - 20.28 mm
Focus	Manual
Offset	8:1
USB Display Function	3 in 1: Image / Mouse / Sound
Interfaces	USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Component in (2x), S-Video in, RGB in (2x), Stereo mini jack audio out, Stereo mini jack audio in (2x), Cinch audio in
Energy Use	270 W, 223 W (economy), 0.47 W (standby)
Dimensions Single Carton	363 x 397 x 160 mm
Carton Weight	4.12 Kg
