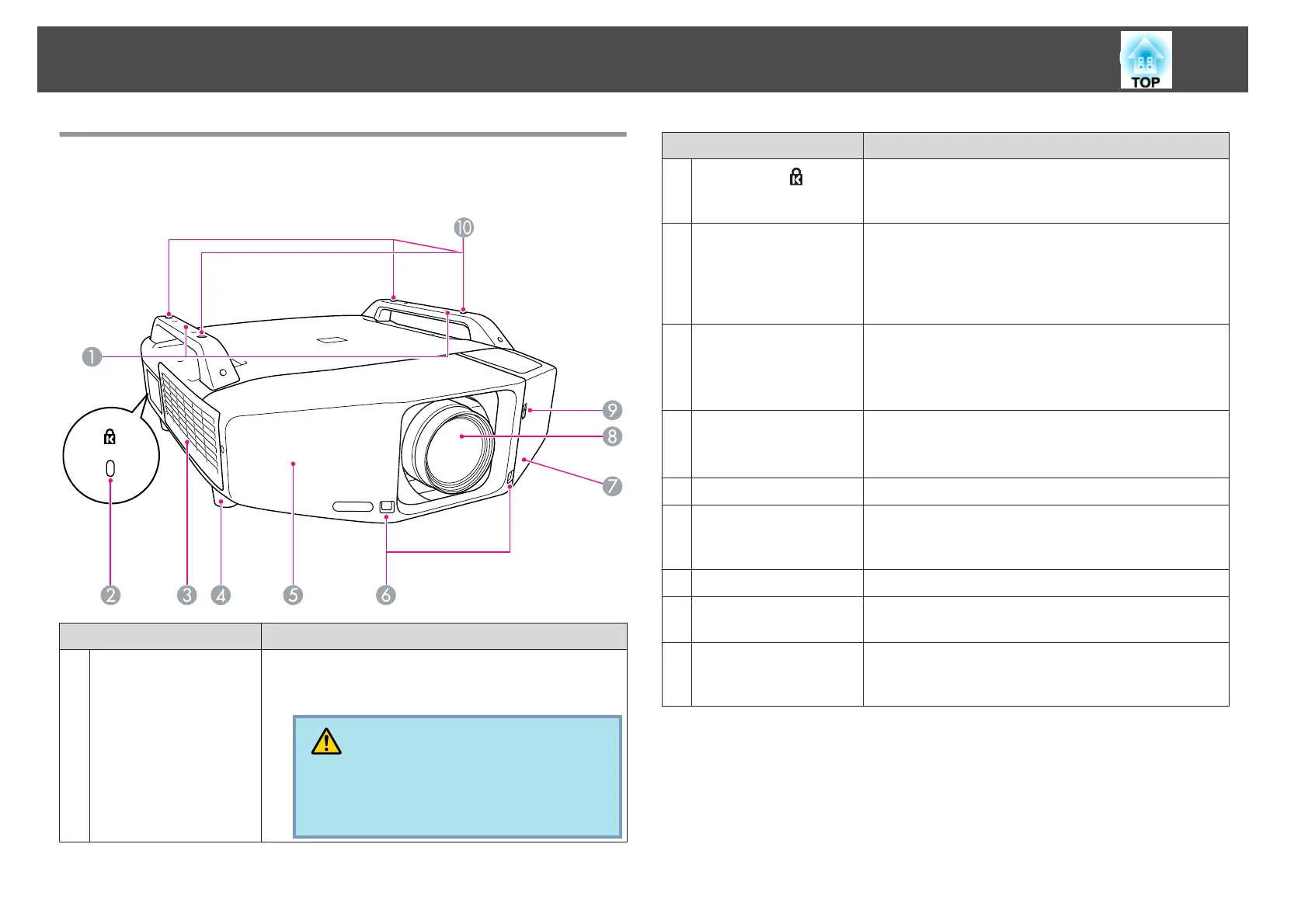

Front/Top
The illustration shows the projector with a standard zoom lens installed.
Name Function
A
Handle
Use these handles when carrying the projector. Also, you
can pass an anti-theft wire lock through the handles to
secure the projector. s p.43
Caution
Do not carry the projector by one person.
Two people are needed to unpack or carry the pro-
jector.
Name Function
B
Security slot( )
The Security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s
p.43
C
Air intake vent
(Air filter)
Takes in air to cool the projector internally. If dust collects
here it can cause the internal temperature to rise, and this
can lead to problems with operation and shorten the
optical engine's service life. Be sure to clean the air filter
regularly. s p.98, p.104
D
Front adjustable foot
When set up on a desk, turn to extend and retract to adjust
the horizontal tilt.
The front adjustable feet can be removed when the
projector is installed on a ceiling. s p.168
E
Front cover
Remove this cover to remove or install the lens unit when
replacing the lens. s p.162
This cover must be installed when using the projector.
F
Remote Receiver
Receives signals from the remote control. s p.18
G
Interface cover
Remove this cover to connect cables to the ports inside
when connecting the projector to video equipment.
s p.13, p.166
H
Projection lens
Images are projected through here.
I
Interface cover open/
close switch
Opens and closes the interface cover. s p.166
J
Ceiling mount fixing
points
(Four points)
Attach the optional Ceiling mount here when suspending
the projector from a ceiling. s p.130, p.170
Part Names and Functions
11
