Epson EH-TW5825 User Manual

Introduction
7
Name Function
i
Air filter cover
When replacing the air filter, open this cover and remove the air filter. s p.65
j
Security slot ( )
The security slot compatible with the MicroSaver security system manufac-
tured by Kensington. For more details, visit the homepage of Kensington at
http://www.kensington.com/.
k
Focus adjuster (EH-
TW5825)
Focus ring (EH-TW5705)
Adjusts the image focus. s p.26
l
Zoom adjuster (EH-
TW5825)
Zoom ring (EH-TW5705)
Adjusts the image size. s p.26
m
Lens shift dial (EH-
TW5825 only)
Moves the position of the image vertically. s p.27
n
Horizontal keystone ad-
juster
Performs horizontal keystone correction. s p.28
o
Control panel
Operates the projector. s p.7

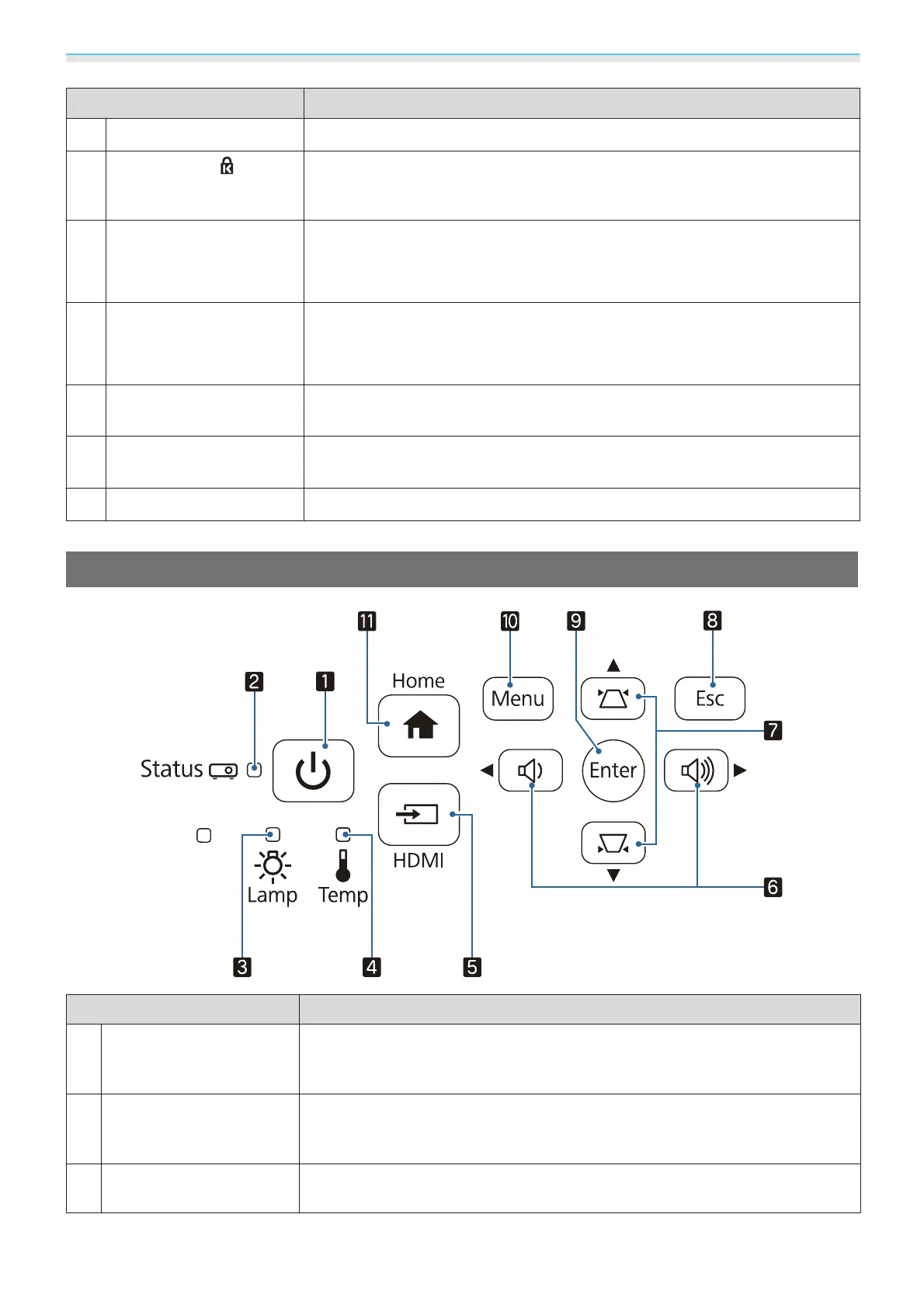

Control Panel
Name Function
a
Standby button
(Standby indicator)
Turns the projector on or off. s p.24
Shows the projector's status through a combination of other indicators lit and
flashing.
s p.53
b
Status indicator
Flashes blue to indicate the projector is warming up or cooling down. Shows
the projector's status through a combination of other indicators lit and flashing.
s p.51
c
Lamp indicator
Flashes orange when it is time to replace the lamp. Shows the projector's errors
through a combination of other indicators lit and flashing.
s p.51

Epson EH-TW5825 Specifications

General

Matrix size	0.61 \
Heat dissipation	1009.8 BTU/h
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	2.35 - 3.82 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	70000:1
Screen size compatibility	30 - 300 \
Projector native resolution	1080p (1920x1080)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	1780 ANSI lumens
3D	No
Full HD	Yes
Video processing	10 bit
Video color modes	Cinema, Dynamic, Natural, Bright cinema
Analog signal format system	Not supported
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	7500 h
Throw ratio	1.33 - 2.00:1
Focal length range	18.2 - 29.2 mm
Aperture range (F-F)	1.51 - 1.99
Vertical lens shift range	-60 - 60 %
Noise level	36 dB
Country of origin	Philippines
Operating system installed	Android
Noise level (economic mode)	28 dB
Placement	Ceiling, Desktop
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
RMS rated power	10 W
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	297 W
Power consumption (economy mode)	227 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	66 pc(s)
Harmonized System (HS) code	85286200
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0

Weight and Dimensions

Depth	315 mm
Width	309 mm
Height	122 mm
Weight	3800 g
Package depth	410 mm
Package width	380 mm
Package height	180 mm
Package weight	5280 g
