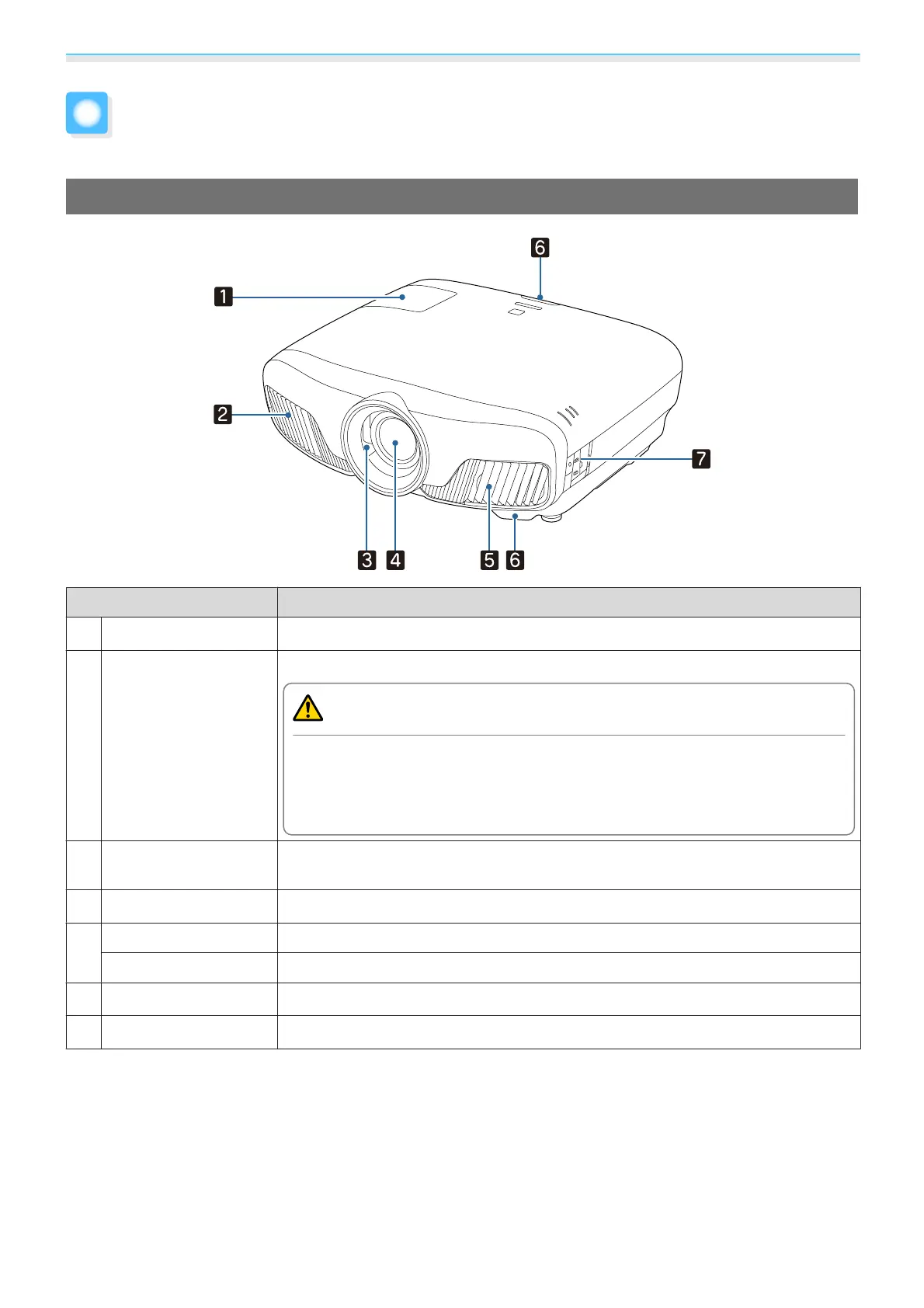

Part Names and Functions
Front/Top
Name Function
a
Lamp cover
Open when replacing the projector's lamp. s p.109
b
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.
c
Lens shutter
Links to the projector's power on/off function, and automatically opens and closes
the shutter.
s p.25
d
Lens
Images are projected from here.
e
Air intake vent
Intake vent for air used to cool the projector internally.
Air filter cover
When replacing the air filter, open this cover and remove the air filter. s p.108
f
Remote receiver
Receives signals from the remote control. s p.23
g
Control panel
Operates the projector. s p.7
