Epson ELPMB67 User Manual

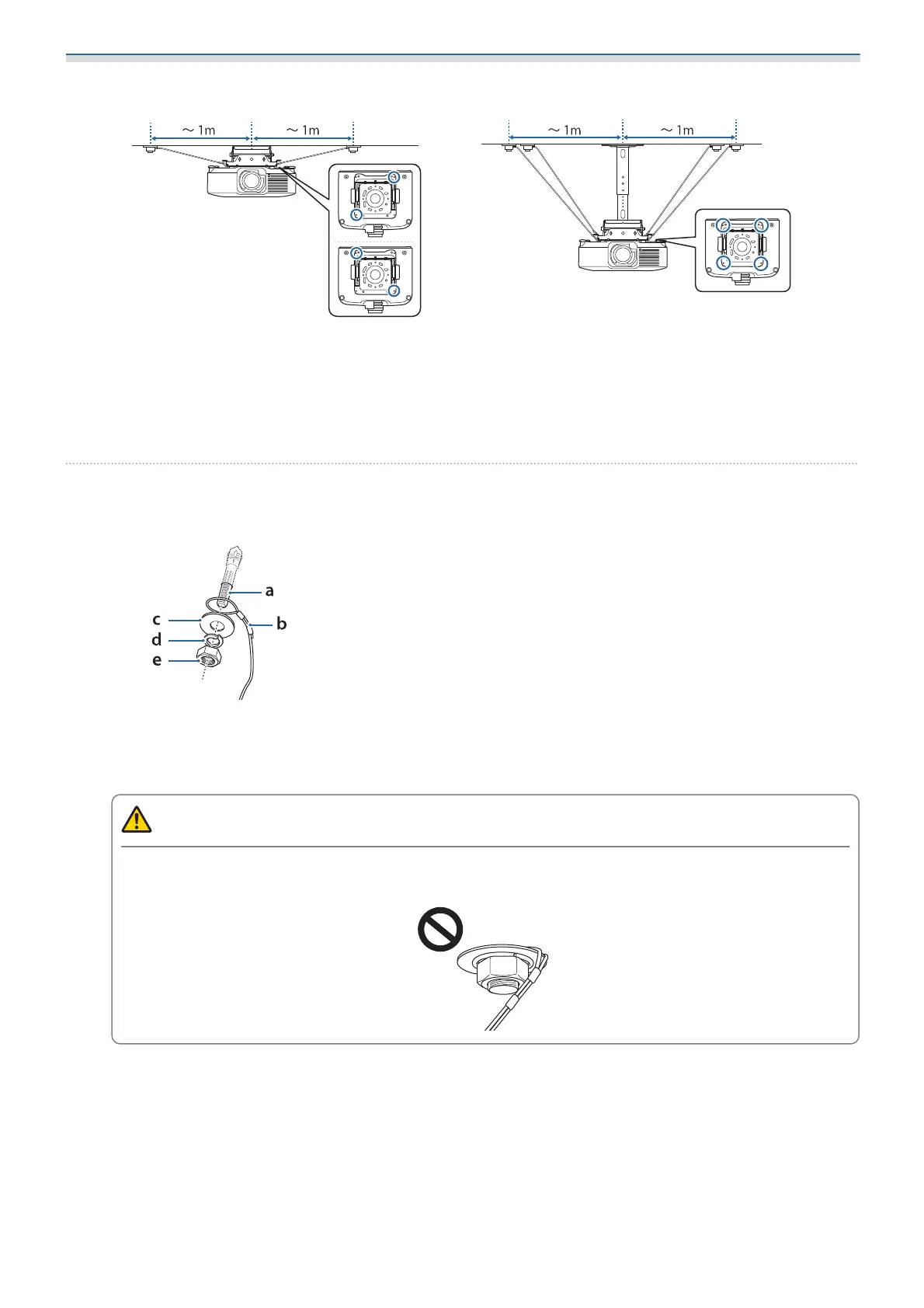

Installation Method
21
ELPMB67+ELPFP15
ELPMB67
•
We recommend installing the anchor bolts on the ceiling within 1 meter from the center of this product.
•
If you are only using the ELPMB67, install the 2 wires diagonally.
•
If you are using the ELPMB67 in combination with the ELPFP15, install the 4 wires.
Installing
a
Secure the end of the safety wire (the end with a loop) to the ceiling using a commercially
available anchor bolt (M12)
a:
Anchor bolt
b:
Safety wire
c:
Flat washer (diameter 24 to 26 mm)
d:
Spring washer
e:
Hexagon nut
Hold the wire with the flat washer and the spring washer, and tighten the hexagon nut to secure it in
place.
Make sure that the loop on the safety wire does not protrude beyond the flat washer.
Caution
Make sure that the loop on the safety wire is not bent at a sharp angle. This could cause damage to
the wire.
