2.3.8 E2PROM Control Circuit
c’
“4
Figure 2-31 shows the E2PROM control circuit. The E2PROM is non-volatile memory containing information . .
such asthetop-of-form position. Because the E2PROM is a serial 1/0 device, the gate array converts the parallel
data (sent from the host computer) into serial data.
E2 PROM ([C5C1)
E05A66YA (IC4)
CPU (IC2C1)
Data Bus
SCL SCK
SDA
SDA

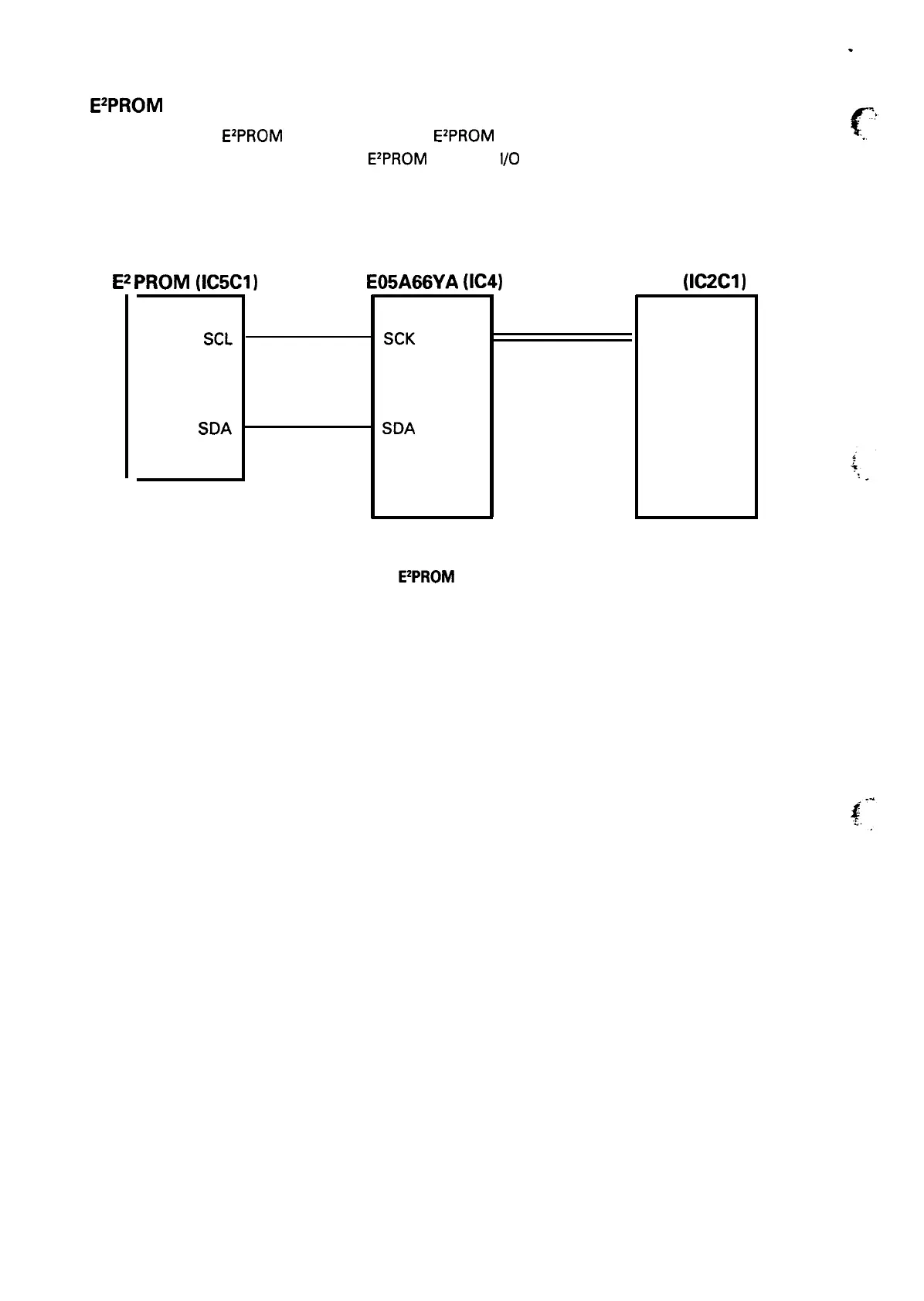

Figure 2-31. E2PROM Control Circuit
