Epson FX 1170 - B/W Dot-matrix Printer - Pre-Disessembly Procedures

REV.-A
3.2.1 Pre-disassembly Procedures
[STEP 11
Remove the PAPER GUIDE ASSEMBLY, top cover, front cover, paper eject cover, and tractor unit.
Front Cover

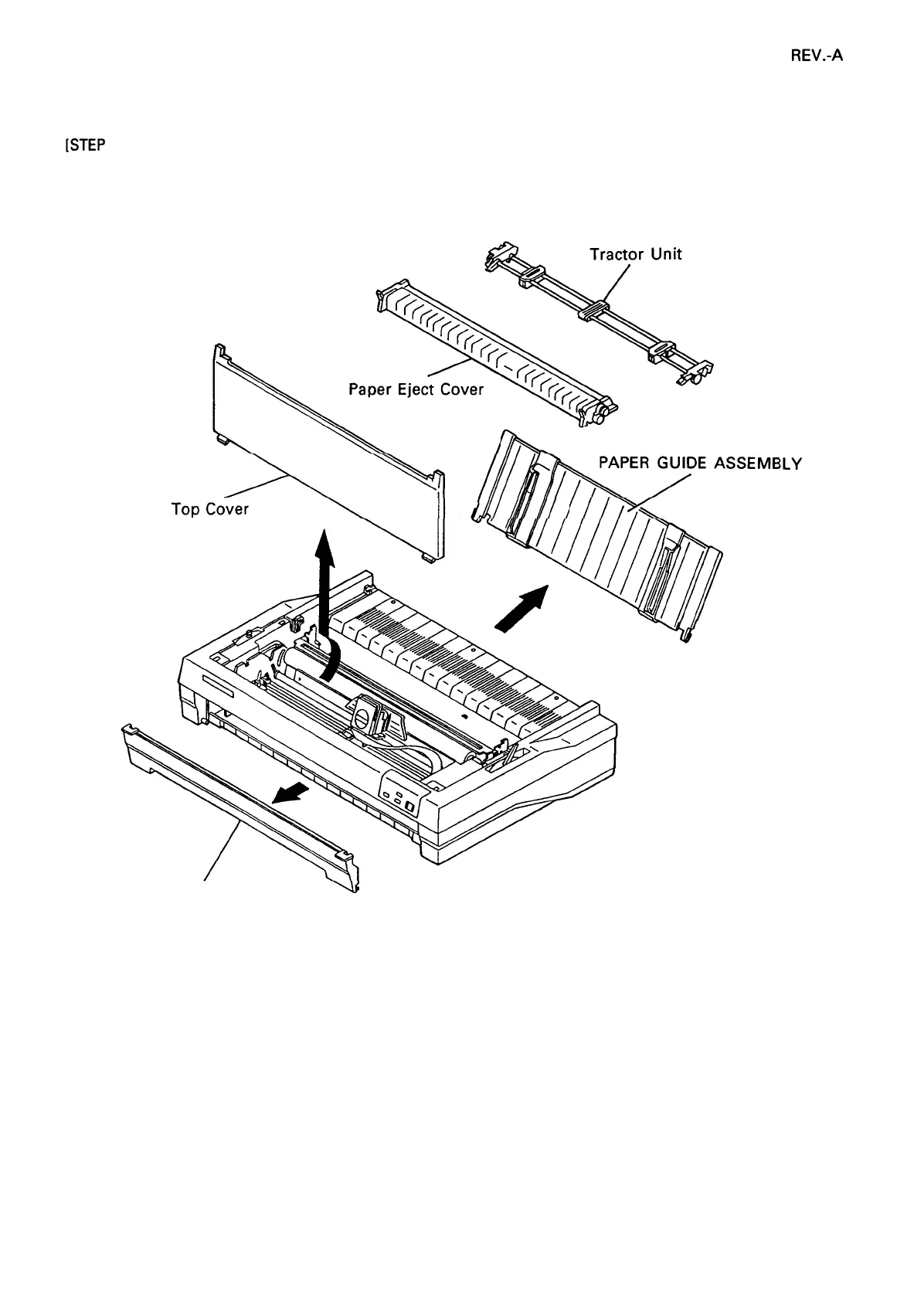

Figure 3-2. Removing the PAPER GUIDE ASSEMBLY
LY
Note: Remove the paper eject cover and the tractor unit by pushing and releasing the hooks at both
sides. When remounting them, be sure to snap these hooks on the projecting parts.
3-5
