Epson FX 1170 - B/W Dot-matrix Printer - Removing the PLATEN ASSEMBLY

REV.-A
3.2.5.1 Removing the PLATEN ASSEMBLY
(
:).
[STEP 1] Remove the PAPER GUIDE ASSEMBLY, top cover, front cover, paper eject cover and tractor unit.
(See Section 3.2.1.)
[STEP 21
Remove the PANEL UNIT. (See Section 3.2.2.) -
[STEP 31
Remove the HOUSING ASSEMBLY, UPPER. (See Section 3.2.4.)
[STEP 4] Remove the two CBS (M3X8) screws securing the COVER, PLATEN.
[STEP 51
Disengage the teeth of the PLATEN SHAFT HOLDERS and rotate them.
[STEP 61
Remove the PLATEN KNOB.
[STEP 7]
Slide the PLATEN ASSEMBLY and remove it.
h
, CBS (M3X8)
PLATEN KNOB
.DER
>,-,%,
{’
,. “
,
=
.

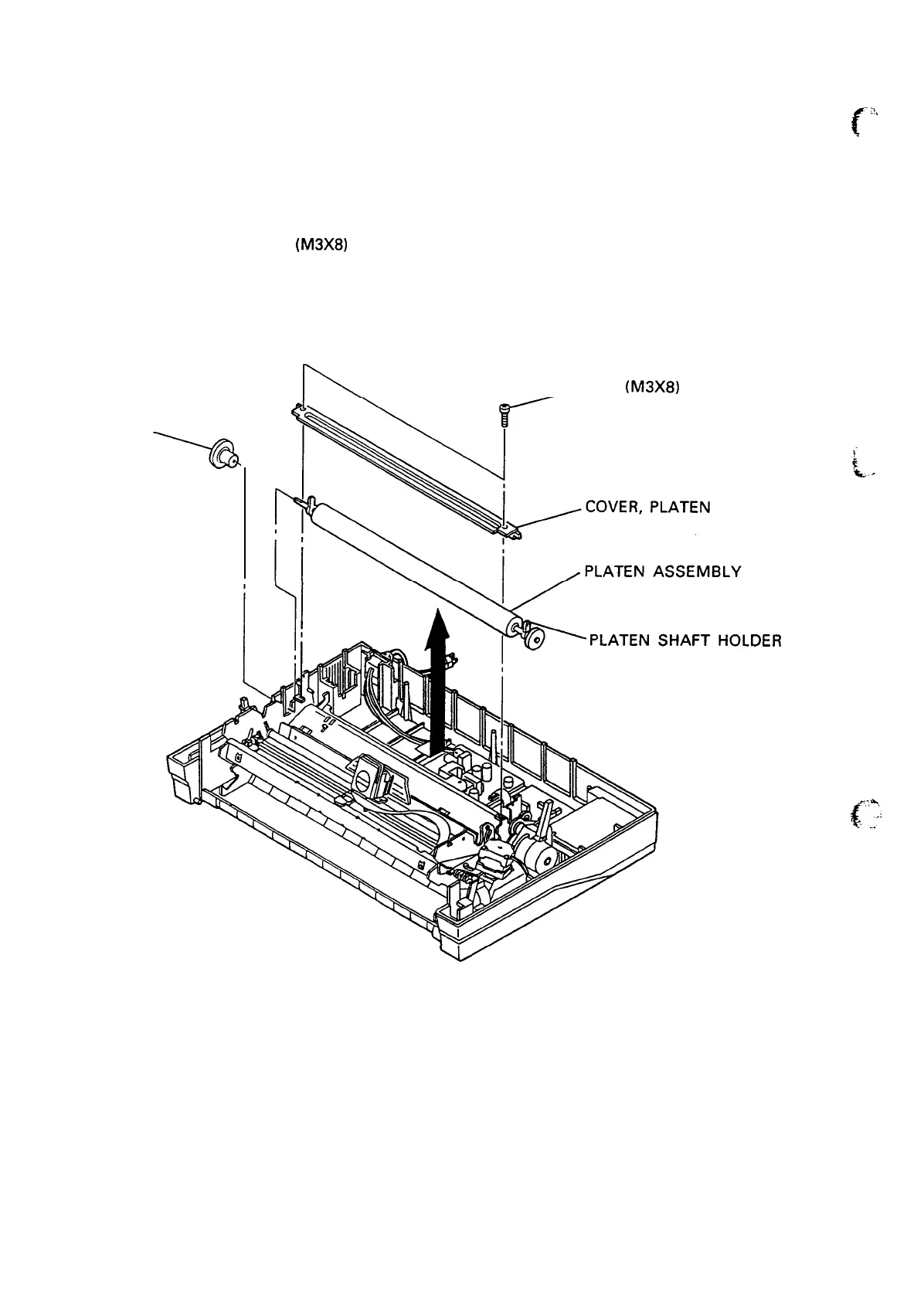

Figure 3-8. Removing the PLATEN ASSEMBLY
