Epson FX Series

GENERAL

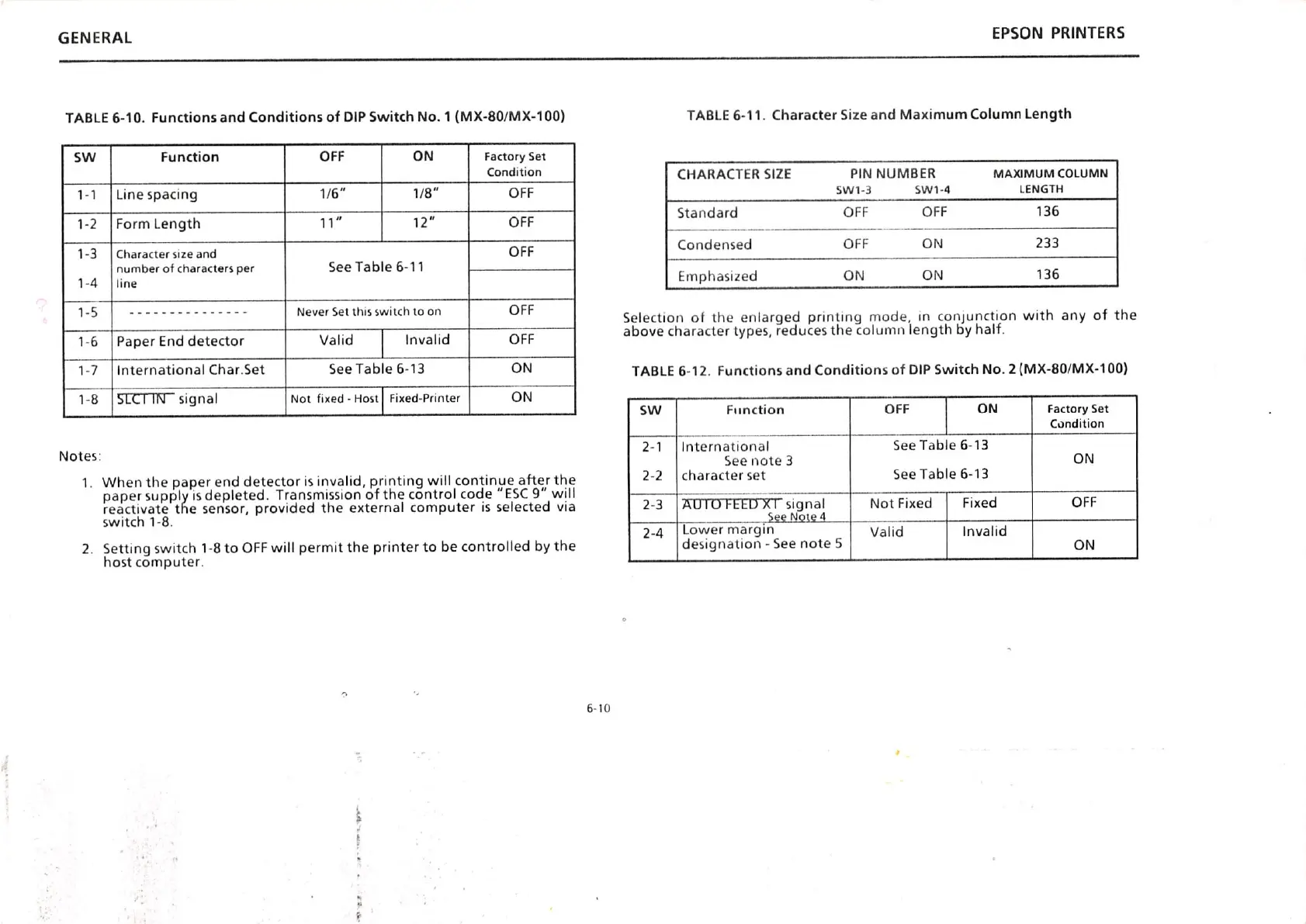

TABLE 6-10. Functions and Conditions of DIP Switch No. 1 (MX-80/MX-100)
SW
Function
OFF
ON Factory Set
Condition
1-1 Line spacing
1/6"
1/8"
OFF
1-2 Form Length
ir 12"
OFF
1-3
Character size and
number of characters per
line
Tahlof^.n
OFF
1-4
1-5
Never Set this switch to on
OFF
1-6
Paper End detector
Valid
Invalid
OFF
1-7
International Char.Set
See Table 6-13
ON
1-B
SLCI IN signal
Not fixed - Host
Fixed-Printer
ON
Notes:
1. Whenthe paper end detector is invalid, printing will continue after the
paper supply isdepleted. Transmission of the control code "ESC 9" will
reactivate the sensor, provided the external computer is selected via
switch 1-8.
2. Setting switch 1-8to OFF will permit the printer to be controlled bythe
host computer.
t'-
'1 .-I
6-10
EPSON PRINTERS
TABLE 6-11. Character Size and Maximum Column Length
CHARACTER SIZE
PIN NUMBER
MAXIMUM COLUMN
SW1-3
SW1-4
LENGTH
Standard
OFF
OFF
136
Condensed
OFF
ON
233
Emphasized
ON
ON
136
Selection of the enlarged printing mode, in conjunction with any of the
above character types, reduces the column length by half.
TABLE6-12. Functions and Conditions of DIP Switch No. 2 (MX-80/MX-100)
SW
Function
OFF
ON
Factory Set
Condition
2-1
2-2
International
See note 3
character set
See Table 6-13
SeeTable 5-13
ON
2-3
AUlUhthUXi signal
See Note 4
Not Fixed
Fixed
OFF
2-4
Lower margin
designation - See note 5
Valid
Invalid
ON
