5. Slide the right sprocket to match the width of your paper, but
do not lock it. Move the paper support midway between the
two sprockets as shown above.
6. Open both sprocket covers. Make sure your paper has a
clean, straight edge and fit the first four holes of the paper,
printable side up, over the tractor pins. Then close the
sprocket covers.

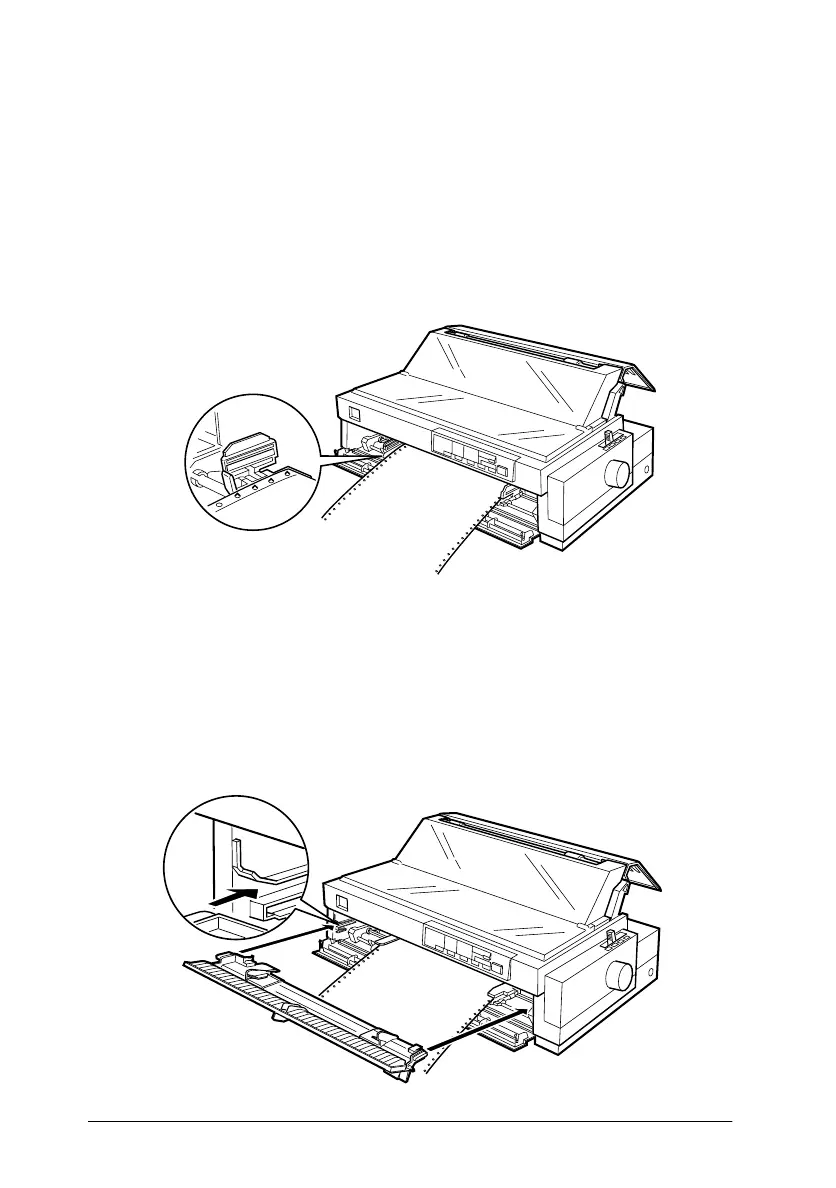

7. Slide the right sprocket to remove any slack in the paper; then
lock it in place by pushing the sprocket lock down.
8. Attach the front paper guide by sliding it along the printer’s
mounting slots as shown below. Then close the front paper
guide.
