2. Installation
RC180 Safety and Installation Rev.18
50

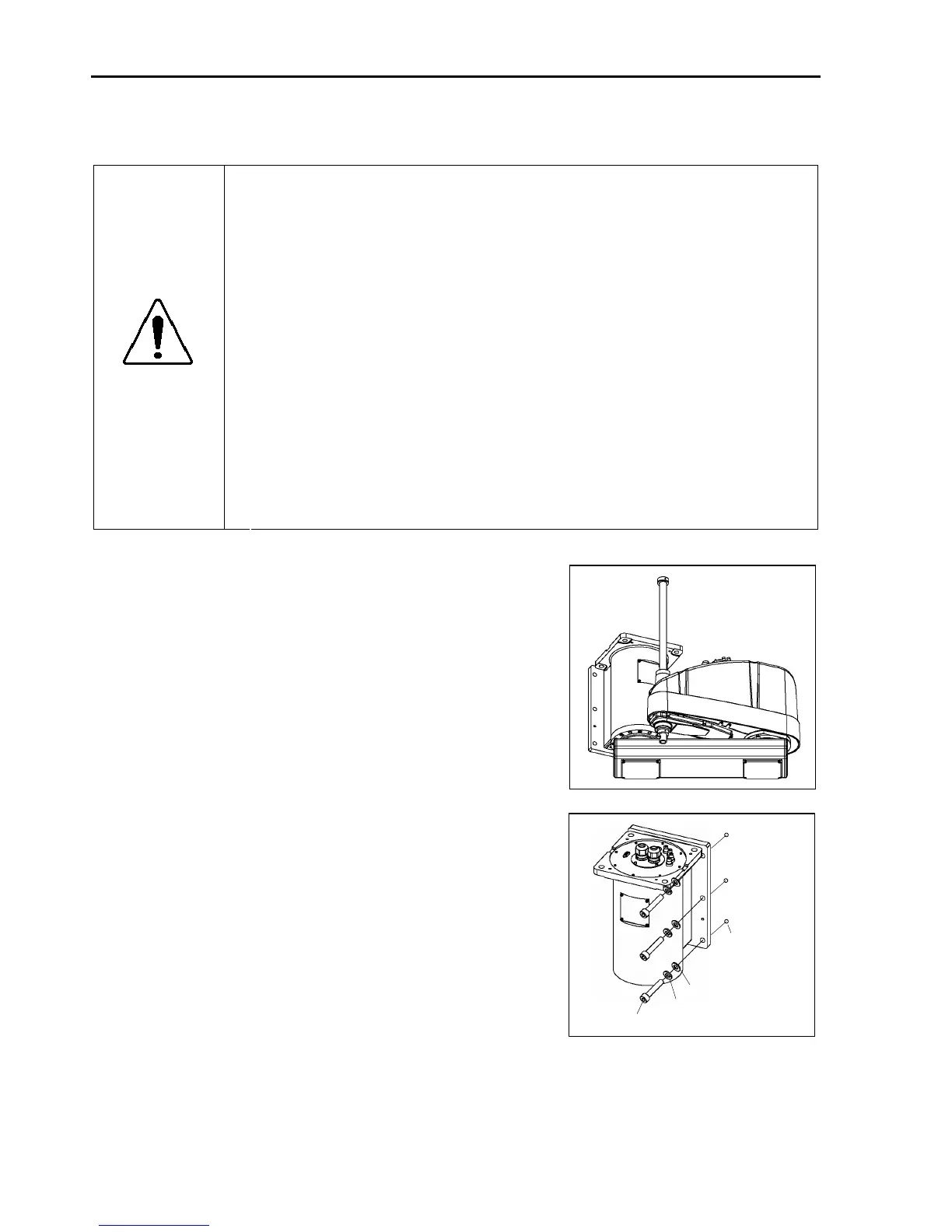

G10/G20 : Wall Mounting
■
Install the Wall Mounting Manipulator with four or more people.
The Manipulator weights are as follows. Be careful not to get
hands, fingers, or feet caught and/or have equipment damaged by
a fall of the Manipulator.
G10-65**W : Approximately 51 kg :113 lb.
G10/G20-85**W : Approximately 53 kg :117 lb.
G20-A0**W : Approximately 55 kg :122 lb.
WARNING
■
When installing the Manipulator to the wall, support the
Manipulator, and then secure the anchor bolts. Removing the
support without securing the anchor bolts properly is extremely
hazardous and may result in fall of the Manipulator.
(1)
Unpack the manipulator with retaining
the arm posture.
(2)
Secure the base to the wall with six bolts.
Use bolts with specifications conforming
to ISO898-1 Property Class: 10.9 or 12.9.
(3) Remove the shipping bolt and jigs.
Screw Hole
(depth 20 mm
or more)
6-M12
×
40
Spring Washer
Plane Washer
)
