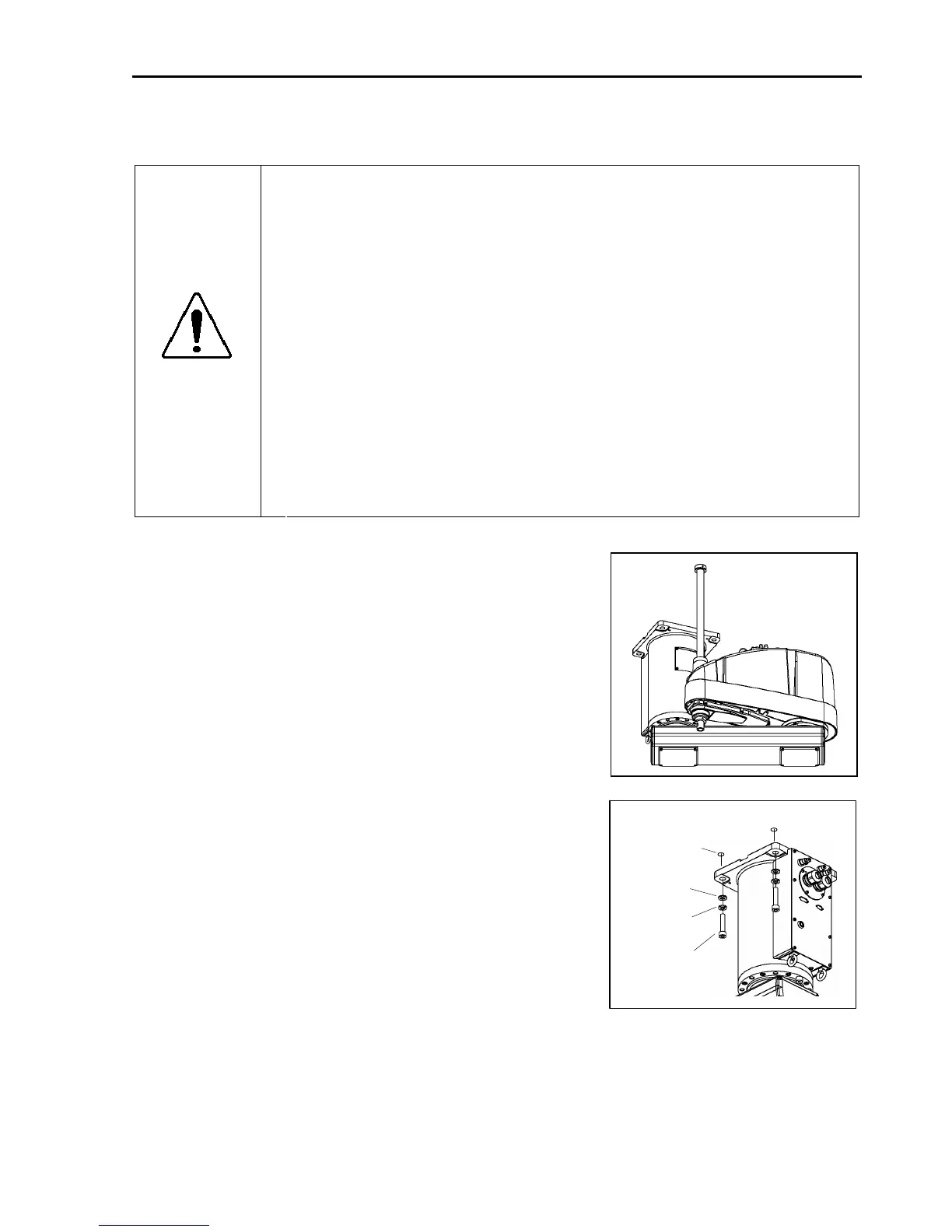

G10/G20 : Ceiling Mounting
■
Install the Ceiling Mounting Manipulator with four or more people.
The Manipulator weights are as follows. Be careful not to get hands,
fingers, or feet caught and/or have equipment damaged by a fall of
the Manipulator.
G10-65**R : Approximately 46 kg :102 lb.
G10/G20-85**R : Approximately 48 kg :106 lb.
G20-A0**R : Approximately 50 kg :111 lb.
WARNING
■
When installing the Manipulator to the ceiling, support the
Manipulator, and then secure the anchor bolts. Removing the
support without securing the anchor bolts properly is extremely
hazardous and may result in fall of the Manipulator.
(1)
Unpack the manipulator with retaining the
arm posture.
(2)
Secure the base to the ceiling with four
bolts.
Use bolts with specifications conforming
to ISO898-1 Property Class: 10.9 or 12.9.
(3) Remove the shipping bolt and jigs.
Screw Hole
(depth 20 mm or more)
4-M12
×
40
Spring
Washer
Plane
Washe
r
)
