Epson RC700-A Maintenance Manual

Maintenance 8. Maintenance Parts Replacement Procedures
54 RC700 Series Maintenance Rev.3
MDB

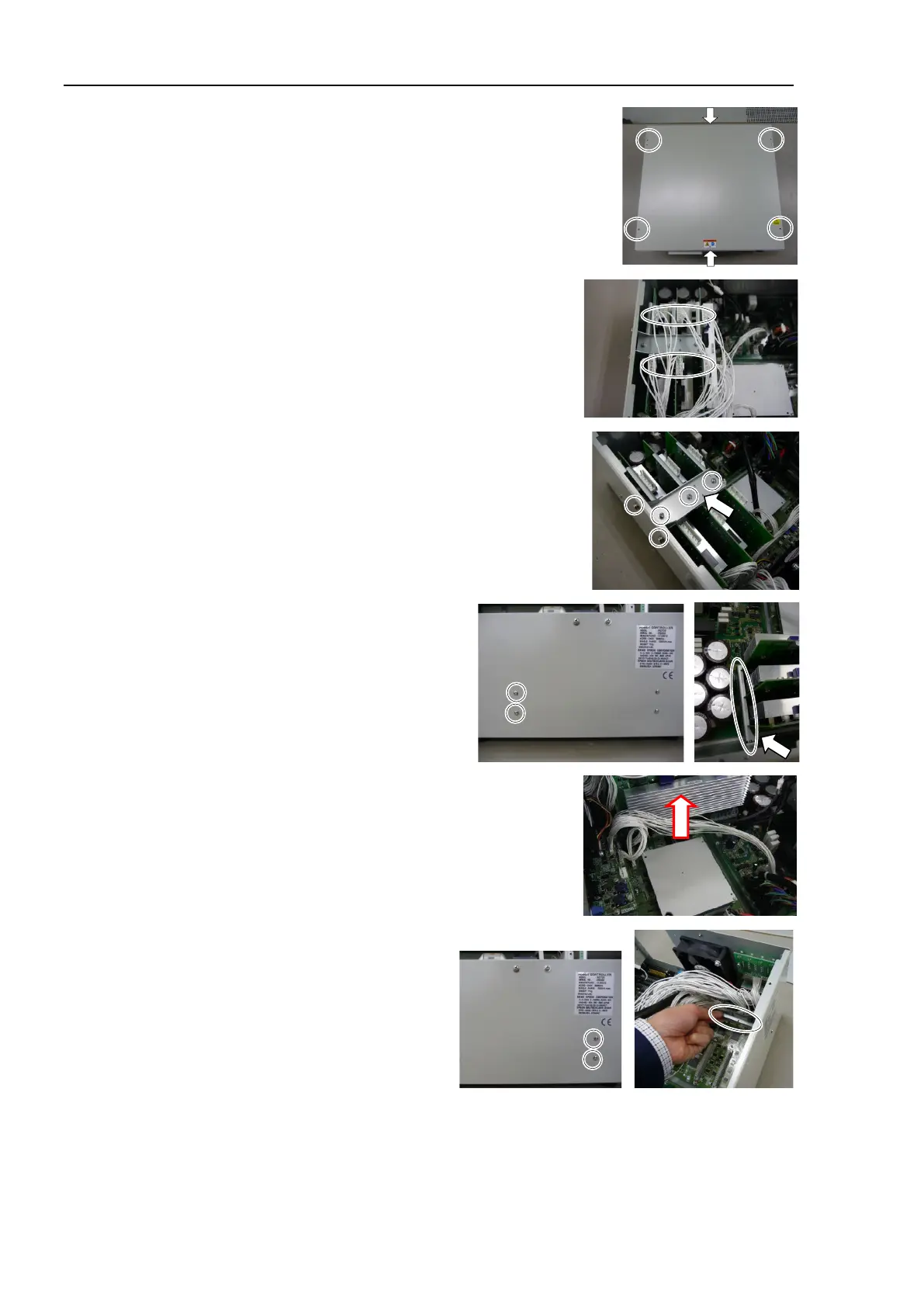

Removal
(1)
Turn OFF the Controller.
(2)
Disconnect the power plug
.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the output cable
s of each axis of the MDB.
Before removing the cables, check positions of the
board
s and the cables. Install them to the same
positions after the replacement.
(5)
Remove the MDB clamp 1.
(Mounting screw ×5)
(6)
Remove the MDB clamp 2.
(Mounting screw ×2)
(7)
Pull out the MDBs in the direction shown in the
picture.
When removing the MDBs, make sure
to
remember
the position of each board. Install the
boards to the same positions after replacement.
(8)
Remove the MDB clamp 3.
(Mounting screw
×2)

NOTE

NOTE
