Epson SC-P20000 SERIES User Manual

C

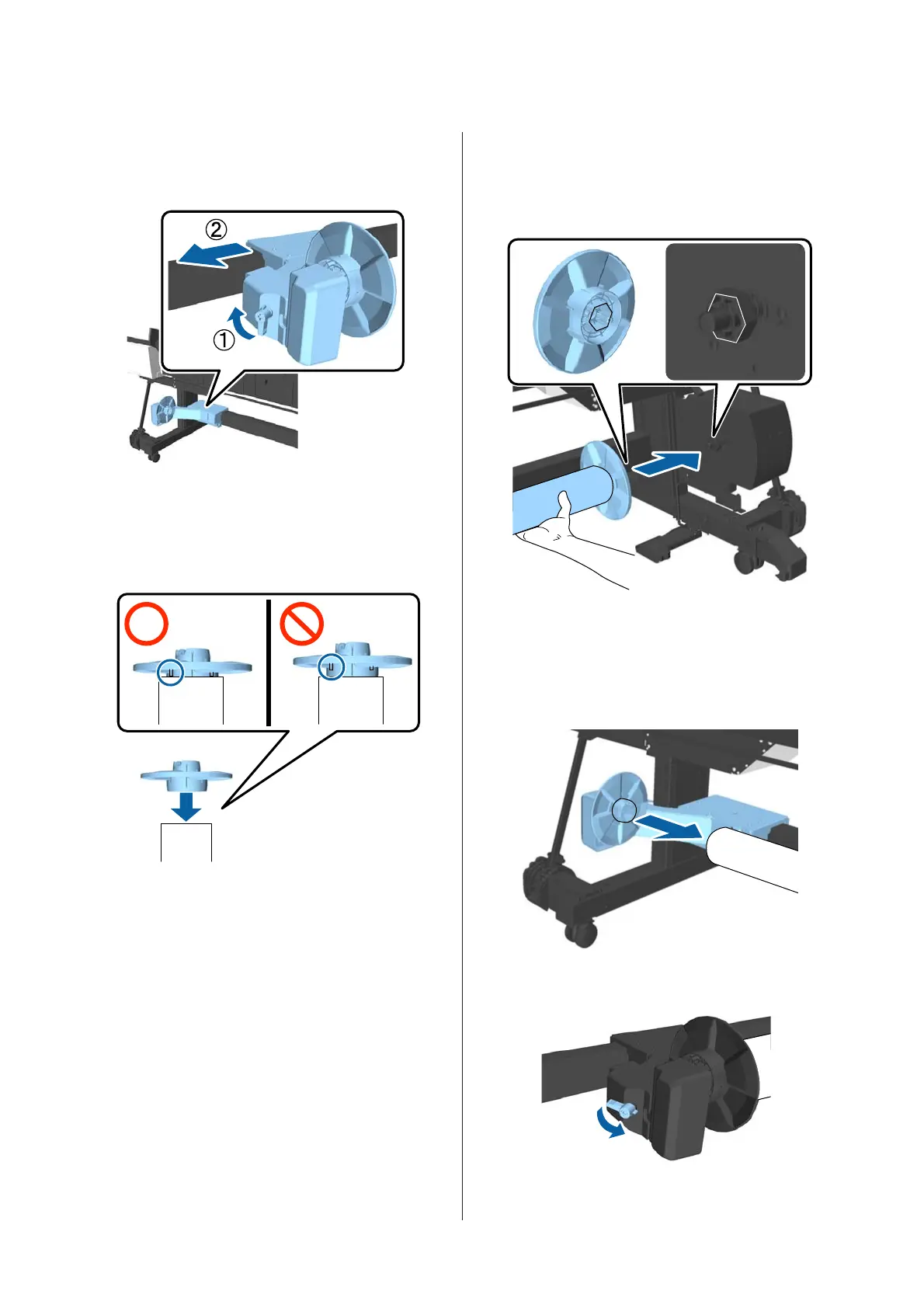

Unlock the unit on which flange L is installed,
and then move it until it is to the left of the roll
core width to install.
D
Insert flange R into the roll core.
Insert the roll core over the protruding section
of the flange until it contacts the surface of the
flange.
E
Install the roll core with the flange attached
into the unit on the right of the printer.
Align with the hexagonal joint, and insert until
you hear it click into place.
F
Move the unit on the left of the printer, and
insert the flange in the end of the roll core.
Move the unit until the roll core contacts with
the protruding section of the flange.
G
Lock the unit.
SC-P20000 Series/SC-P10000 Series User's Guide
Basic Operations
49
