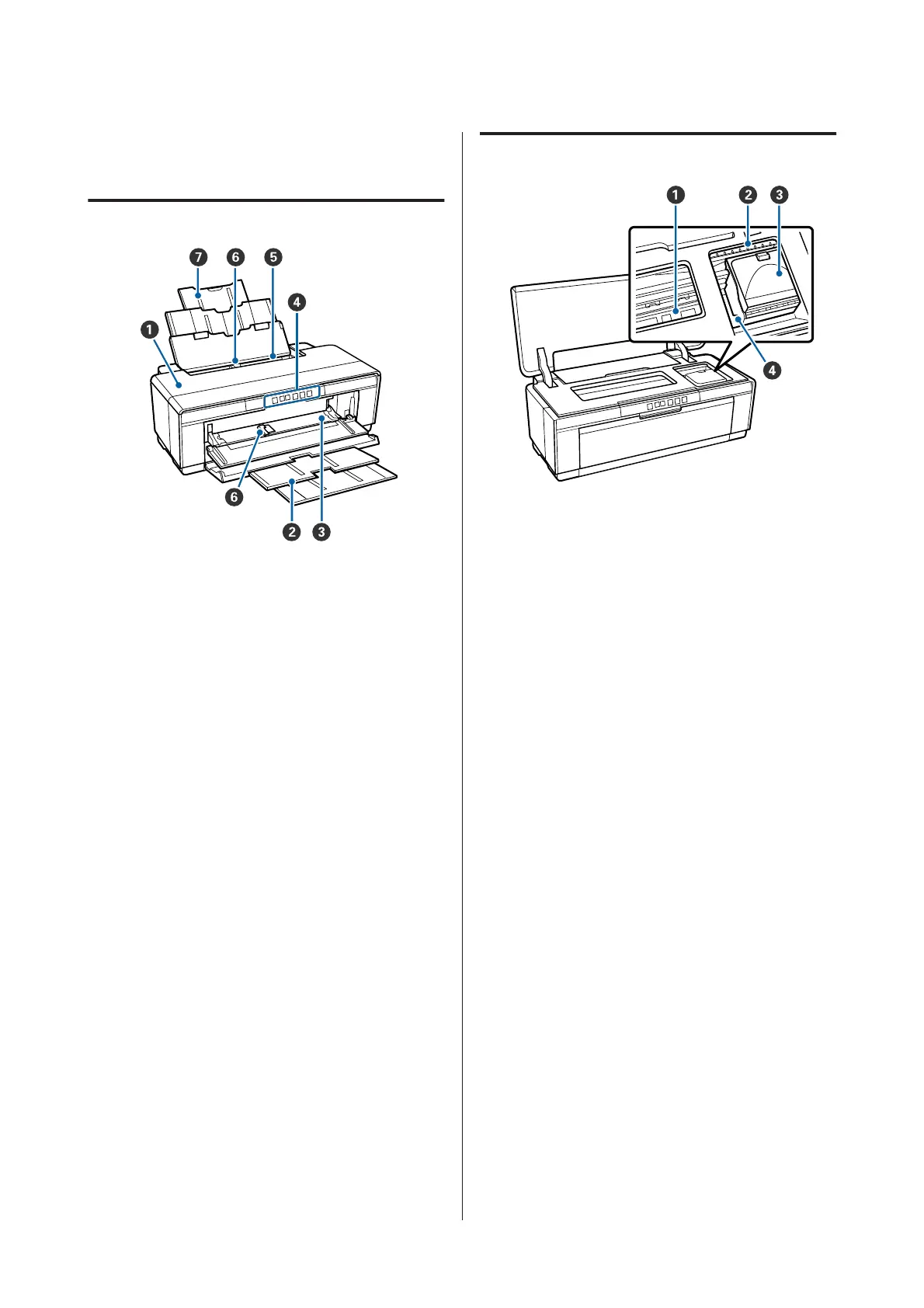

Printer Parts
Front
A Printer cover
Open in the event of a paper jam or when replacing
ink cartridges. The cover is normally closed when
the printer is in use.
B Output tray
Ejected paper is collected here. Extend the tray when
using the printer.
C Front manual feed tray
Open when inserting thick paper or the CD/DVD
tray.
D Control panel
U “Control panel” on page 10
E Auto sheet feeder
Automatically feeds paper.
F Edge guide
Move left or right depending on the size of the paper
that you want to load. This prevents paper being fed
at a slant.
G Paper support
Supports paper to prevent it from falling forward or
backward.
Inside
A Ink absorber
Absorbs ink that bleeds past the edge of the paper
during borderless printing.
B Ink check light
The light for the affected ink cartridge lights or
blinks when the cartridge is running low or needs to
be replaced, or when other ink-related errors occur.
The display is the same as the ink light in the control
panel.
U “Lights” on page 85
C Cartridge cover
Open when replacing ink cartridges.
U “Replacing Ink Cartridges” on page 80
D Print head
Fires ink via high density nozzles while moving left
and right to print. Do not move the print head by
hand.
