Epson SC-P9000 Series - Back

H Paper feed slot
Insert the paper into this slot.
U “Loading and Removing the Roll Paper” on page 28
U “Loading and Removing Cut Sheets” on page 34
I Roll paper cover
Open to load roll paper.
J Adapter holder
The roll paper adapter is placed in this holder when loading the roll paper.

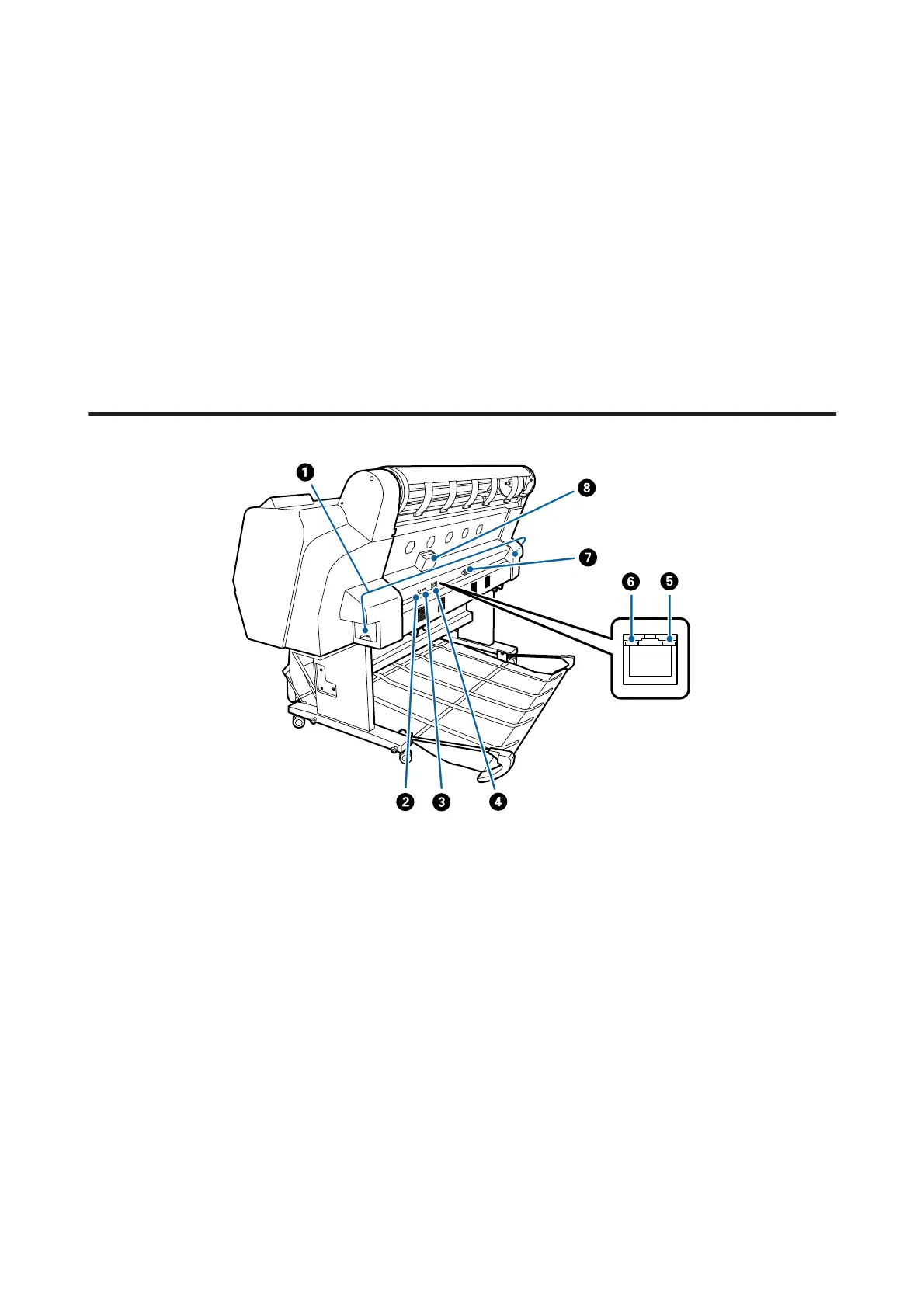

Back
A Maintenance Box
Absorbs waste ink. The SC-P9000 Series/SC-P8000 Series has one on the left and one on the right, and the
SC-P7000 Series/SC-P6000 Series has one on the right.
U “Replacing Maintenance Boxes” on page 134
B USB port
Connects the USB cable.
C Option port
Connects the optional SpectroProofer mounter or Auto Take-up Reel Unit (for the SC-P9000 Series/SC-P8000
Series only).
D LAN port
Connects the LAN cable.
SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide
Introduction
10
