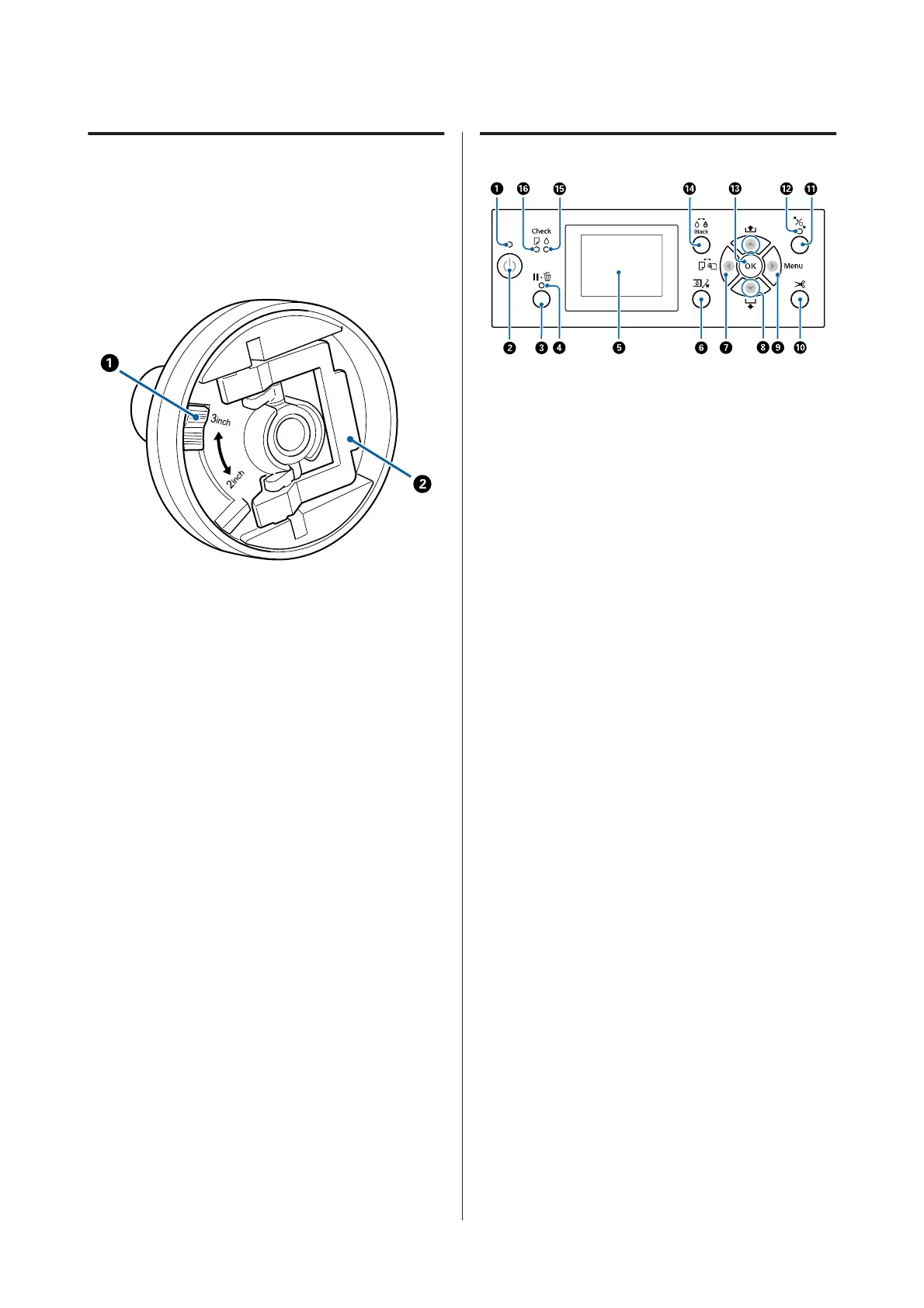

Roll paper adapter
Use the supplied roll paper adapter when loading roll
paper onto the printer.
U “Loading and Removing the Roll Paper” on
page 28
A Size lever
Position according to the size of the roll core.
B Adapter lock lever
Lift to unlock, lower to lock. Unlock when attaching
roll paper to the adapter, lock once the roll is
attached.
Control panel
A Power light
The printer’s operational status is indicated by a lit or
flashing light
On : The power is on.
Flashing : The printer is receiving data or cleaning the
print head or performing other operations
in the course of being shut down.
Off : The power is off.
B
Power button P
Turns the printer on or off.
C Pause/Cancel button W
❏ The printer enters pause status if this is pressed while
printing. To release the pause status, press the W
button again, or select Pause Cancel on the screen
and then press the Z button. To cancel print jobs
being processed, select Job Cancel on the screen and
then press the Z button.
❏ Pressing this button while a menu is displayed closes
the menu and returns the printer to ready status.
D Pause light
Indicates whether or not the printer is ready.
On : Cannot print. (The printer is paused, a job
is being canceled, a menu is displayed, an
error has occurred, and so on.)
Off : Ready to print.
E Screen
