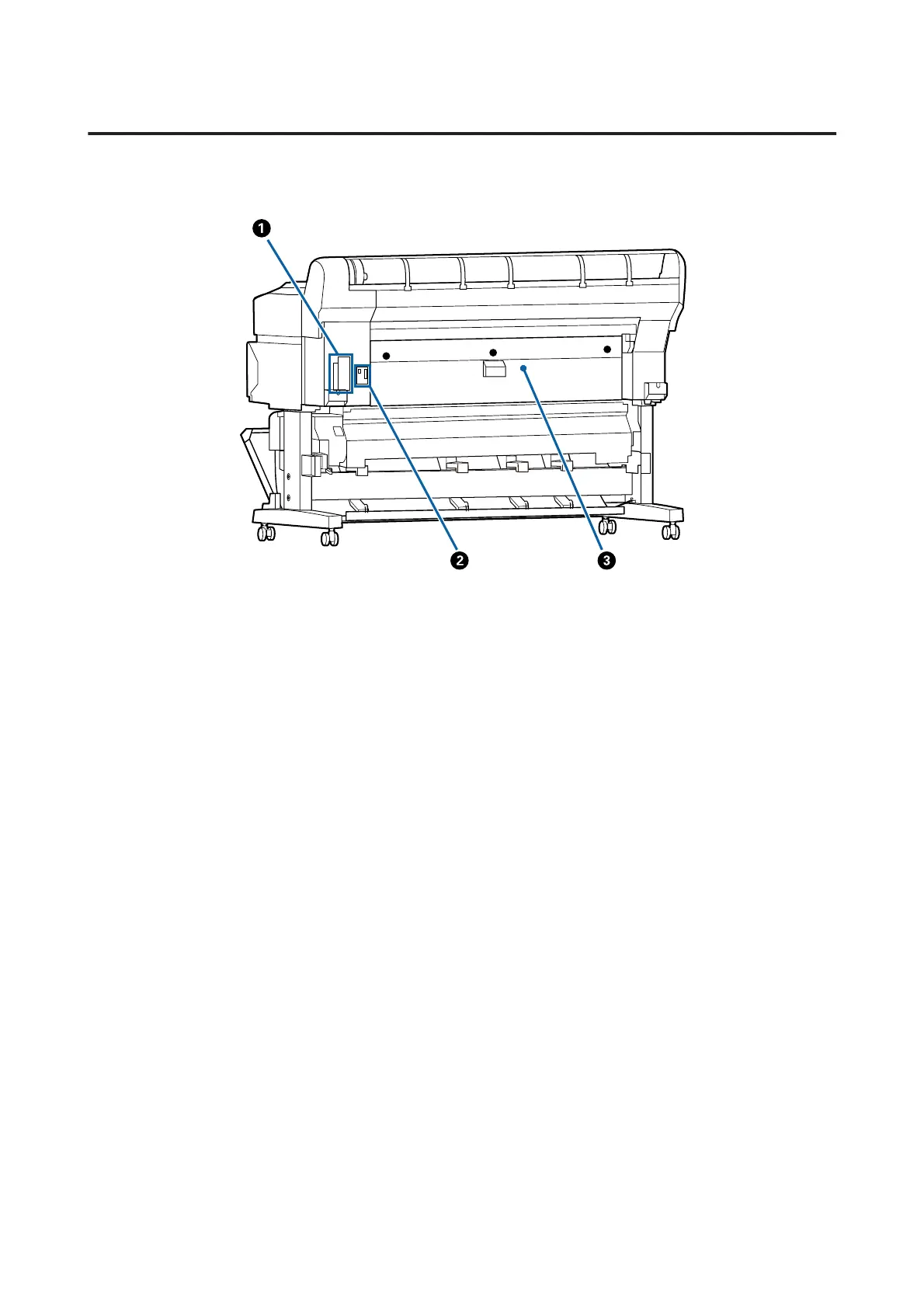

The illustration shows the SC-T7200D Series.
A Option slot
Slot to connect the optional hard disk unit or Adobe PostScript 3 Expansion Unit.
B Roll 2 unit connector
(SC-T7200D Series/SC-T5200D Series only)
Connect the connection cable of the Roll 2 unit.
Normally the cable is connected when using the printer.
C Rear cover
(SC-T7200D Series/SC-T5200D Series only)
When roll paper loaded to the Roll 2 unit is jammed, open the cover, and then remove the jammed paper.
Normally closed when using the printer.
U “Roll paper jam” on page 188
SC-T7200 Series/SC-T5200 Series/SC-T3200 Series/SC-T7200D Series/SC-T5200D Series User's Guide
Introduction
12

Table of Contents

Other manuals for Epson SC-T5200 Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Epson SC-T5200 Series and is the answer not in the manual?

Epson SC-T5200 Series Specifications

General IconGeneral
Memory1 GB
Print Resolution2880 x 1440 dpi
Print Speed28 seconds per A1 sheet
Paper SizesA0, A1, A2, A3+, A3, A4
Print Margin Roll3 mm (top, side, bottom)
InterfacesUSB 2.0, Ethernet
Hard Disk320 GB
Acoustic Noise50 dB(A)
Dimensions1405‎ x 813 x 1128 mm (Width x Depth x Height)
Ink ColorsCyan, Magenta, Yellow, Black
Media TypesPlain paper, Photo paper
Operating SystemsMac OS X 10.6.8 or later
