Epson SC-T5200 Series User Manual

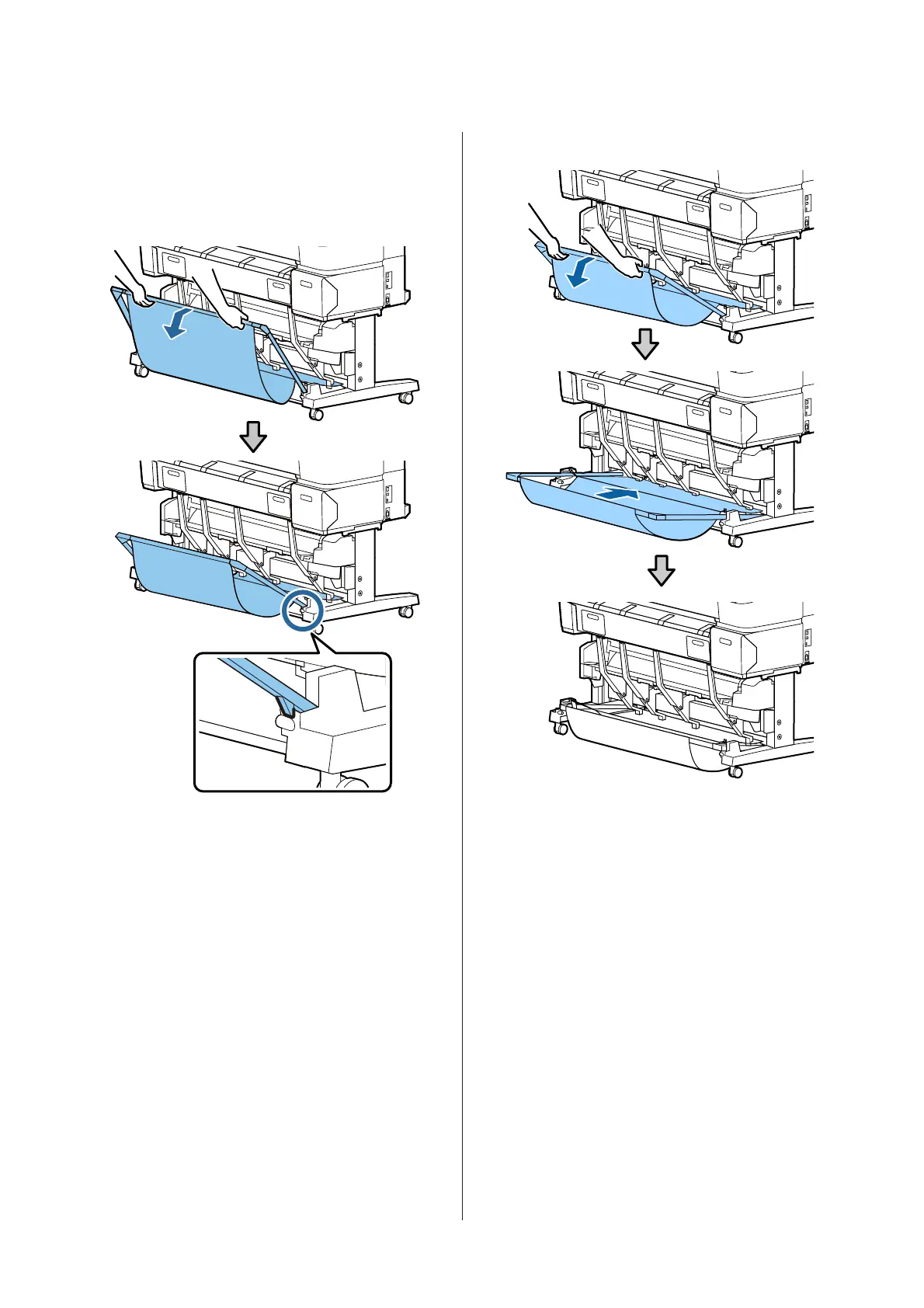

Large-capacity position
Pull the basket toward you slightly, and then lower it.
Lower the basket to the position in which it is fixed by
the upper protrusions of the left and right frames.
Horizontal position
Pull the basket toward you slightly, and then lower it.
Next, push it in straight.
To change the basket from the horizontal position to
another position, reverse the procedure above.
SC-T7200 Series/SC-T5200 Series/SC-T3200 Series/SC-T7200D Series/SC-T5200D Series User's Guide
Basic Operations
50

Epson SC-T5200 Series Specifications

General

Memory	1 GB
Print Resolution	2880 x 1440 dpi
Print Speed	28 seconds per A1 sheet
Paper Sizes	A0, A1, A2, A3+, A3, A4
Print Margin Roll	3 mm (top, side, bottom)
Interfaces	USB 2.0, Ethernet
Hard Disk	320 GB
Acoustic Noise	50 dB(A)
Dimensions	1405‎ x 813 x 1128 mm (Width x Depth x Height)
Ink Colors	Cyan, Magenta, Yellow, Black
Media Types	Plain paper, Photo paper
Operating Systems	Mac OS X 10.6.8 or later
