G Print tray/Large print tray (optional)
Holds the ejected print outs.
U “Attaching and Removing the Print Tray” on page 43
H Cartridge cover (right)
Open when replacing ink cartridges or the maintenance cartridge.
U “Replacing Ink Cartridges” on page 47
U “Replacing the Maintenance Cartridge” on page 55

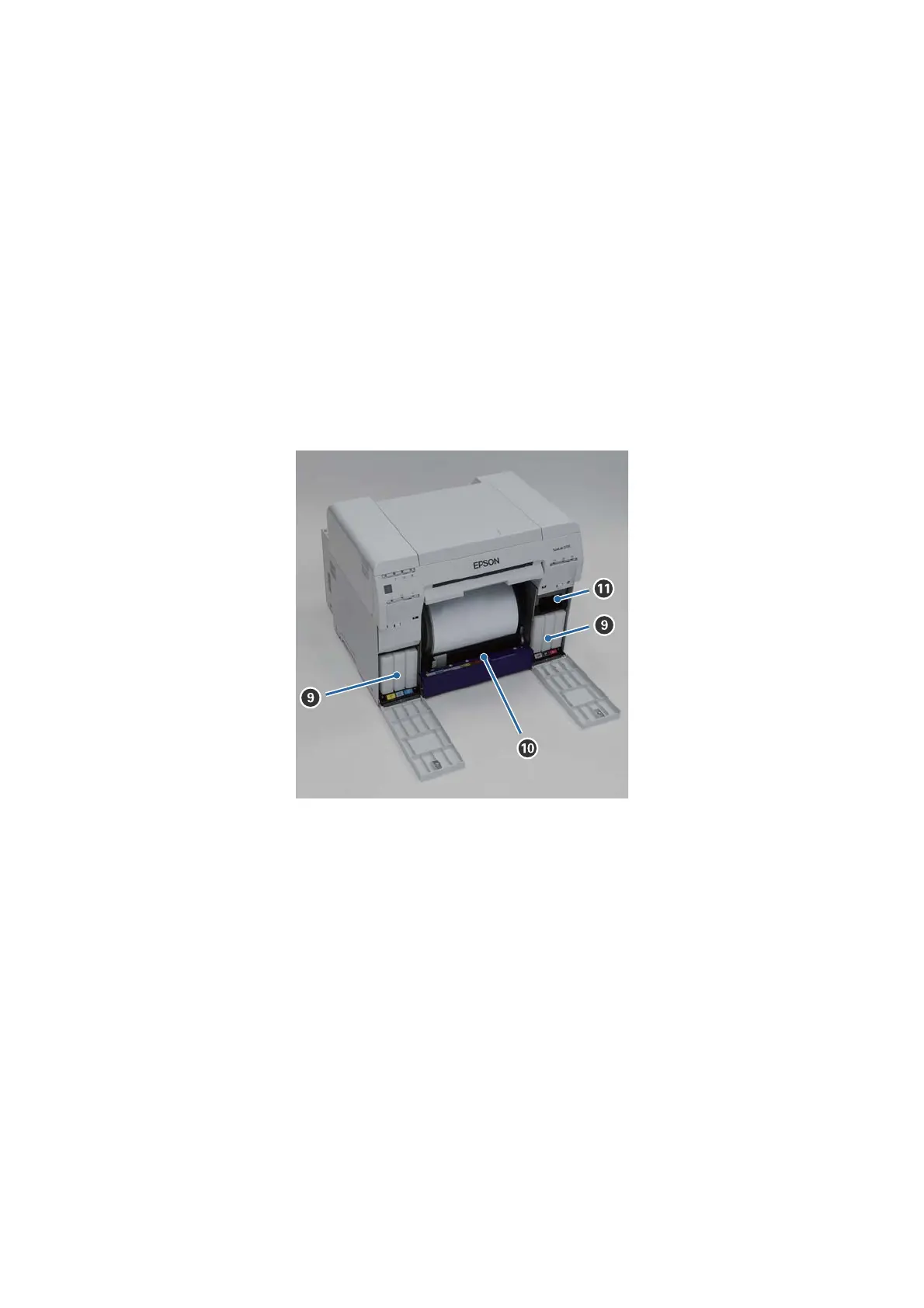

When the scrap paper box is removed and the cartridge cover is open
I Ink cartridges
Install six color ink cartridges.
J Roll paper feeder
Pull it to the front when removing the spindle unit.
K Maintenance Cartridge
Container that holds the waste ink fluid.
U “Replacing the Maintenance Cartridge” on page 55
SL-D700 Operation Guide
Introduction
7
