EPSON Stylus Color 440/640/740 Revision A
Chapter 5 Adjustment 134
5.2.2 Adjustment by Adjustment Program
In this printer, it is necessary to set the correct information for each
printer mechanism in order to maintain consistent printing function and
quality, eliminating difference of each printer mechanism's
characteristics.
Therefore, in case that the combination of the printer mechanism and
main board changes or the printhead is replaced during repair, you
must set and save the correct information to the main board, using the
exclusive adjustment program.
5.2.2.1 About Adjustment Program
The adjustment program (Program name:SC440.EXE, SC640.EXE,
SC740.EXE) enables you to set various values correctly to prevent
malfunction and fluctuation of printing quality and printing function
caused by difference in components and assembly when the printer
components are replaced during repair. Basic adjustment procedure by
using this program are shown in the right column.
The flowchart below shows the steps to follow before entering the main
menu.

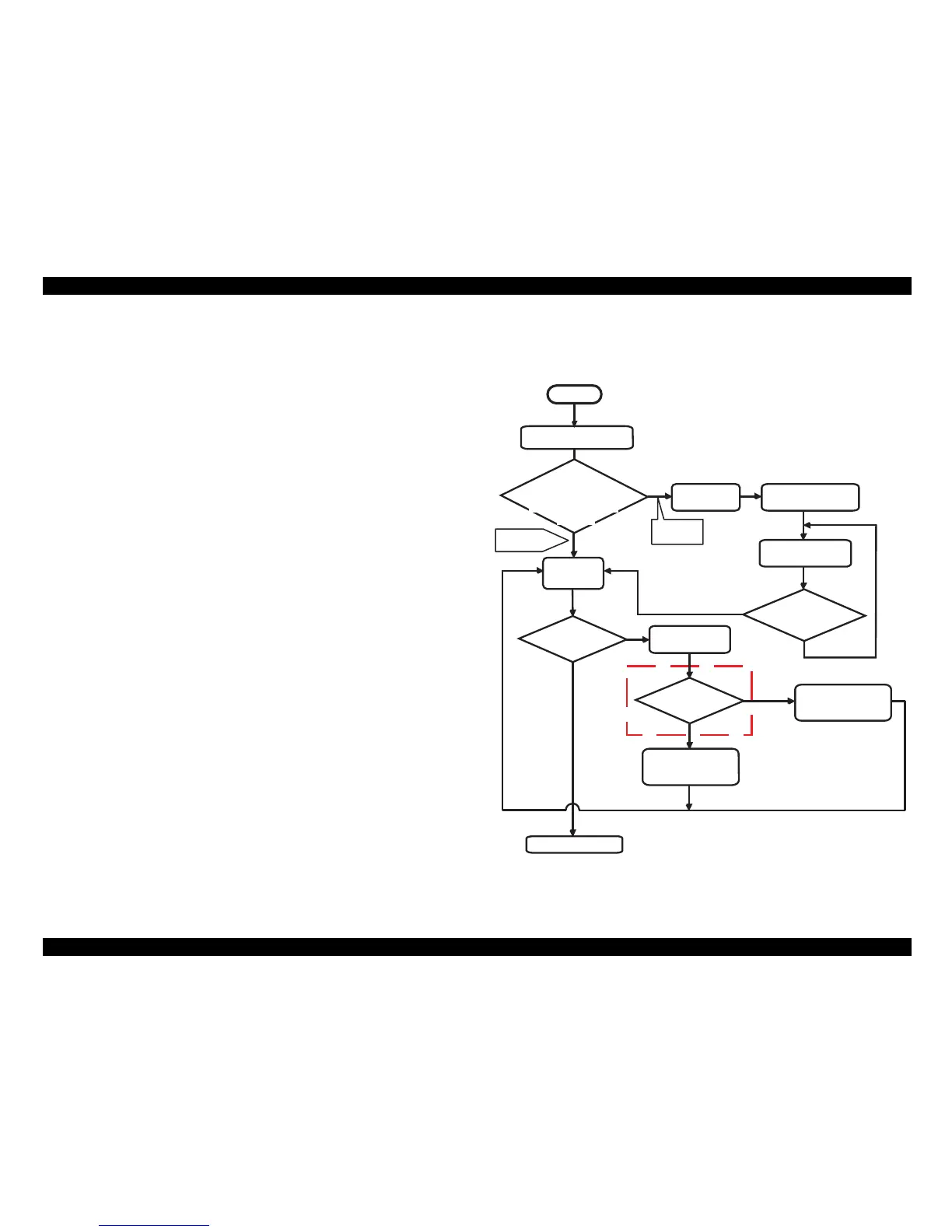

Figure 5-4. Interface Flow of Adjustment Program
Model Name confirmation
by using Nibble-mode.
Start
"Not
registored."
"Is the model
name correct?"
Type "E" while
pressing the Alt key.
You must type the
model name correctly.
The model
name has been
typed correctly?
Message:
"Not registered"
Yes
Message:
"Is the model
name correct?"
No
to Retype mode
Select "Yes" or "No".
Yes
No
Destination and CG
table change mode
NLSP or Standard?
Standard
NLSP
Setting the Destination
to World and CG table
to the Standard ver.
Setting the Destination
to World and CG table
to the NLSP ver.
To the Main menu
Which is the
message on the screen,
"Model name is not registored ."
*:
This prompt is only available for
Stylus Color 640 and 740. However,
Stylus Color 640 has no CG on the
C256 Main board, so that you can
not print out the NLSP characters.
or "Is the model name
correct?"
To Next Page
