Epson surecolor p5000 User Manual

22

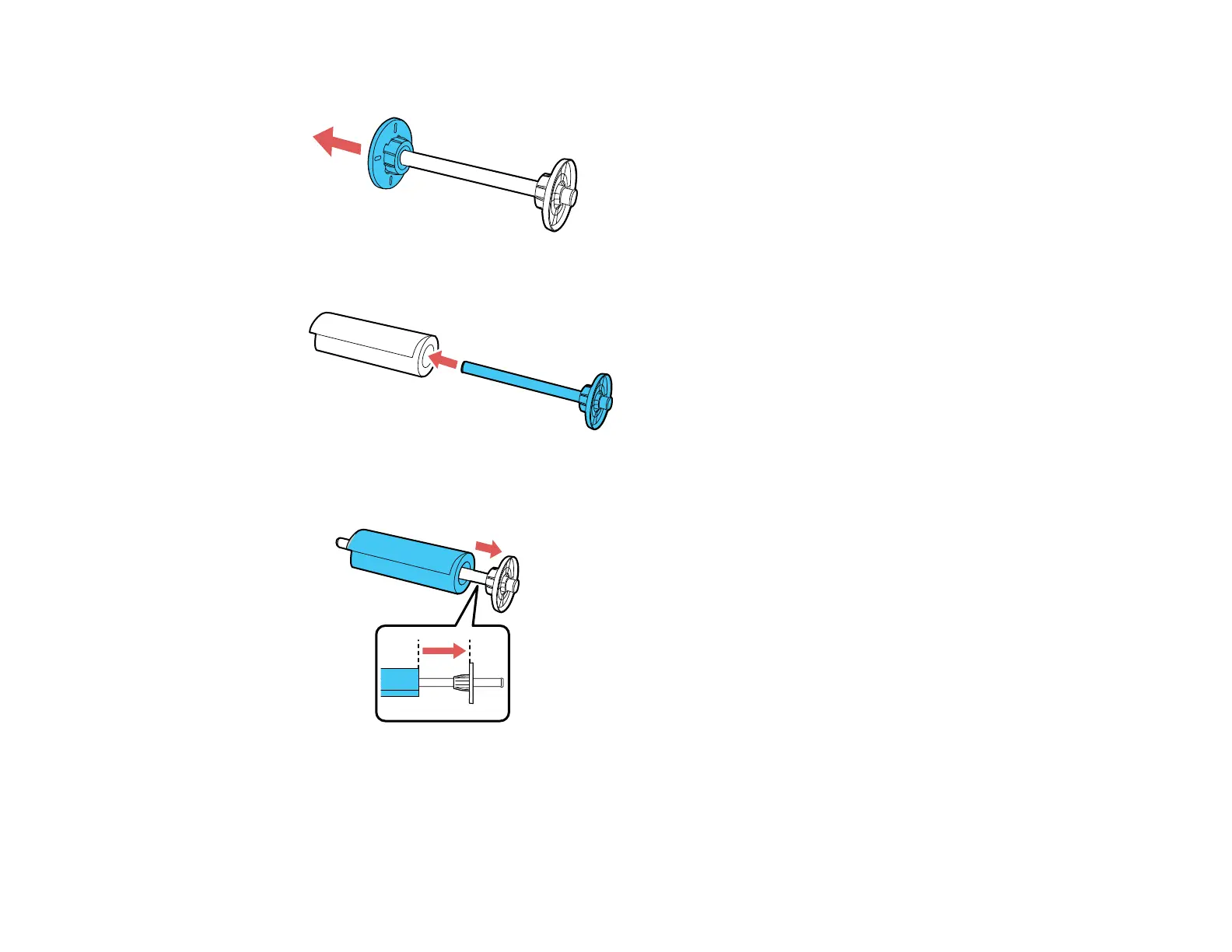

2. Remove the black paper stop from the spindle.
3. Insert the spindle into the roll paper core so that the end of the roll paper is facing towards you.
4. Press the roll paper against the fixed paper stop until that there is no gap between the paper stop
and the roll paper.

Epson surecolor p5000 Specifications

General

Display	LCD
Product color	Black
Built-in display	Yes
Sound pressure level (printing)	47 dB
Print technology	Inkjet
Maximum resolution	2880 x 1440 DPI
Page description languages	ESC P
Media thickness	1.5 mm
Roll top margin	3 mm
Maximum print size	-
Power consumption (standby)	20 W
Power consumption (typical)	52 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	-20 - 40 %
Operating relative humidity (H-H)	45 - 60 %
Maximum input capacity	250 sheets
USB connector	USB Type-A
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	766 mm
Width	863 mm
Height	405 mm
